Product Family Overview


Hefti-Lifts
SERIES: HYD

The Hefti-Lift units provide reliable powerful lifting when moving and positioning loads. The manual hydraulic foot pump yields 3/4" of platform travel per stroke, auto-shift models feature a two speed foot pump.The units roll smoothly on two rigid and two swivel poly-on-steel casters with foot operated brake. The units are designed of welded steel construction with chrome platforms and uprights (except model HYD-10-DA-SS) Each fork is 4-1/2"W x 2-1/2"H, the fork length is the same as the platform length. Overall fork width is 22". Not for use with pallets. Stainless Steel units are compact, lightweight, and capable of turning in a small radius when space is limited. A built-in automatic load check valve is included for improved safety. Model HYD-5-SS features a hydraulic foot pump, while model HYD-10-DA-SS comes with a dual acting manual hydraulic hand pump.

Air Powered units are great in manufacturing or distributing facilities when space is limited. The single speed foot pump and hand held push button control (reciprocating air/oil power) raise forks to the desired location. The foot pump can be utilized to maneuver the table height to a precise position. The unit requires a minimum hose diameter of 1/4" and air pressure of 72 to 100 psi.

The Hefti-Lift units provide reliable powerful lifting when moving and positioning loads. The manual hydraulic foot pump yields 3/4" of platform travel per stroke, auto-shift models feature a two speed foot pump.The units roll smoothly on two rigid and two swivel poly-on-steel casters with foot operated brake. The units are designed of welded steel construction with chrome platforms and uprights (except model HYD-10-DA-SS) Each fork is 4-1/2"W x 2-1/2"H, the fork length is the same as the platform length. Overall fork width is 22". Not for use with pallets. Stainless Steel units are compact, lightweight, and capable of turning in a small radius when space is limited. A built-in automatic load check valve is included for improved safety. Model HYD-5-SS features a hydraulic foot pump, while model HYD-10-DA-SS comes with a dual acting manual hydraulic hand pump.

Air Powered units are great in manufacturing or distributing facilities when space is limited. The single speed foot pump and hand held push button control (reciprocating air/oil power) raise forks to the desired location. The foot pump can be utilized to maneuver the table height to a precise position. The unit requires a minimum hose diameter of 1/4" and air pressure of 72 to 100 psi.

Additional Models In This Family

Model Specific Details


All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
The Search Box below is within the Model Chart for this Product Family (on this current page). Not an entire site search.
Model # Description Attributes Net Wt.
(lbs)

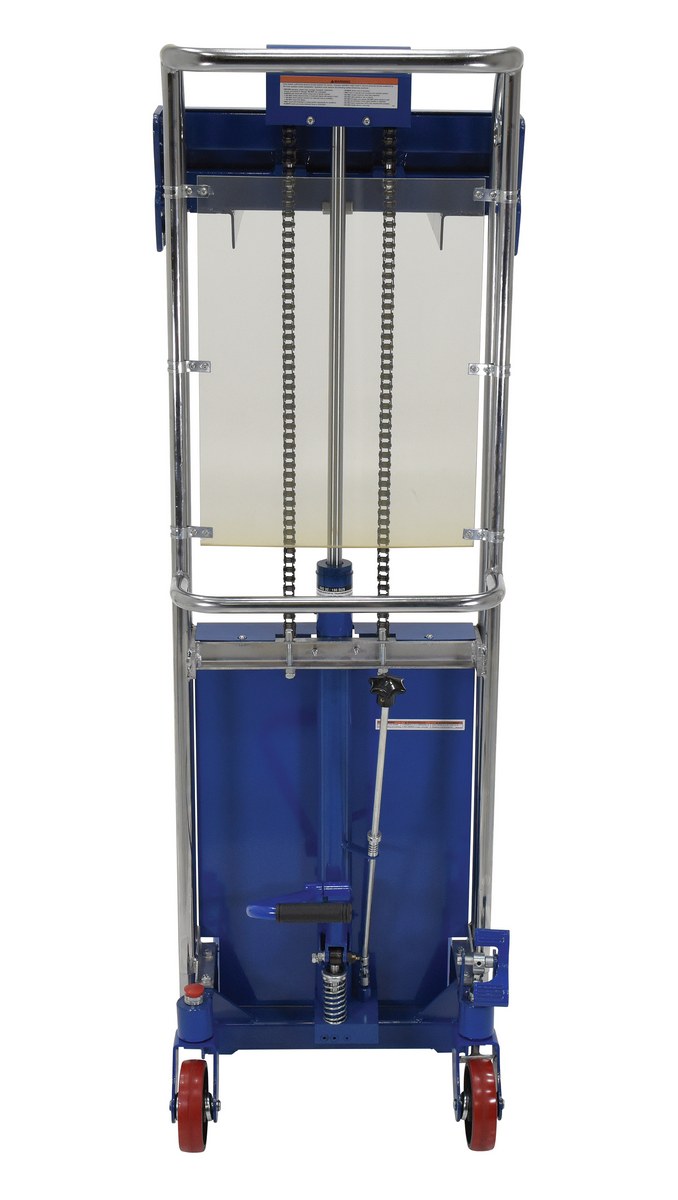

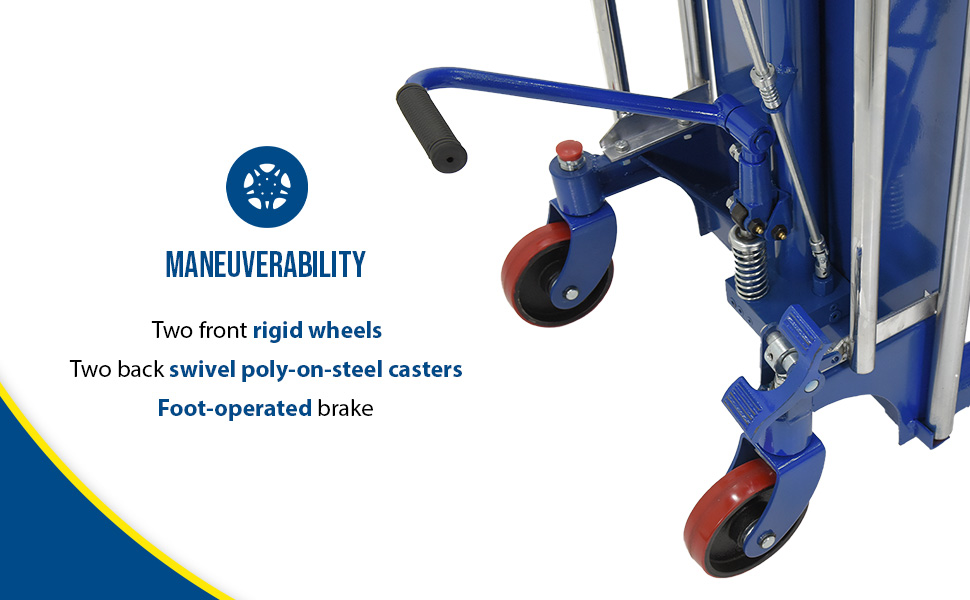

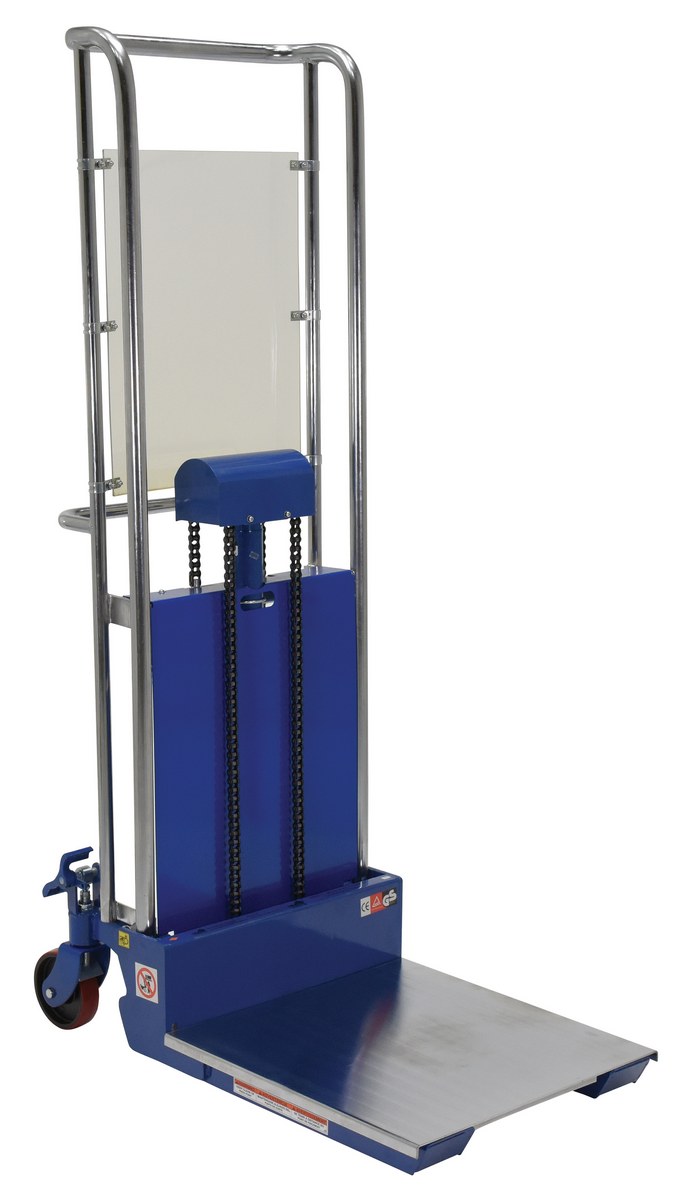

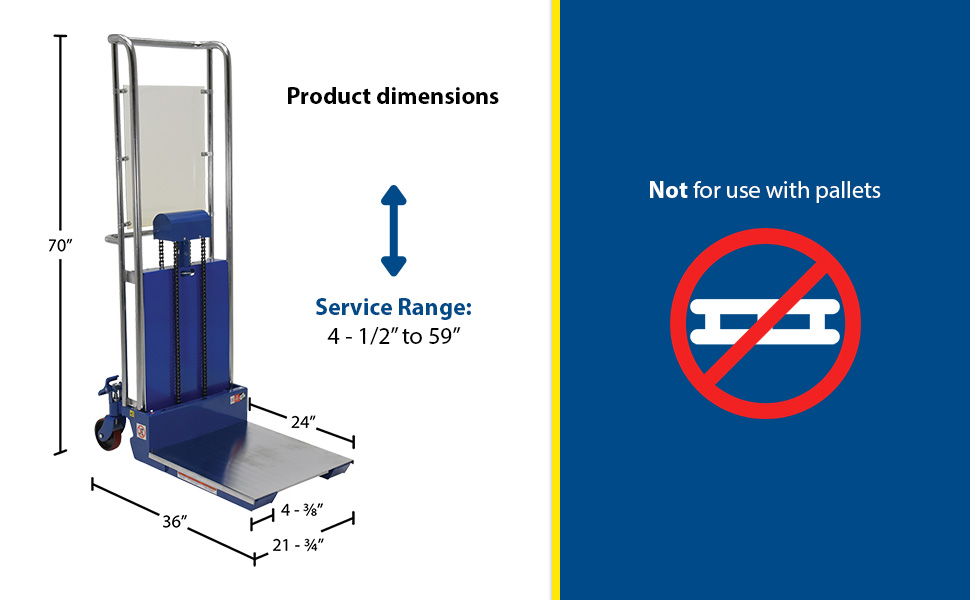

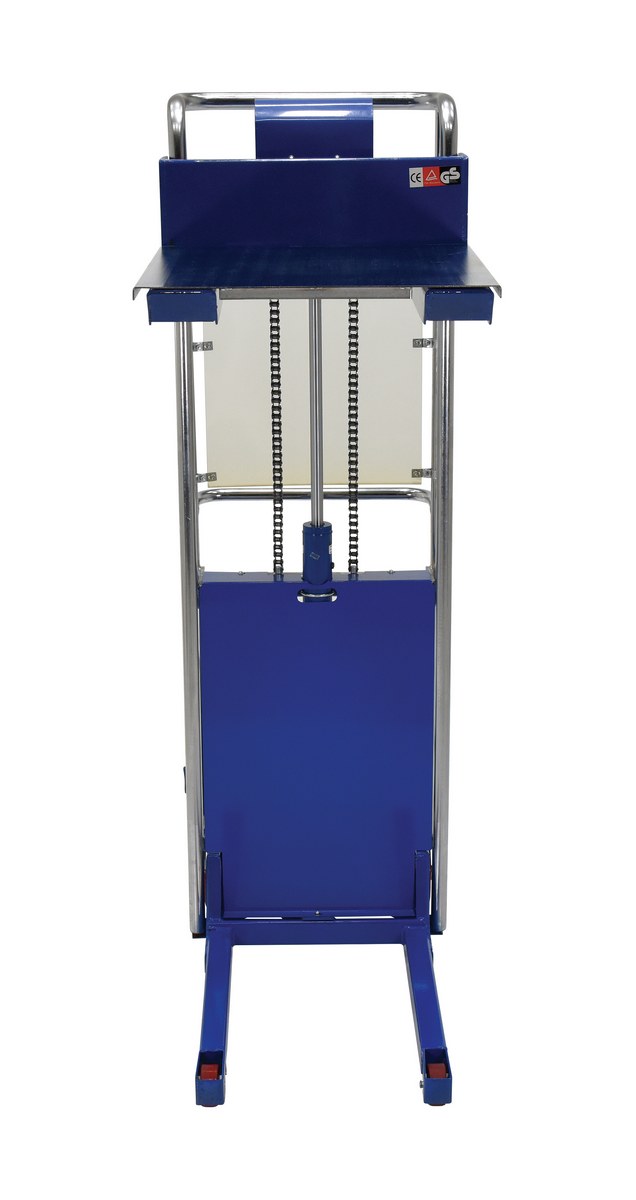

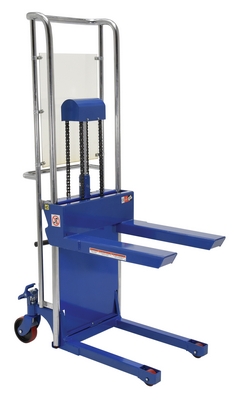

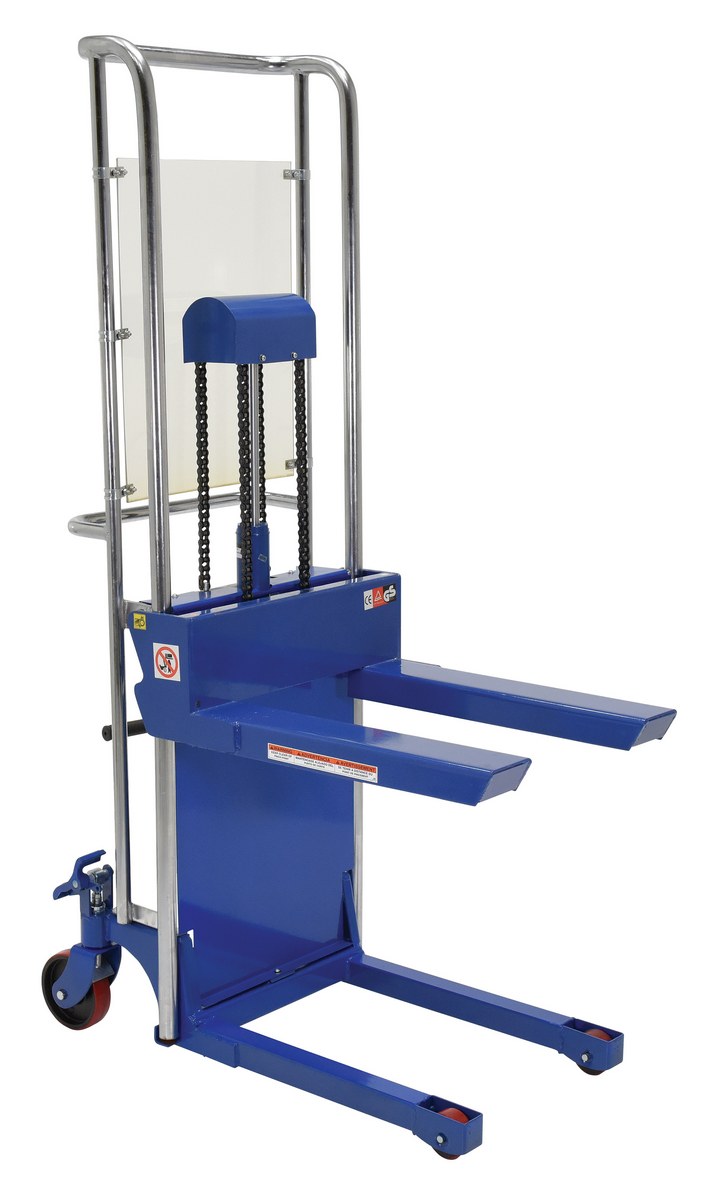

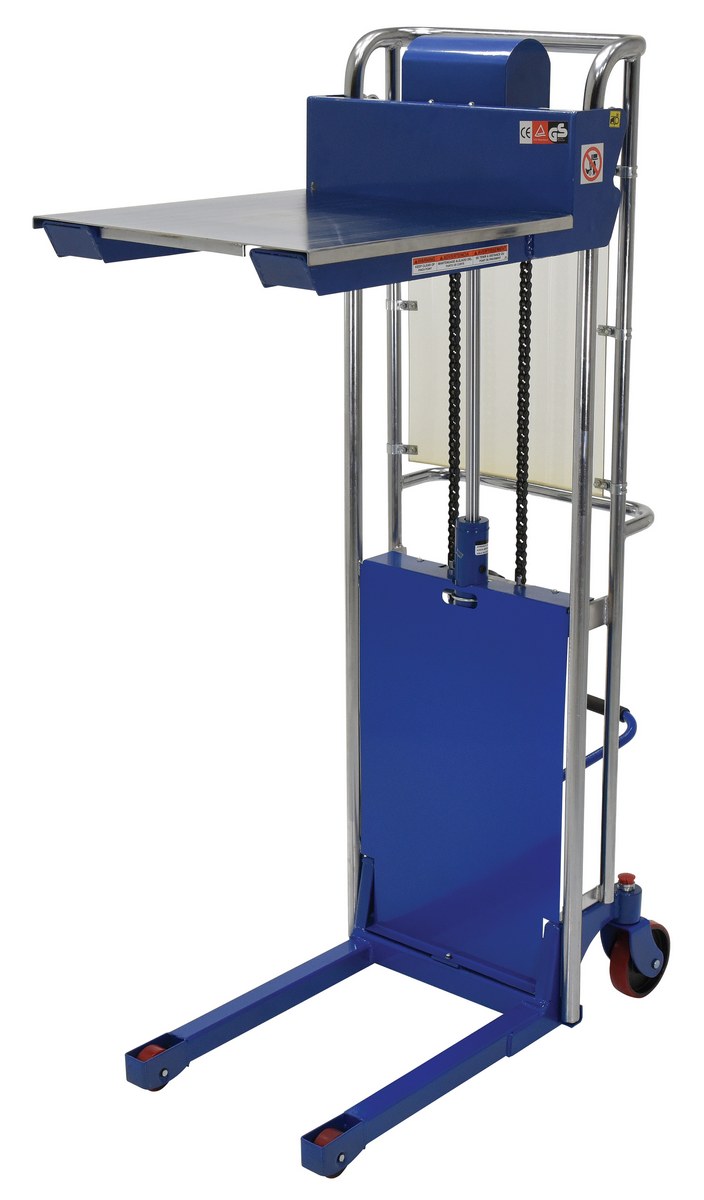

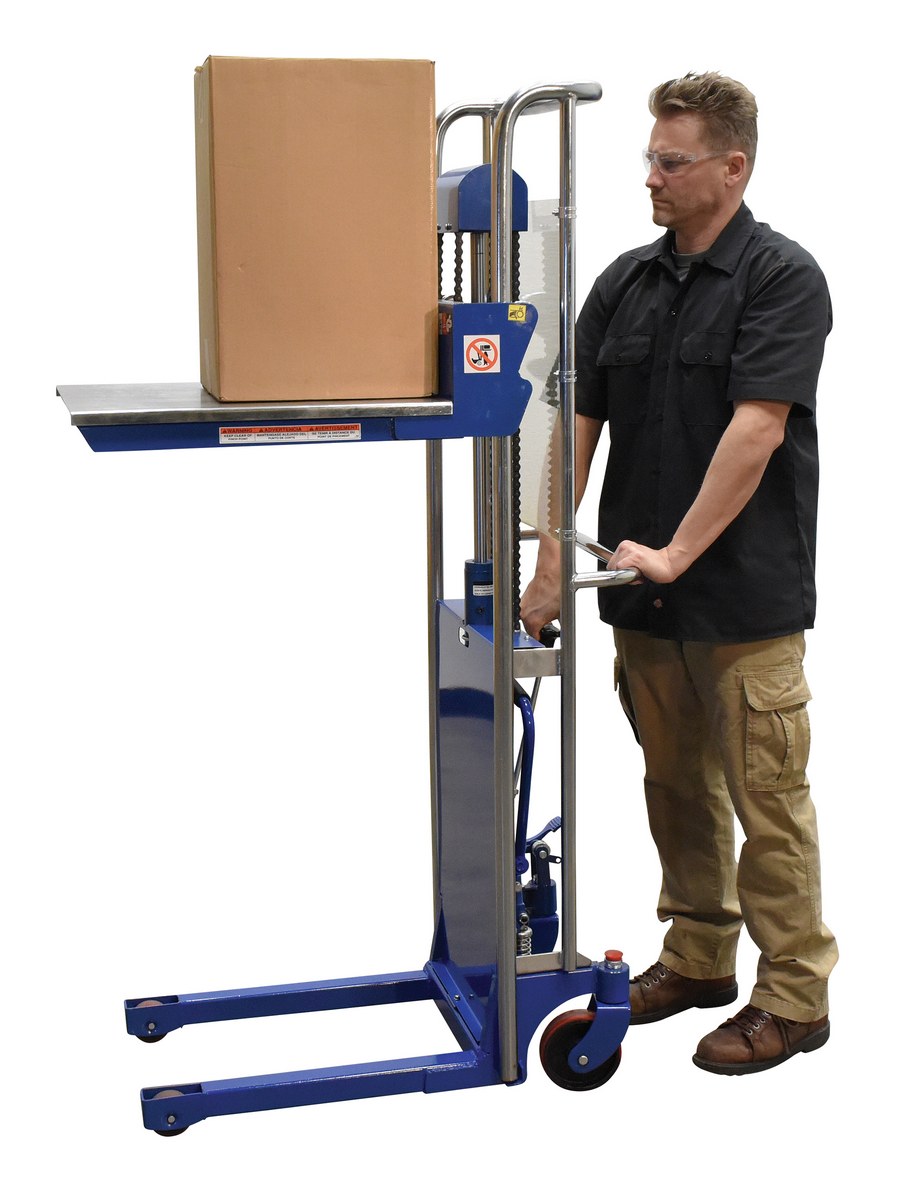

HYD-10 HYD-1090 Days Limited WarrantySteel Portable Foot Pump Hefti-Lift 41 In. x 69 In. 880 Lb. Capacity BlueUniform Capacity (lb.): 880
Platform Width/Length (in.): 23 x 24
280
HYD-10-AIR

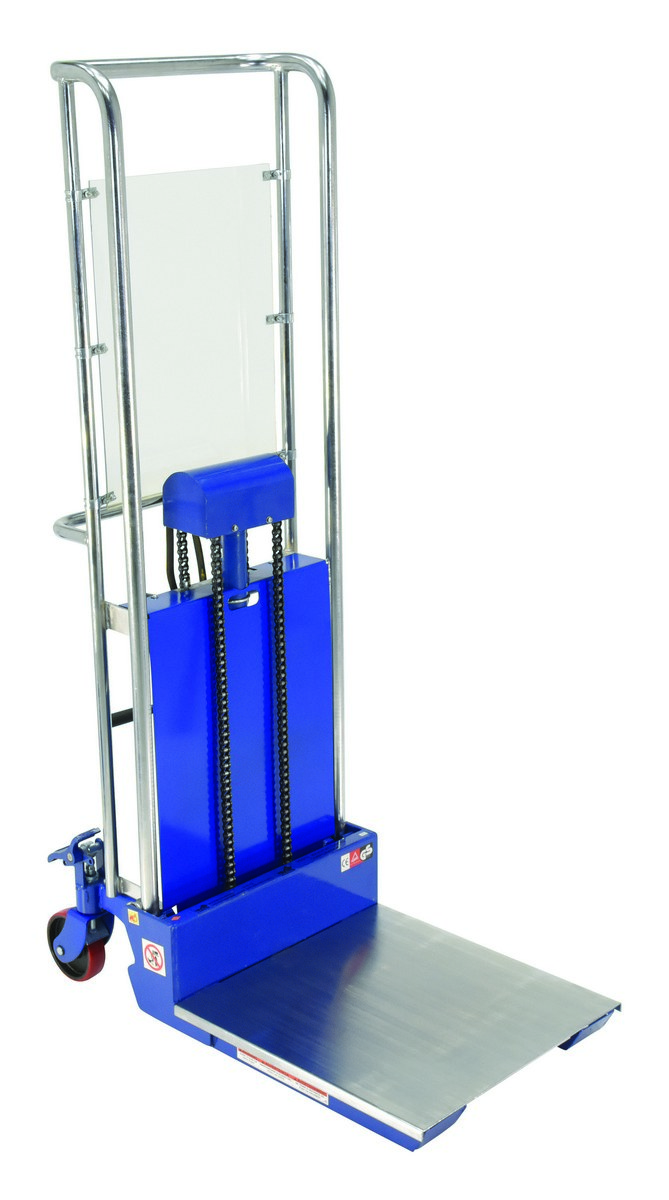

HYD-10-AIR90 Days Limited WarrantySteel Portable Air Foot Pump Hetti-Lift 41 In. x 69 In. 880 Lb. Capacity BlueUniform Capacity (lb.): 880
Platform Width/Length (in.): 23 x 24
295
HYD-10-AS HYD-10-AS90 Days Limited WarrantySteel Portable Two Speed Foot Pump Hefti-Lift 36 In. x 70 In. 880 Lb. Capacity BlueUniform Capacity (lb.): 880
Platform Width/Length (in.): 23 x 24
321

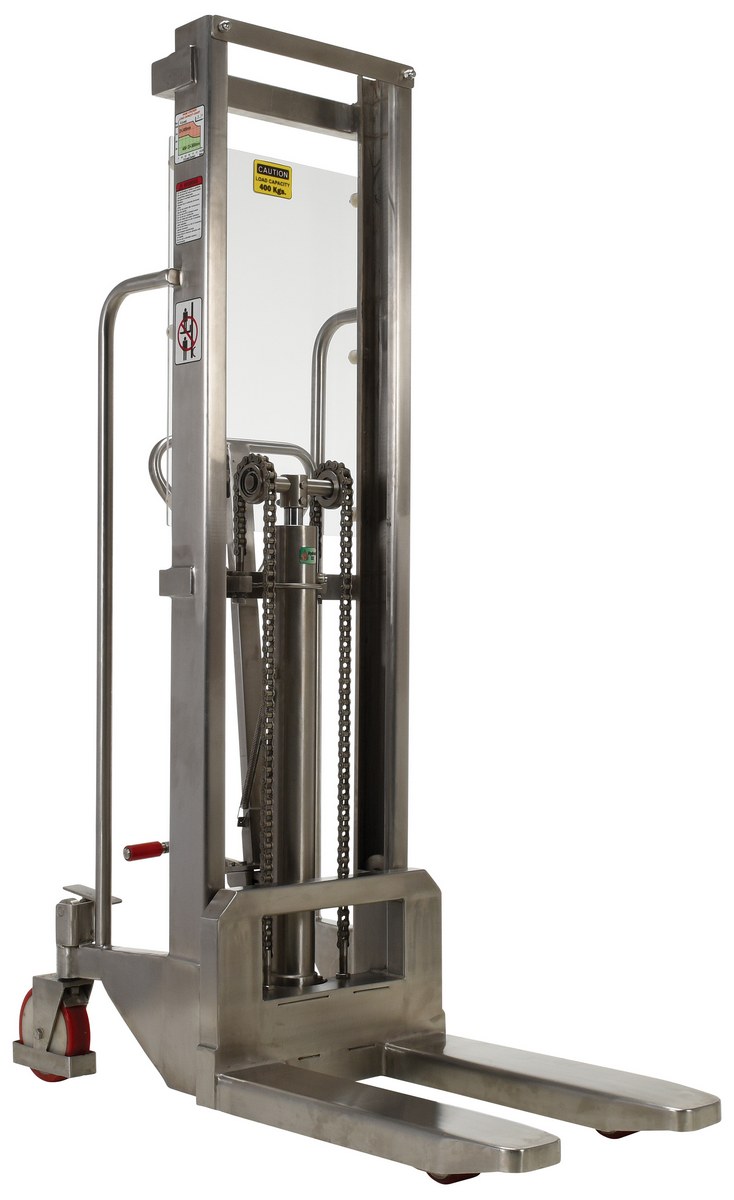

HYD-10-DA-SS

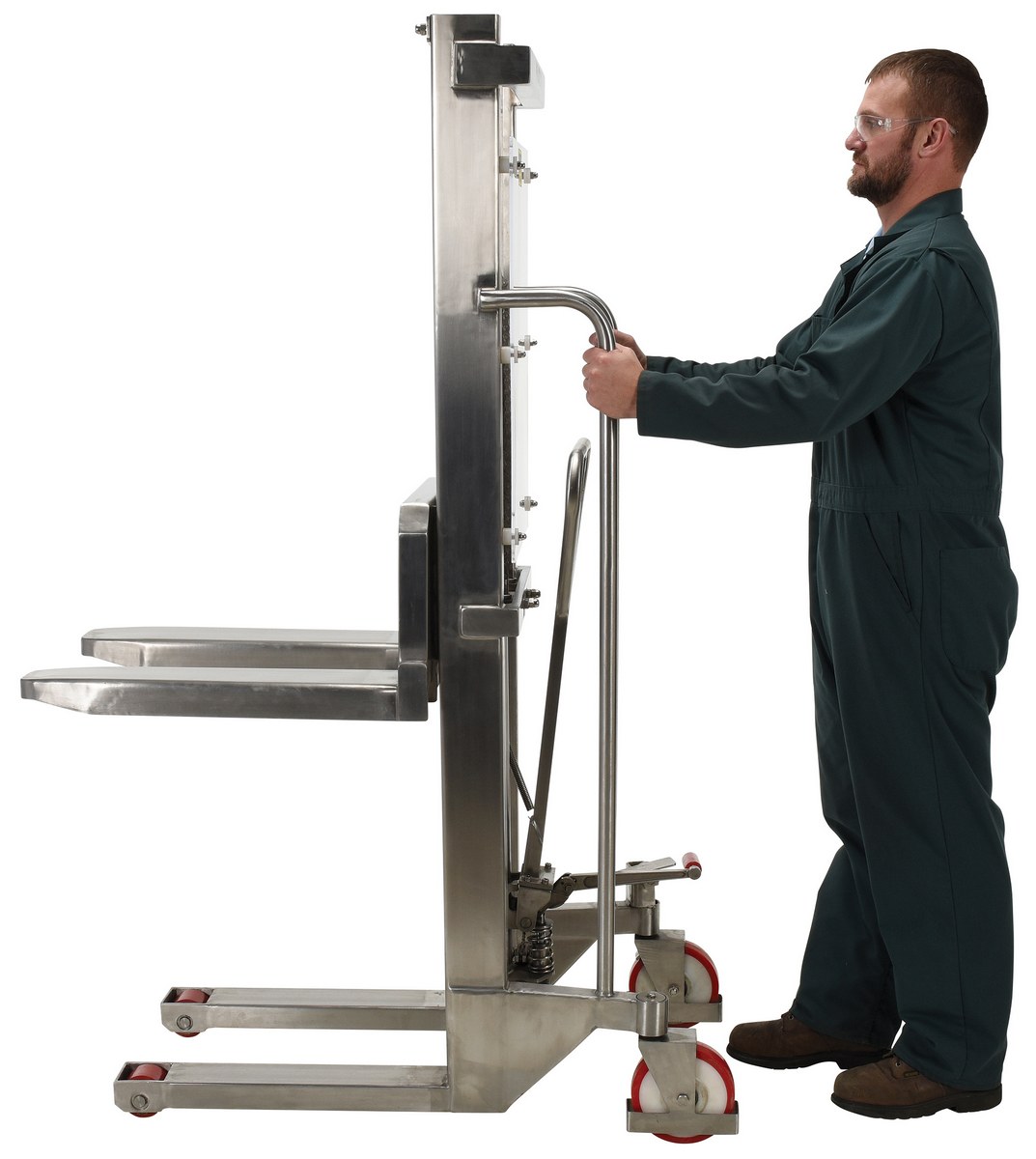

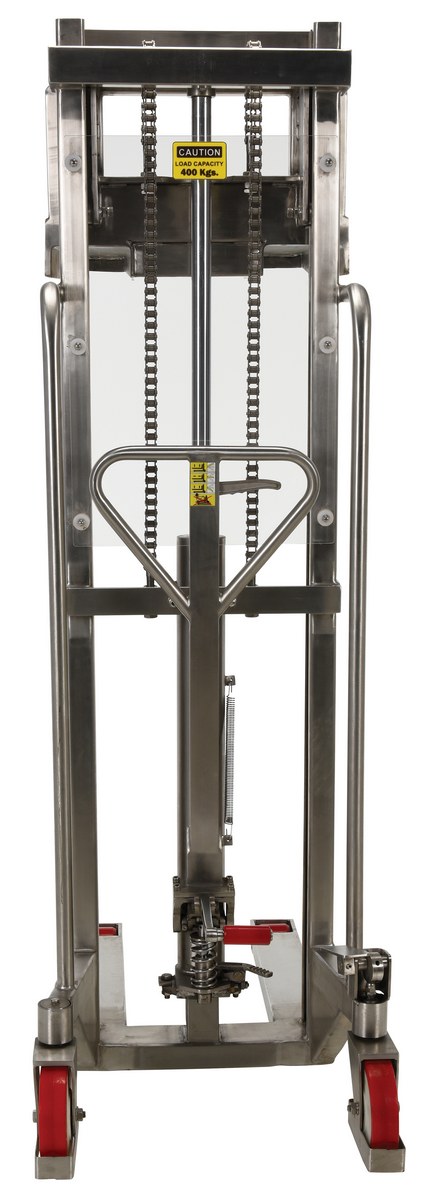

HYD-10-DA-SS90 Days Limited WarrantyStainless Steel Portable Hand Pump Hefti-Lift 48 In. x 74 In. 800 Lb. Capacity SilverUniform Capacity (lb.): 800
Service Range (in.): 3-1/8 x 59
354

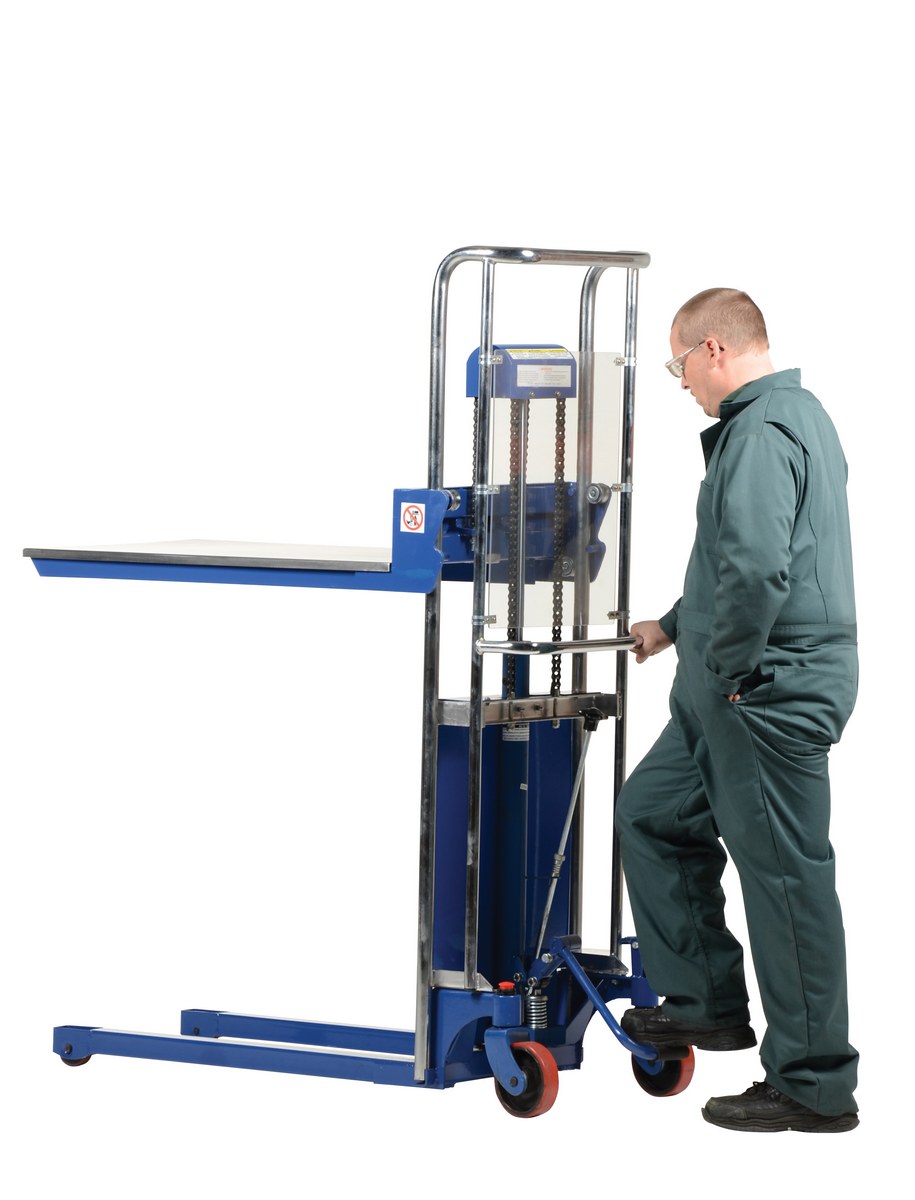

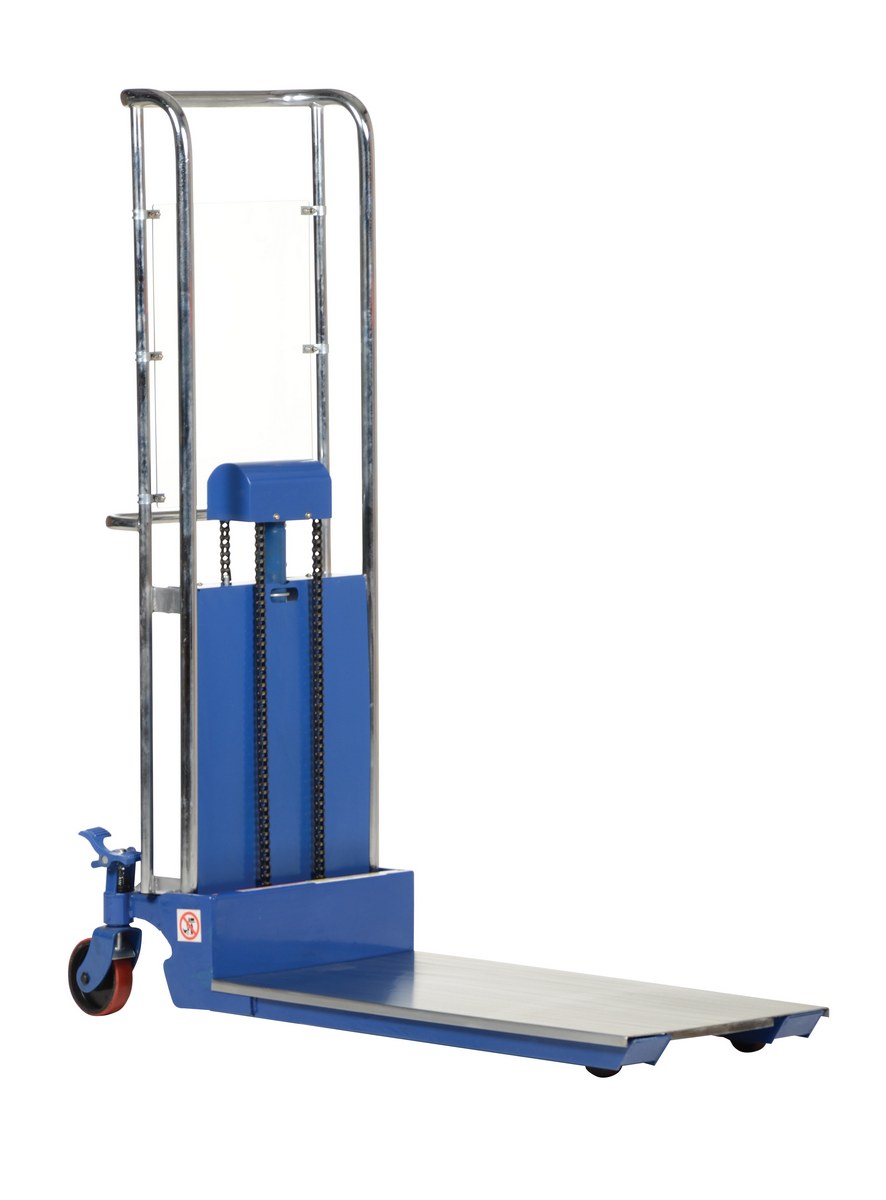

HYD-10-EP HYD-10-EP90 Days Limited WarrantySteel Portable Foot Pump Hefti-Lift 57 In. x 69 In. 300 Lb. Capacity BlueUniform Capacity (lb.): 300
Platform Width/Length (in.): 23 x 40
308

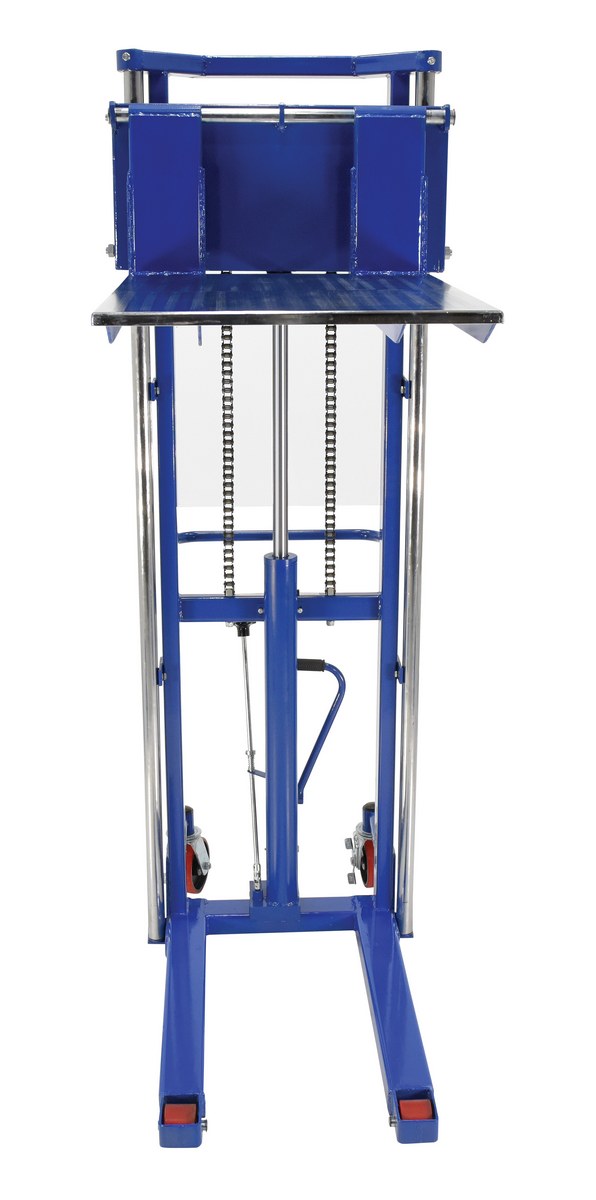

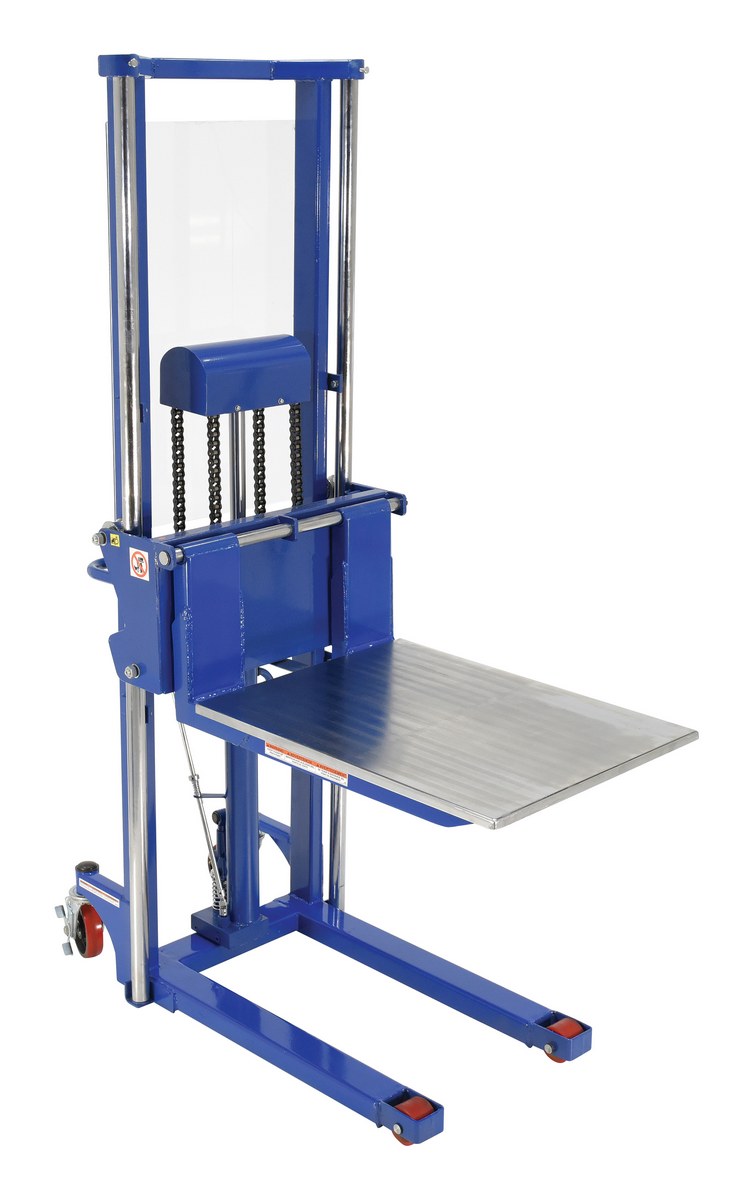

HYD-15 HYD-1590 Days Limited WarrantySteel Portable Foot Pump Hefti-Lift 51 In. x 79-3/8 In. 1500 Lb. Capacity BlueUniform Capacity (lb.): 1500
Platform Width/Length (in.): 23 x 31-1/2
479

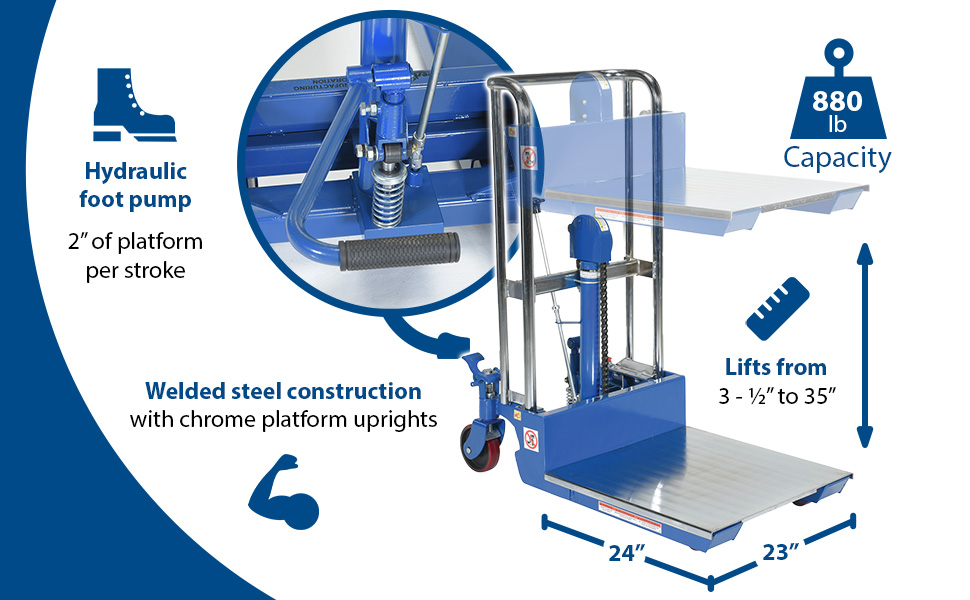

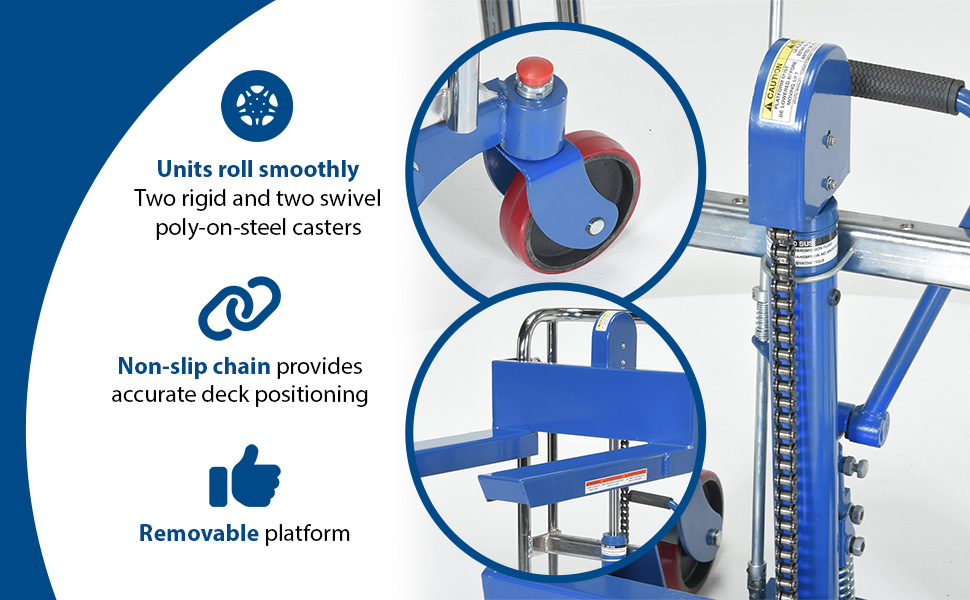

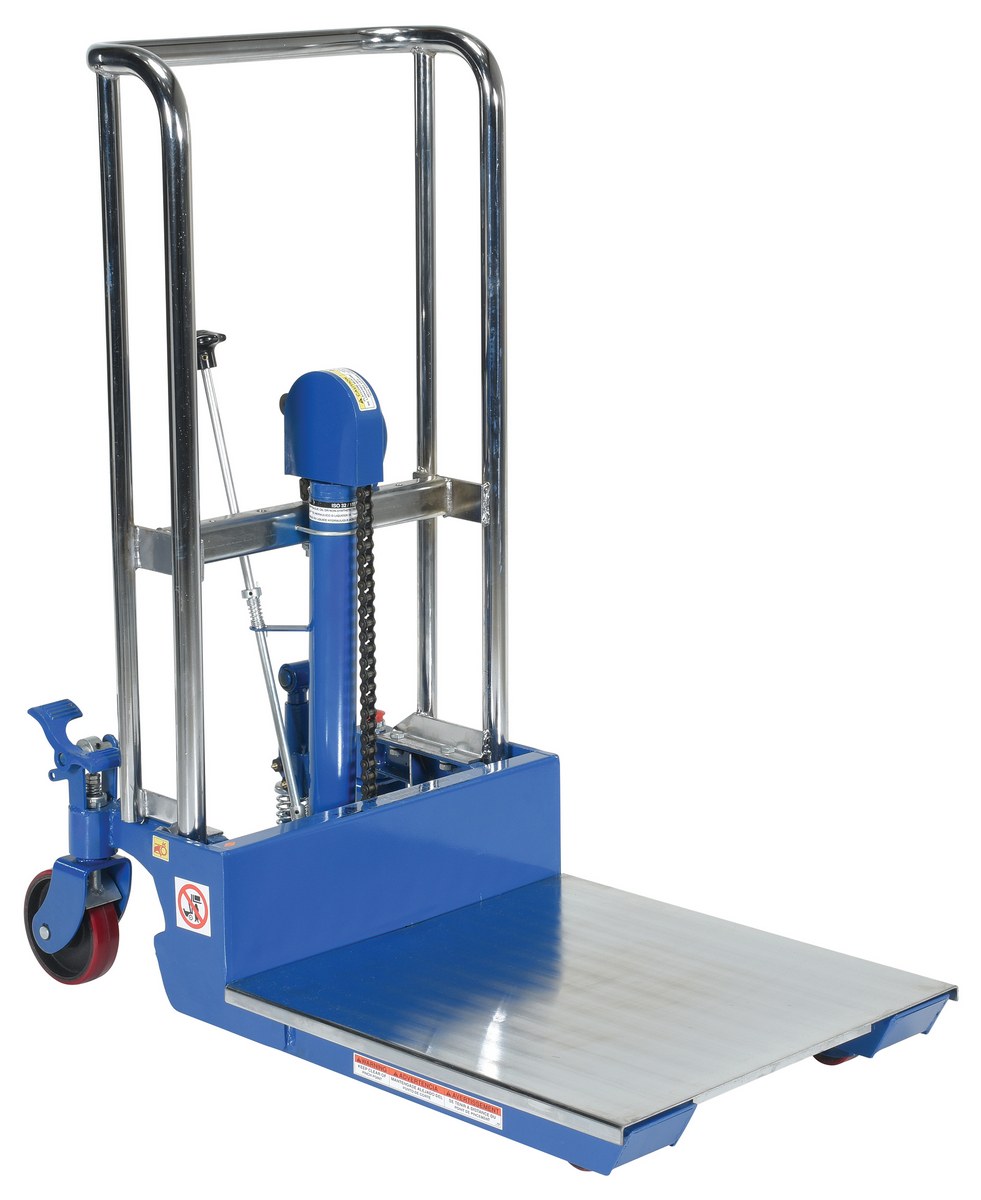

HYD-3 HYD-390 Days Limited WarrantySteel Portable Welded Hydraulic Hefti-Lift 880 Lb. Capacity BlueUniform Capacity (lb.): 880
Platform Width/Length (in.): 23 x 24
235

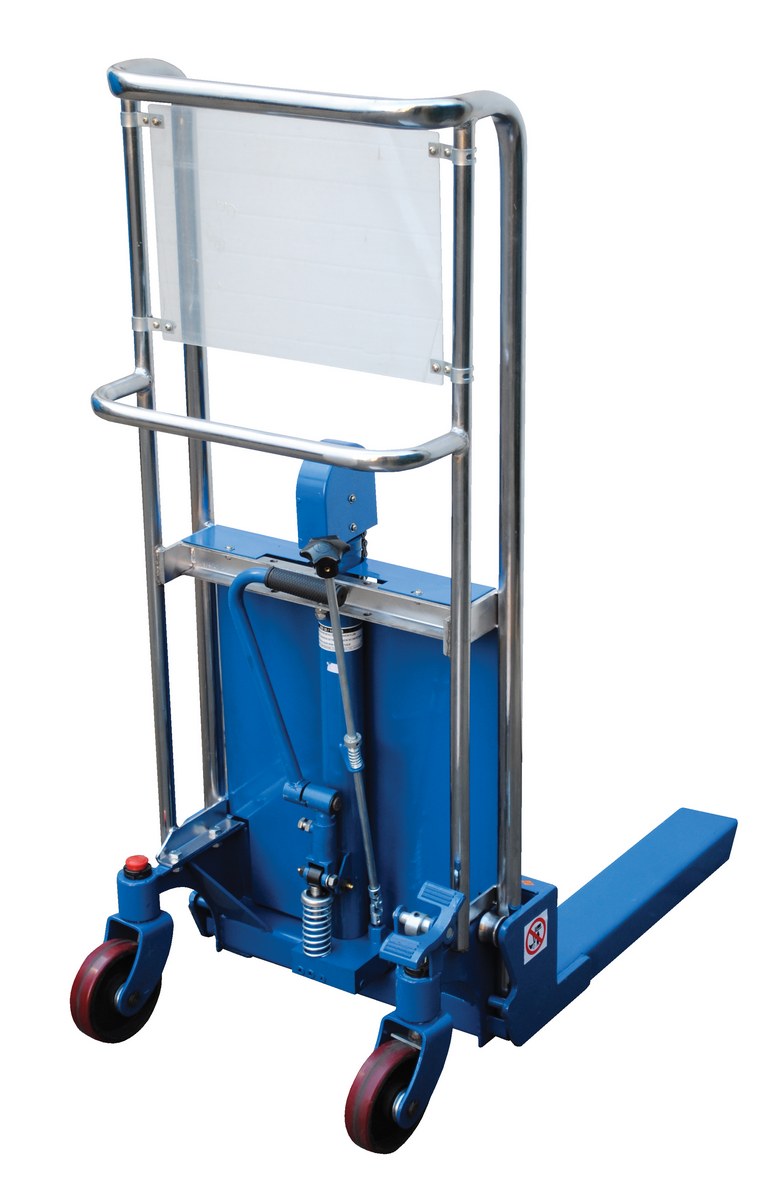

HYD-5 HYD-590 Days Limited WarrantySteel Portable Foot Pump Hefti-Lift 41 In. x 54 In. 880 Lb. Capacity BlueUniform Capacity (lb.): 880
Platform Width/Length (in.): 23 x 24
246

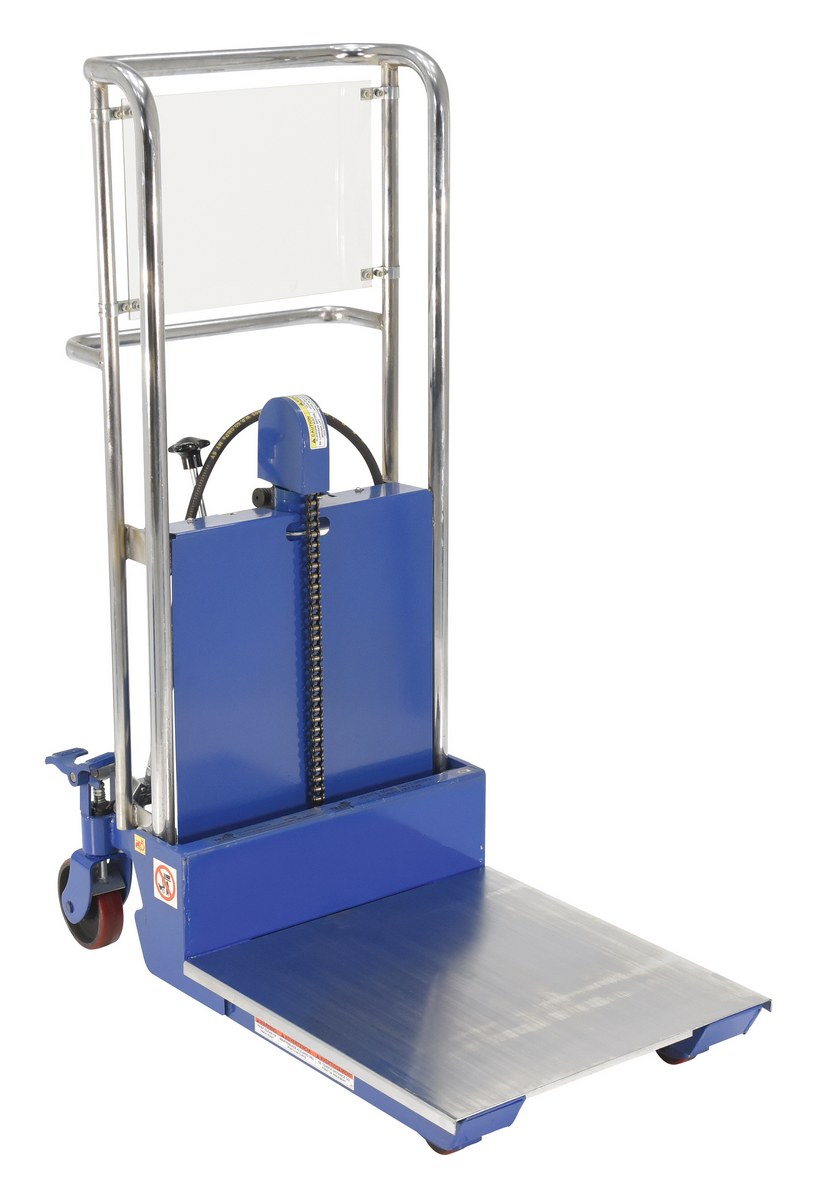

HYD-5-AIR HYD-5-AIR90 Days Limited WarrantySteel Portable Air Foot Pump Hefti-Lift 41 In. x 54 In. 880 Lb. Capacity BlueUniform Capacity (lb.): 880
Platform Width/Length (in.): 23 x 24
261

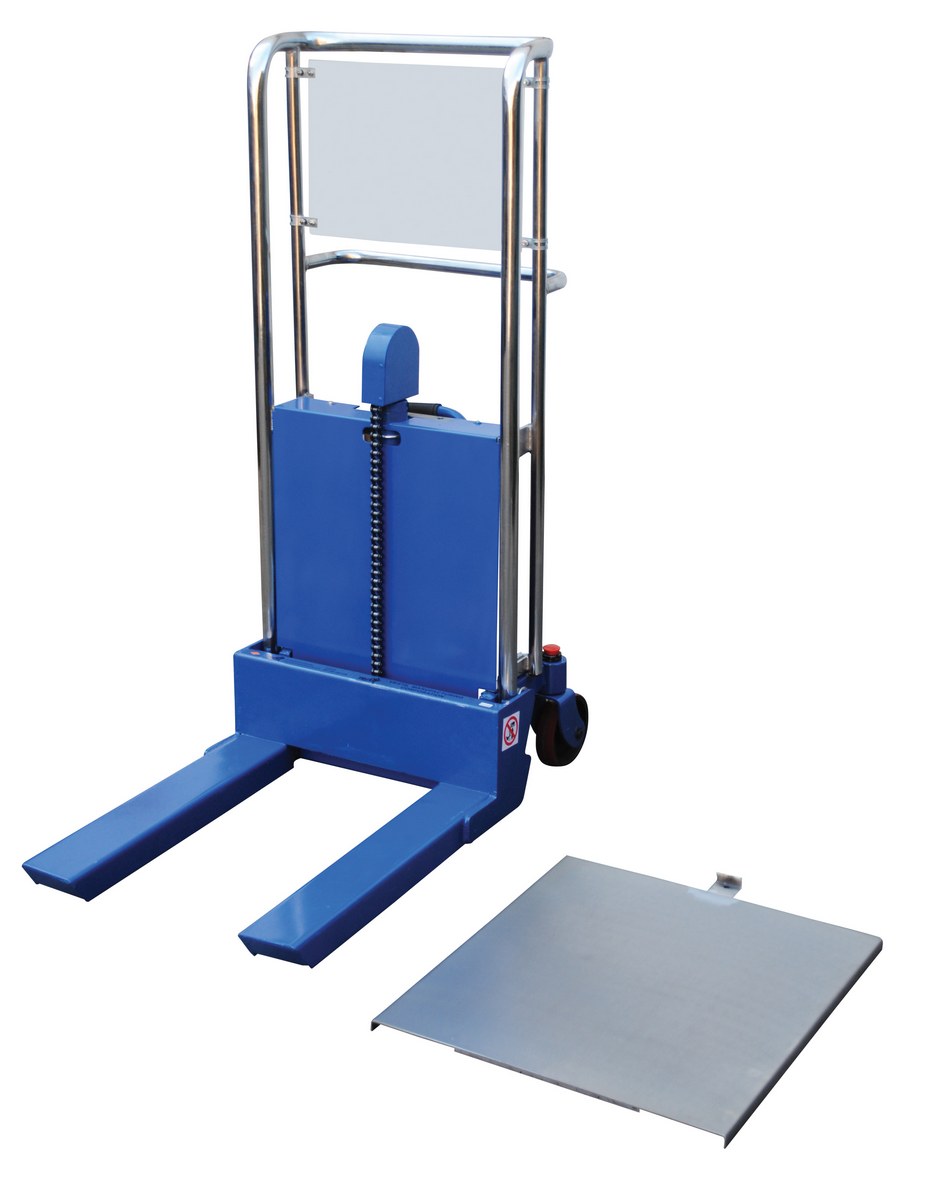

HYD-5-AS HYD-5-AS90 Days Limited WarrantySteel Two Speed Foot Pump Hefti-Lift 36 In. x 55 In. 880 Lb. Capacity BlueUniform Capacity (lb.): 880
Platform Width/Length (in.): 23 x 24
286

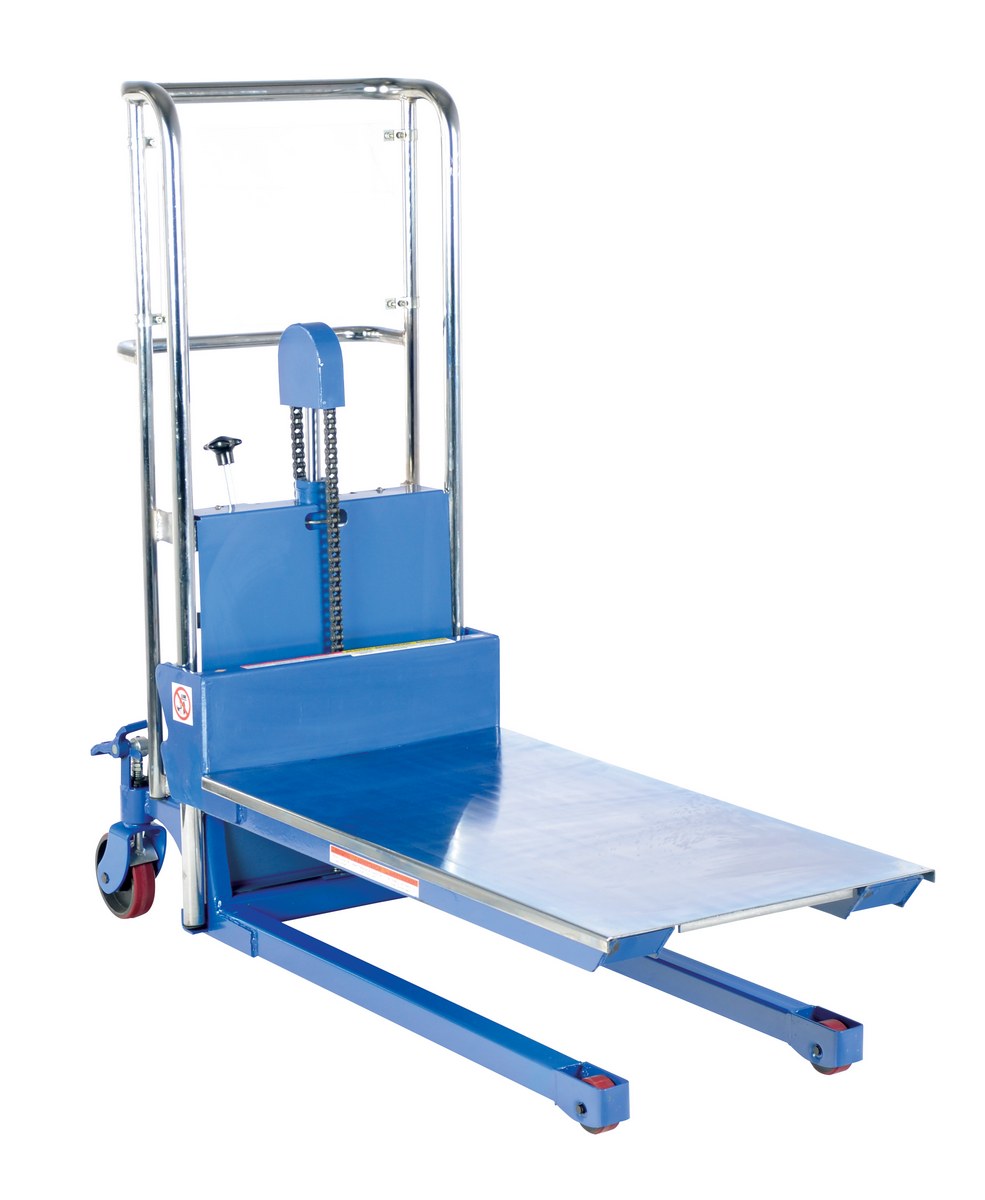

HYD-5-EP HYD-5-EP90 Days Limited WarrantySteel Portable Foot Pump Hefti-Lift 60 In. x 54 In. 400 Lb. Capacity BlueUniform Capacity (lb.): 400
Platform Width/Length (in.): 23 x 40
293

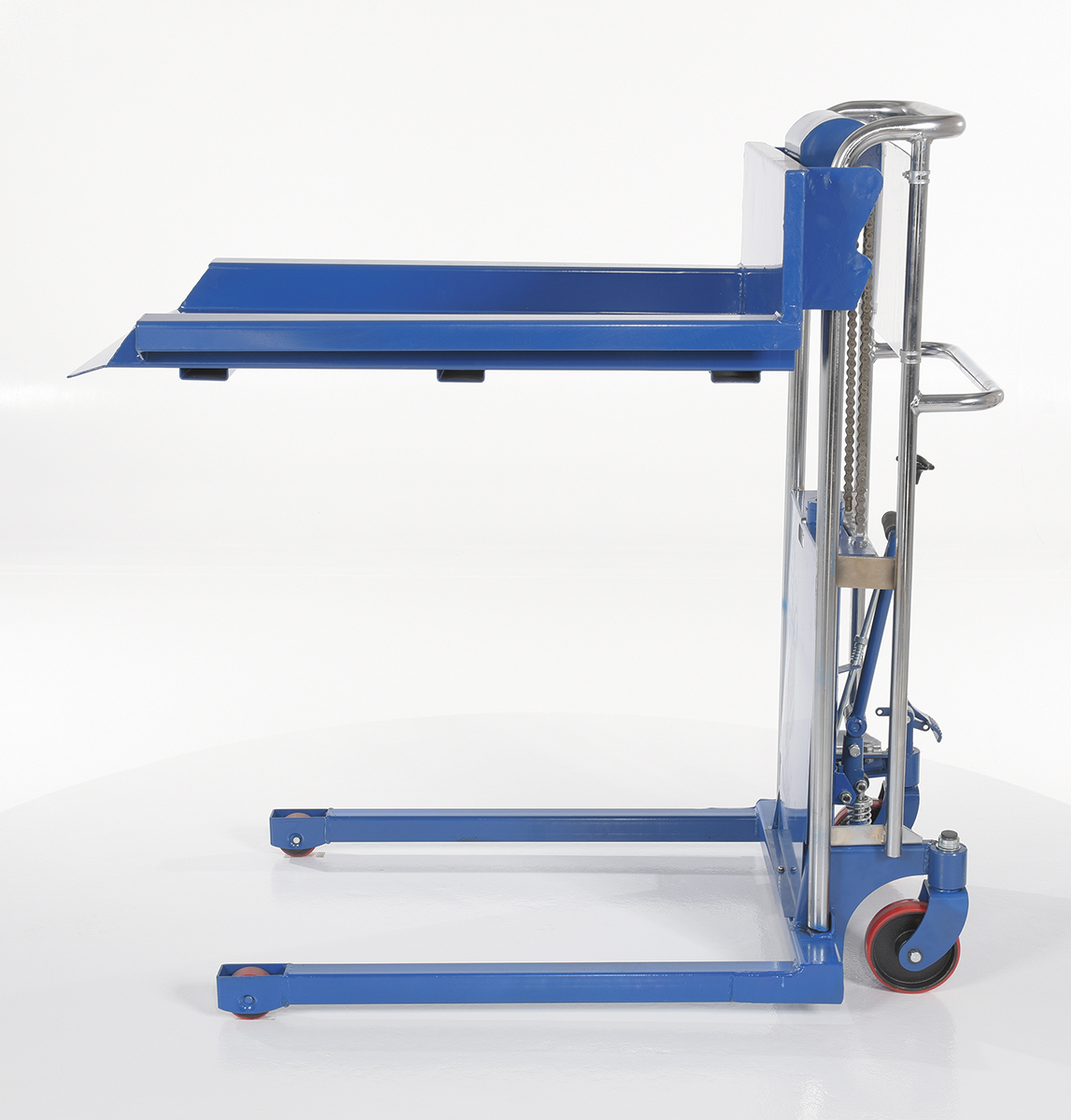

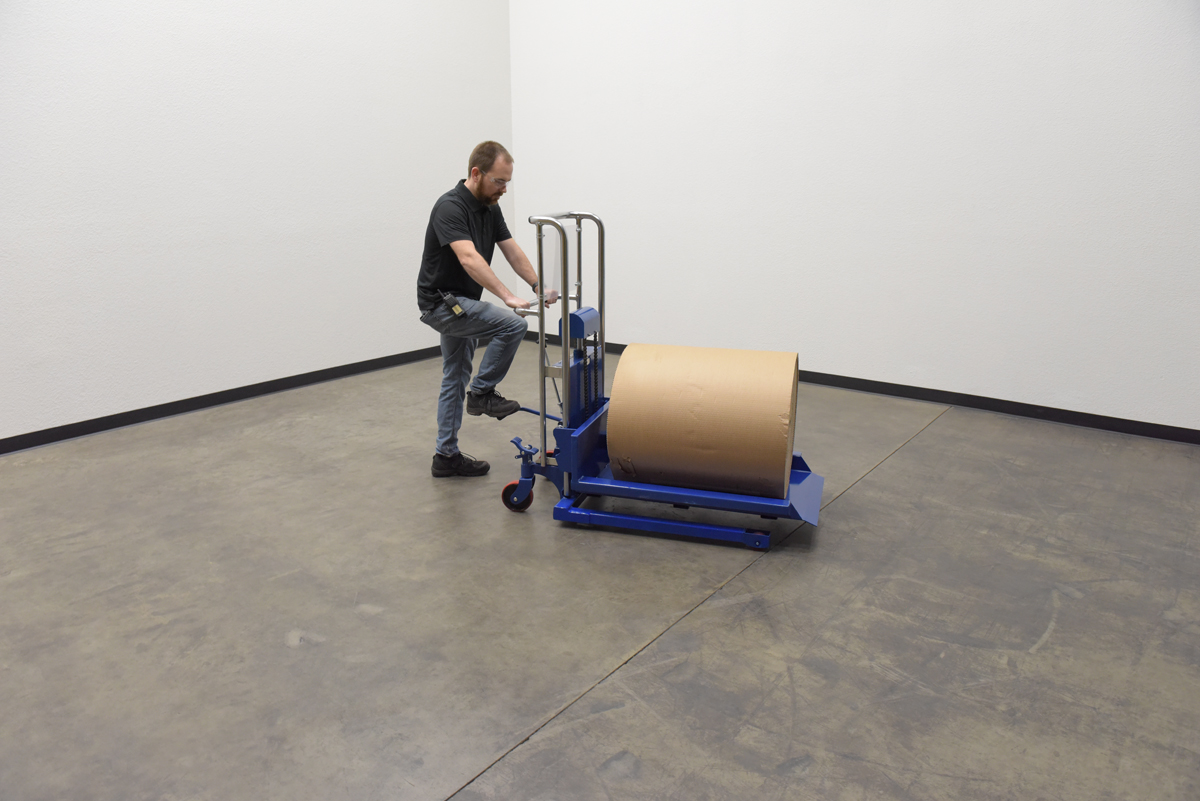

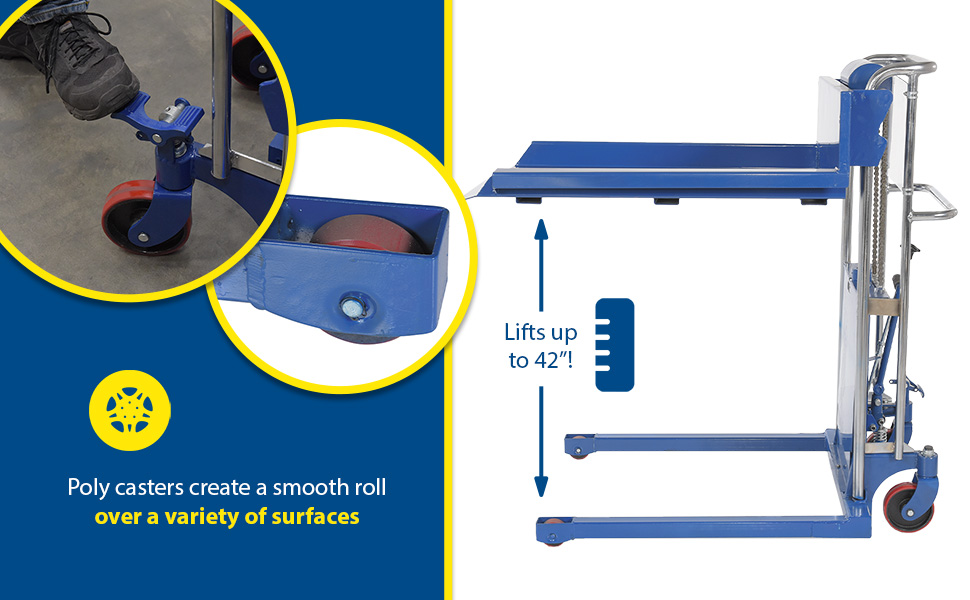

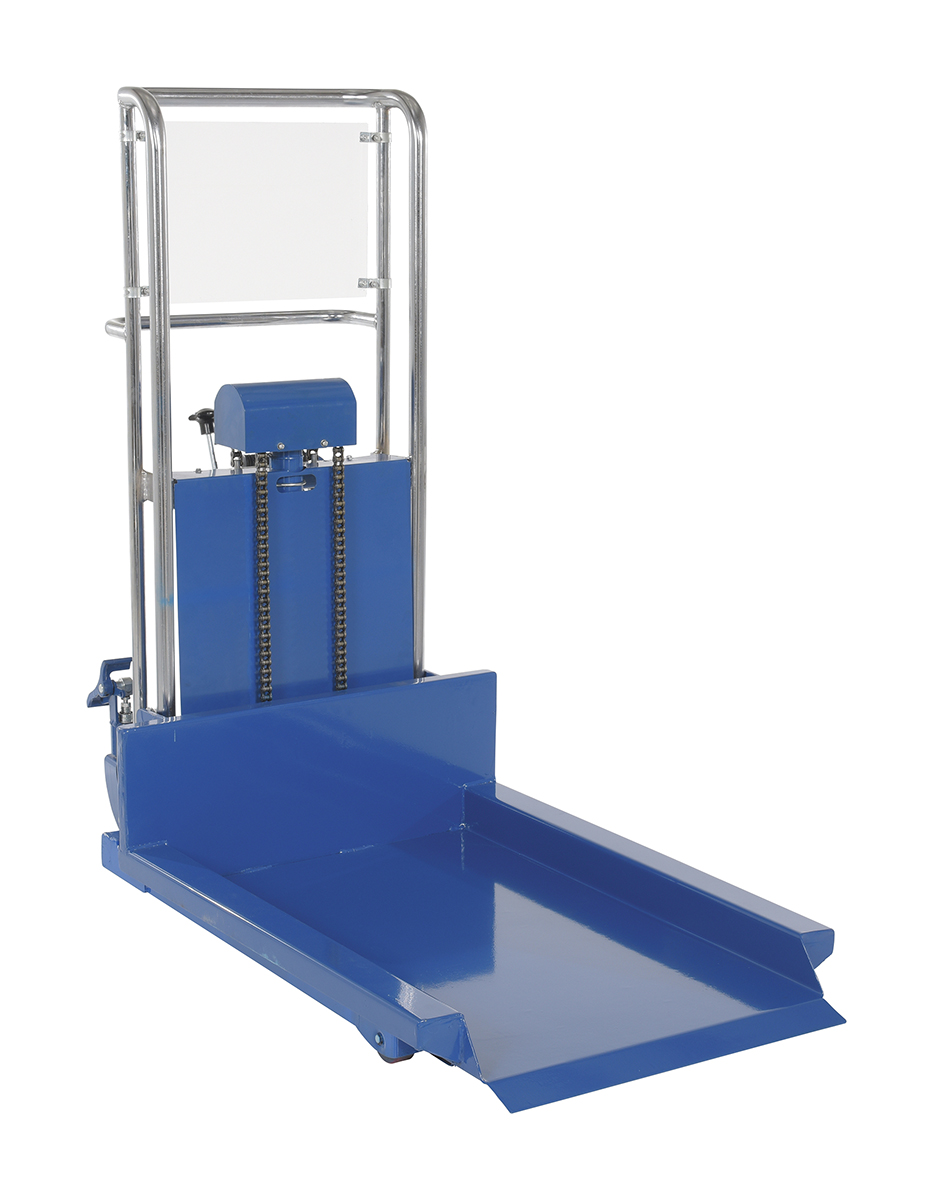

HYD-5-LP HYD-5-LP1 Year Limited WarrantySteel Low Profile Hefti-Lift 53-1/2 In. x 53-3/4 In. 880 Lb. Capacity BlueUniform Capacity (lb.): 880
Platform Width/Length (in.): 24" x 36"
305

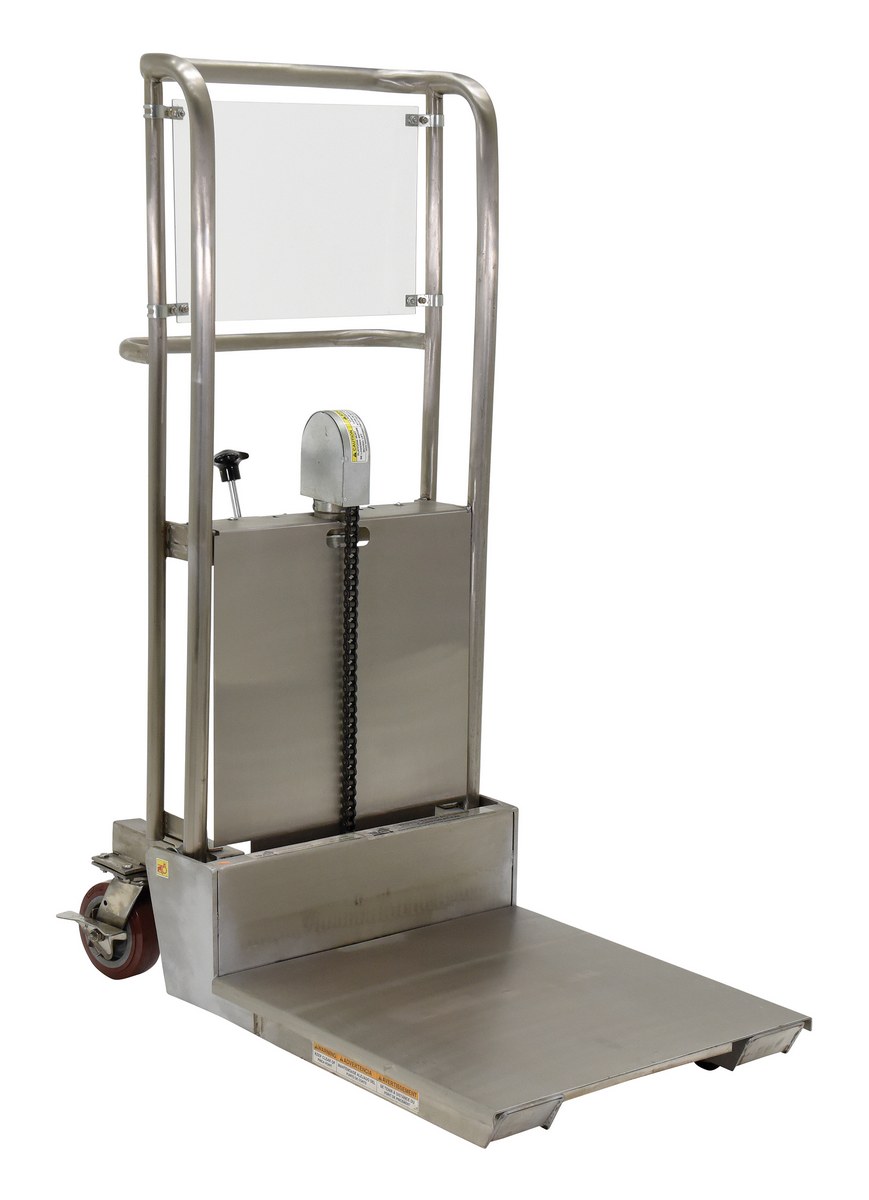

HYD-5-PSS HYD-5-PSS90 Days Limited WarrantyPartially Stainless Steel Foot Pump Hefti-Lift 36 In. x 52-1/8 In. 450 Lb. Capacity SilverUniform Capacity (lb.): 450
Platform Width/Length (in.): 21 x 24
236

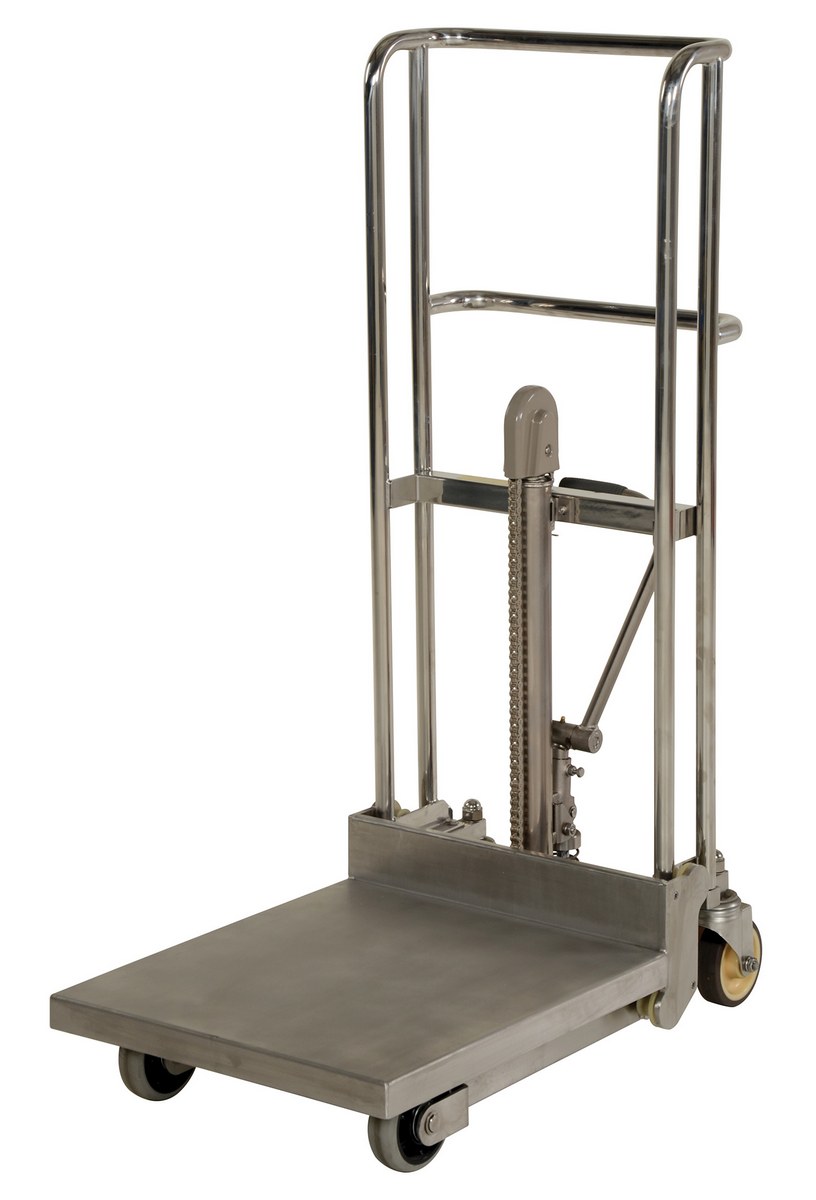

HYD-5-SS HYD-5-SS90 Days Limited WarrantyStainless Steel Hydraulic Hefti-Lift 35-13/16 In. x 52-1/8 In. 450 Lb. Capacity SilverUniform Capacity (lb.): 450
Platform Width/Length (in.): 23-7/8 x 21-1/4
236

KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = 360 Image Warranty
= Works w/ Skid Only = Flatbed Truck Required

HYD-10
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 880
Platform Width/Length (in.): 23 x 24
Uniform Capacity (lb.): 880
Platform Width/Length (in.): 23 x 24

HYD-10-AIR
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 880
Platform Width/Length (in.): 23 x 24
Uniform Capacity (lb.): 880
Platform Width/Length (in.): 23 x 24

HYD-10-AS
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 880
Platform Width/Length (in.): 23 x 24
Uniform Capacity (lb.): 880
Platform Width/Length (in.): 23 x 24

HYD-10-DA-SS
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 800
Service Range (in.): 3-1/8 x 59
Uniform Capacity (lb.): 800
Service Range (in.): 3-1/8 x 59

HYD-10-EP
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 300
Platform Width/Length (in.): 23 x 40
Uniform Capacity (lb.): 300
Platform Width/Length (in.): 23 x 40

HYD-15
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 1500
Platform Width/Length (in.): 23 x 31-1/2
Uniform Capacity (lb.): 1500
Platform Width/Length (in.): 23 x 31-1/2

HYD-3
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 880
Platform Width/Length (in.): 23 x 24
Uniform Capacity (lb.): 880
Platform Width/Length (in.): 23 x 24

HYD-5
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 880
Platform Width/Length (in.): 23 x 24
Uniform Capacity (lb.): 880
Platform Width/Length (in.): 23 x 24

HYD-5-AIR
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 880
Platform Width/Length (in.): 23 x 24
Uniform Capacity (lb.): 880
Platform Width/Length (in.): 23 x 24

HYD-5-AS
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 880
Platform Width/Length (in.): 23 x 24
Uniform Capacity (lb.): 880
Platform Width/Length (in.): 23 x 24

HYD-5-EP
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 400
Platform Width/Length (in.): 23 x 40
Uniform Capacity (lb.): 400
Platform Width/Length (in.): 23 x 40

HYD-5-LP
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 880
Platform Width/Length (in.): 24" x 36"
Uniform Capacity (lb.): 880
Platform Width/Length (in.): 24" x 36"

HYD-5-PSS
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 450
Platform Width/Length (in.): 21 x 24
Uniform Capacity (lb.): 450
Platform Width/Length (in.): 21 x 24

HYD-5-SS
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 450
Platform Width/Length (in.): 23-7/8 x 21-1/4
Uniform Capacity (lb.): 450
Platform Width/Length (in.): 23-7/8 x 21-1/4

Hefti-Lifts PDF's will open in a new window when clicked.

Manuals


Survey Sheets

No Survey Sheets For This Product


Approval Drawings

Testing Certificates


HYD-10

HYD-10-AIR

HYD-10-AS

HYD-10-DA-SS

HYD-10-EP

HYD-15

HYD-3

HYD-5

HYD-5-AIR

HYD-5-AS

HYD-5-EP

HYD-5-LP

HYD-5-PSS

HYD-5-SS

SDS Sheets

Hydraulic Oil SDS Sheet for: HYD-10
Hydraulic Oil SDS Sheet for: HYD-10-AIR
Hydraulic Oil SDS Sheet for: HYD-10-AS
Hydraulic Oil SDS Sheet for: HYD-10-DA-SS
Hydraulic Oil SDS Sheet for: HYD-10-EP
Hydraulic Oil SDS Sheet for: HYD-15
Hydraulic Oil SDS Sheet for: HYD-5
Hydraulic Oil SDS Sheet for: HYD-5-AIR
Hydraulic Oil SDS Sheet for: HYD-5-AS
Hydraulic Oil SDS Sheet for: HYD-5-EP
Hydraulic Oil SDS Sheet for: HYD-5-LP
Hydraulic Oil SDS Sheet for: HYD-5-PSS
Hydraulic Oil SDS Sheet for: HYD-5-SS

Other PDF's


Directory Links Of Available PDF's For All Products


Q: Can the V-Block be used on the HYD-10?

A: The HYDC-VBLK accessory for the DC powered unit can be used on the manual units as well.


Q: We are looking at the extra platform for the HYD-5-LP. How high is the lip on the platform?

A: The HYD-5-LP platform lip is 3-1/8" high. The HYD-5-EP platform lip is 5-1/8".


Q: How much hydraulic fluid do these units hold?

A: The Hefti-Lifts hold 2-2.5 quarts of hydraulic fluid.

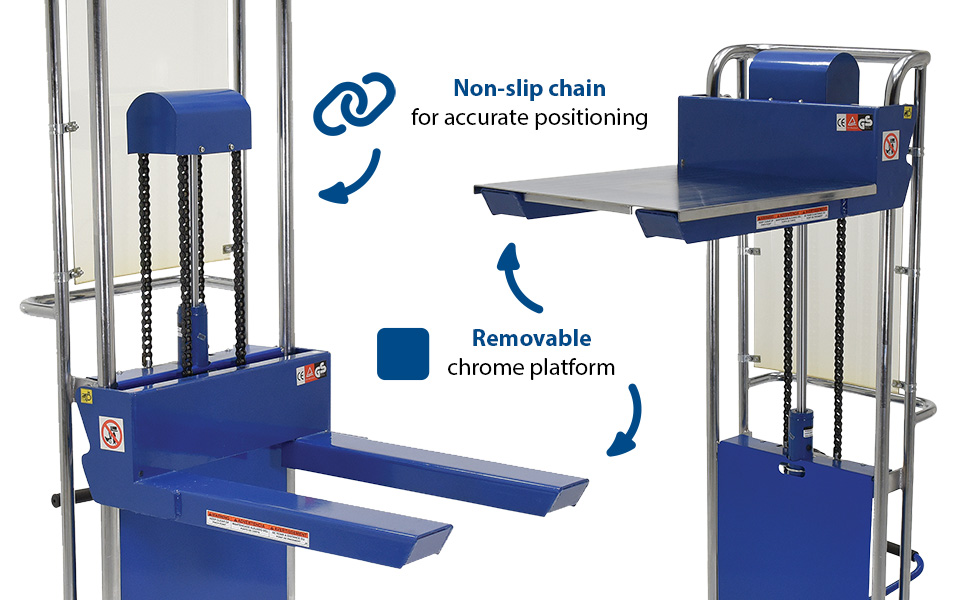

Q: Is the platform removable so the unit can be used just with the forks?

A: Yes platform is removable on the following models HYD-10, HYD-10-AIR, HYD-10-AS, HYD-10-DA,SS, HYD-10-DC, HYD-10-DC,SS HYD-10-EP. Lift can be used with or without platform (with forks).


Q: How tall can it reach?

A: Overall height is 79.375". Maximum height is 53". Maximum travel distance is 49".


Q: How thick are the forks? Will they fit low profile pallets?

A: Width of the forks 4 3/8", overall fork width 21 3/4", usable length 40". Also fork thickness 0.184" and height 2 3/8".


Q: What is the inside dimension of the platform?

A: The platform inside dimension is 24".
