Product Family Overview


DC Powered Hefti-Lifts
SERIES: HYD

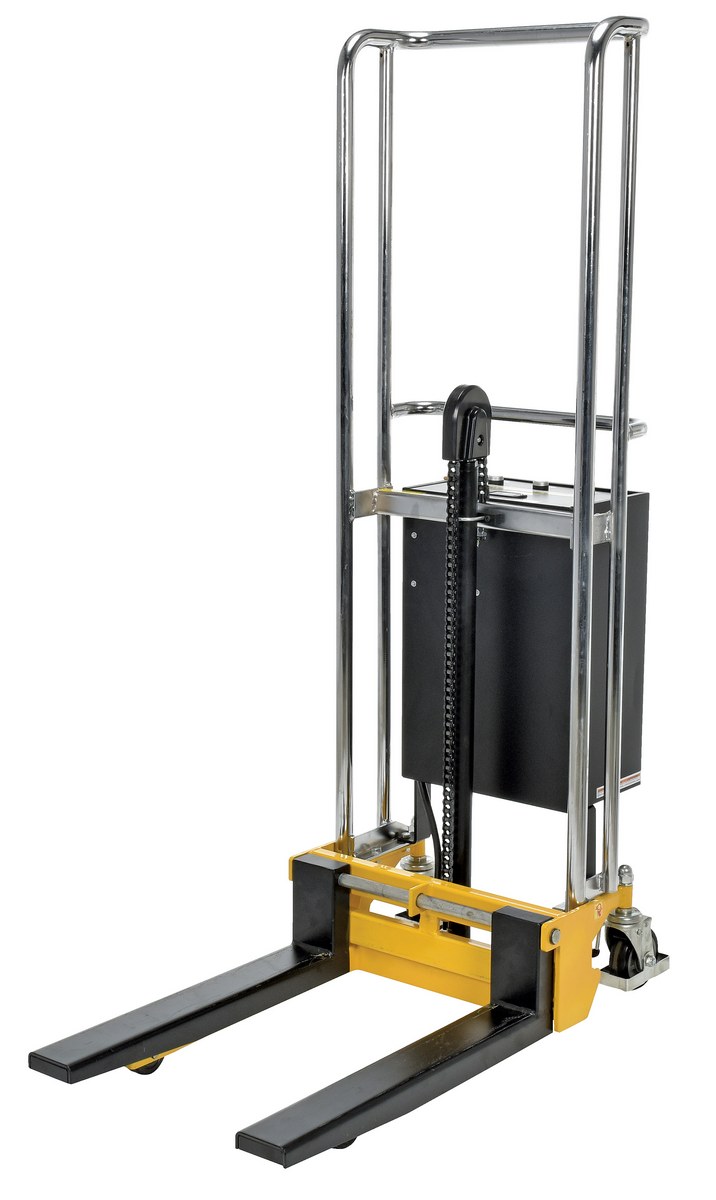

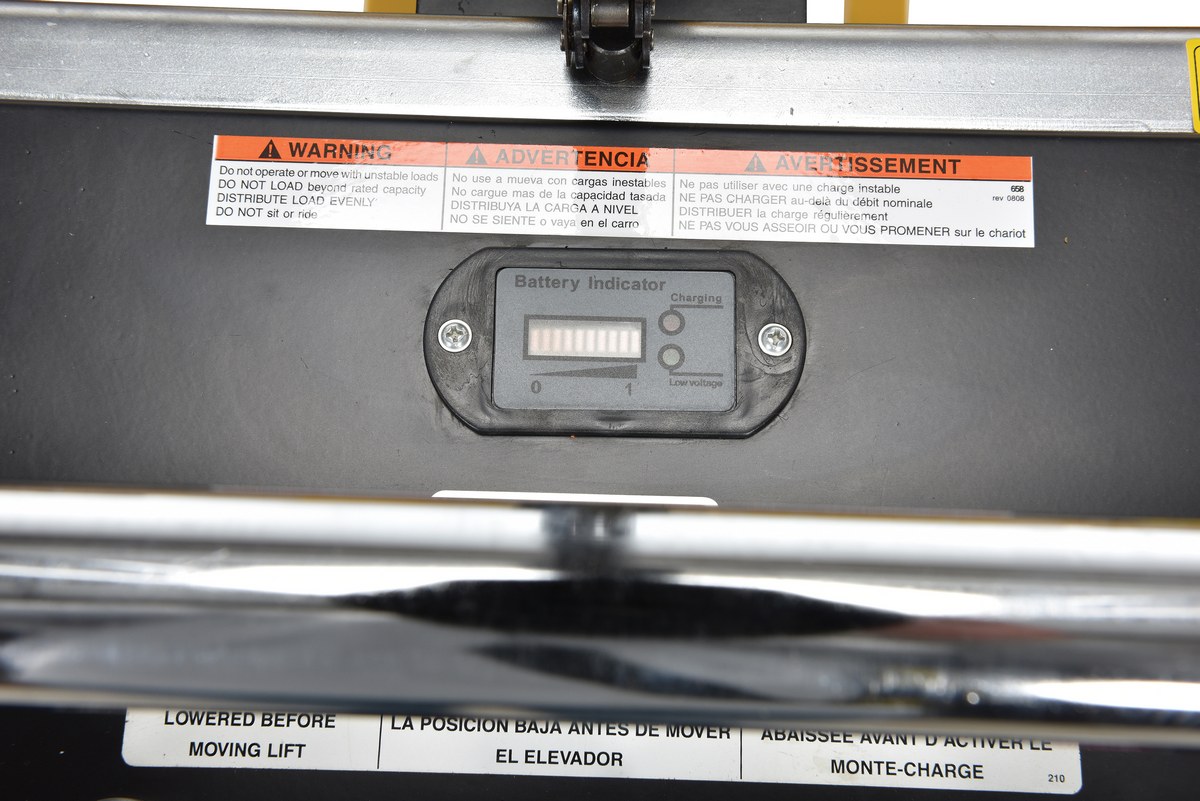

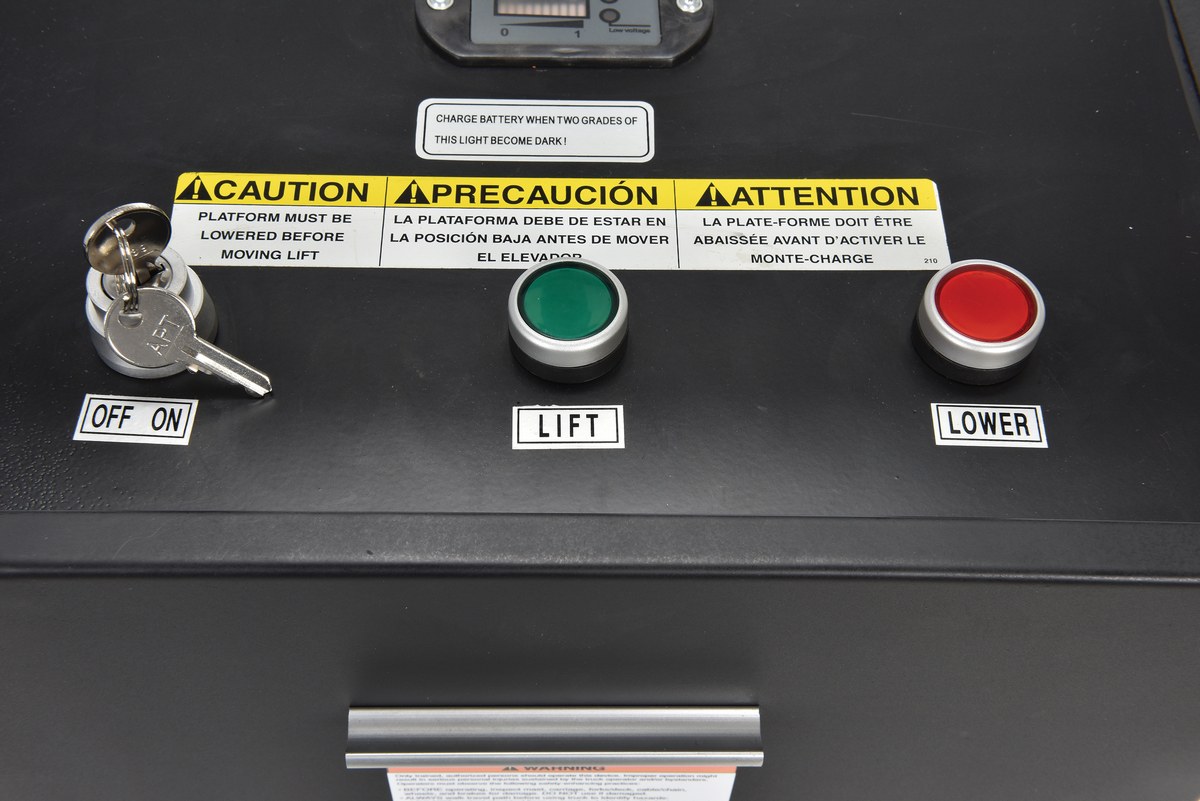

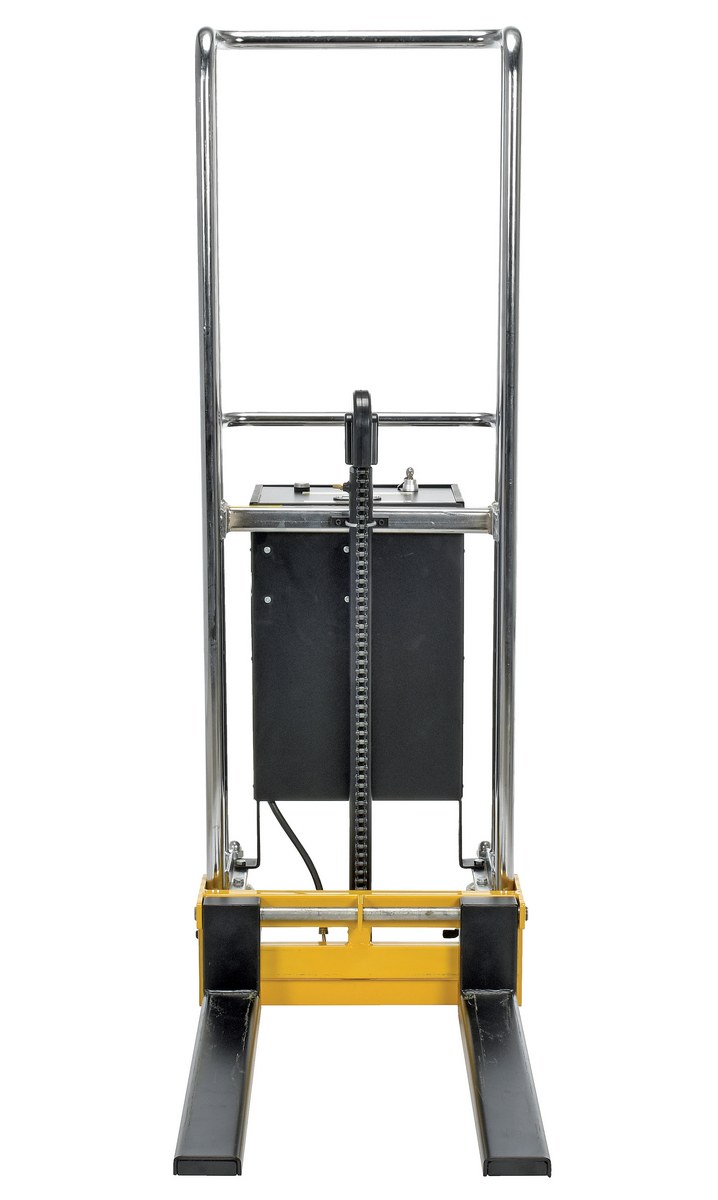

DC powered portable hydraulic lifts are user friendly providing reliable, powerful lifting when moving and positioning loads. Ideal for working in confined spaces and eliminates manual handling problems and injuries. Includes removable platform for operations requiring forks (excpt HYD-CB-10-DC). Units roll easily on two (2) rigid and two (2) swivel poly-on-steel casters and include a foot operated brake. Not for use with pallets. All welded steel construction with chrome platform and uprights. Each fork is 4-1/2"W x 2-1/2"H, the fork length is the same as the platform length. Overall fork width is 22". Units run off one (1) 12V battery. Includes battery charger, battery charge indicator and emergency on/off switch. Variety of attachments available.

304 stainless steel unit are ideal for food, pharmaceutical, chemical and clean room applications. Unit rolls easily on (2) two rigid and (2) two total lock swivel casters.

  • Non-slip chain provides accurate deck positioning
  • Two rigid and two swivel poly-on-steel casters roll smoothly either loaded or unloaded

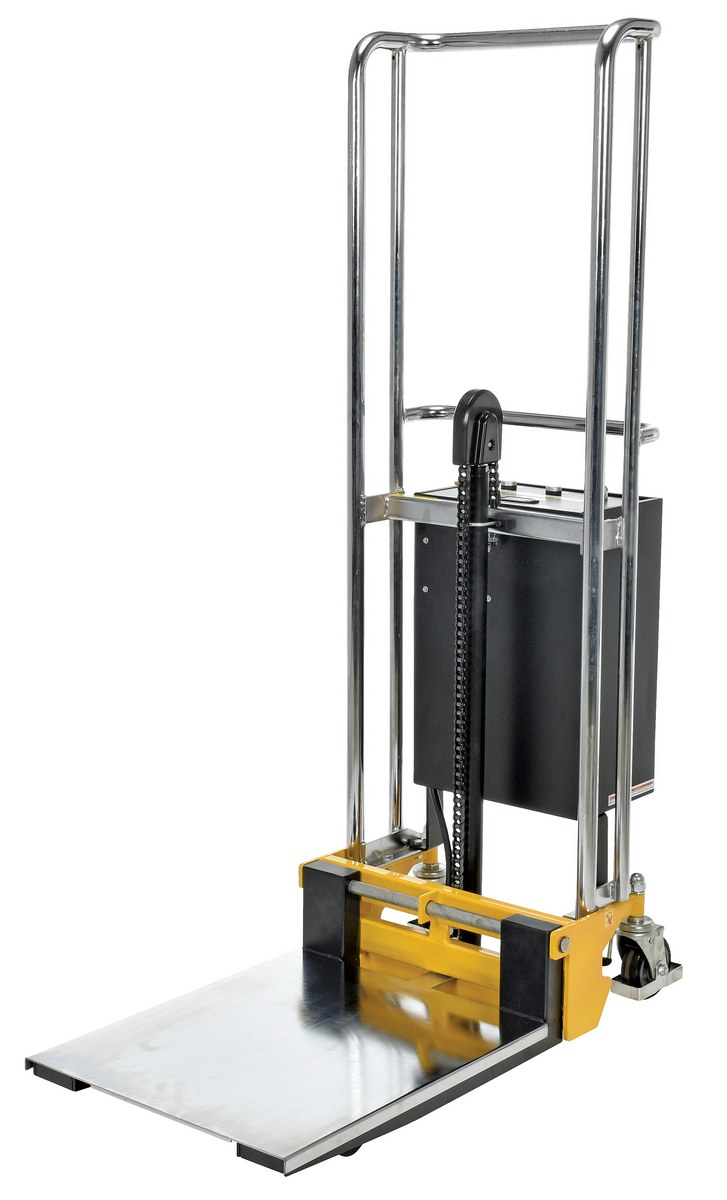

  • Removable platform allows operation requiring forks
  • Welded steel construction provides long lasting rugged use

DC powered portable hydraulic lifts are user friendly providing reliable, powerful lifting when moving and positioning loads. Ideal for working in confined spaces and eliminates manual handling problems and injuries. Includes removable platform for operations requiring forks (excpt HYD-CB-10-DC). Units roll easily on two (2) rigid and two (2) swivel poly-on-steel casters and include a foot operated brake. Not for use with pallets. All welded steel construction with chrome platform and uprights. Each fork is 4-1/2"W x 2-1/2"H, the fork length is the same as the platform length. Overall fork width is 22". Units run off one (1) 12V battery. Includes battery charger, battery charge indicator and emergency on/off switch. Variety of attachments available.

304 stainless steel unit are ideal for food, pharmaceutical, chemical and clean room applications. Unit rolls easily on (2) two rigid and (2) two total lock swivel casters.

  • Non-slip chain provides accurate deck positioning
  • Two rigid and two swivel poly-on-steel casters roll smoothly either loaded or unloaded
  • Removable platform allows operation requiring forks
  • Welded steel construction provides long lasting rugged use

Additional Models In This Family

Model Specific Details


All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
The Search Box below is within the Model Chart for this Product Family (on this current page). Not an entire site search.
Model # Description Attributes Net Wt.
(lbs)

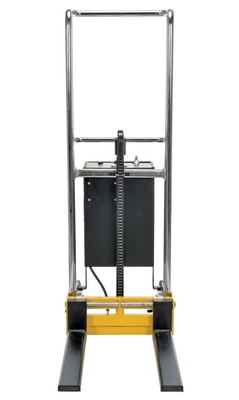

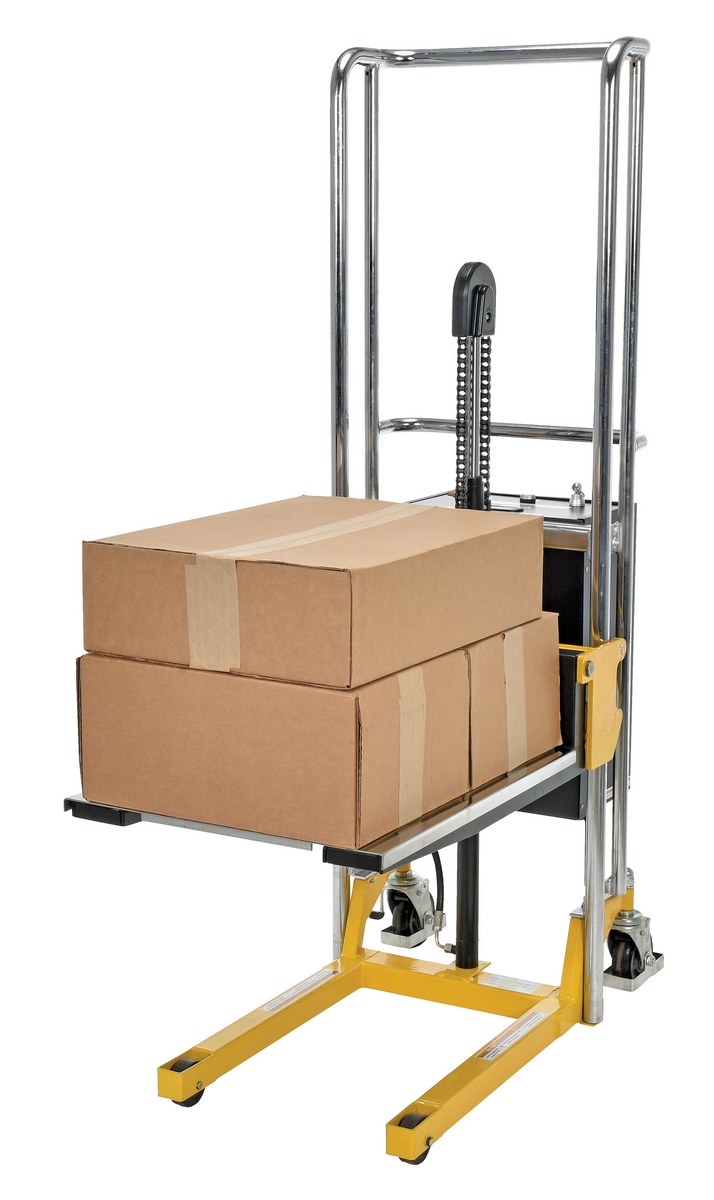

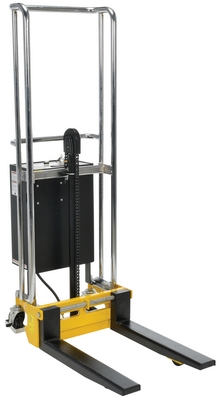

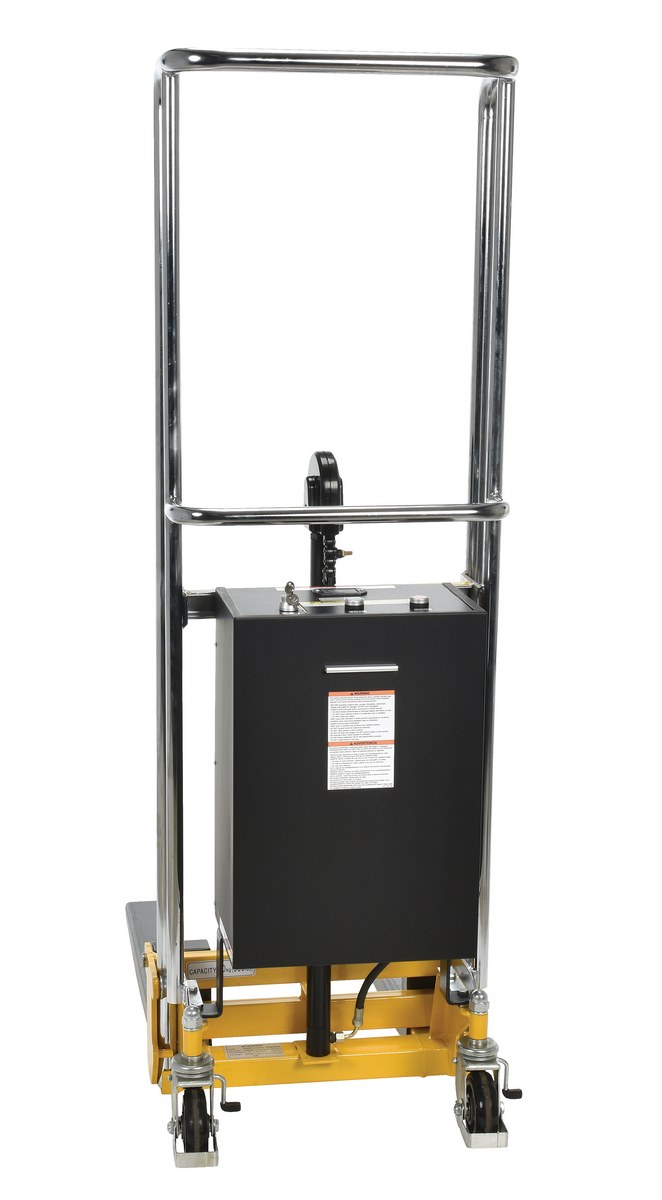

HYD-10-DC HYD-10-DC90 Days Limited WarrantySteel Portable DC Powered Hefti-Lift 37 In. x 69 In. 880 Lb. Capacity Silver / BlackUniform Capacity (lb.): 880
Platform Width/Length (in.): 22-1/8 x 25-3/4
276

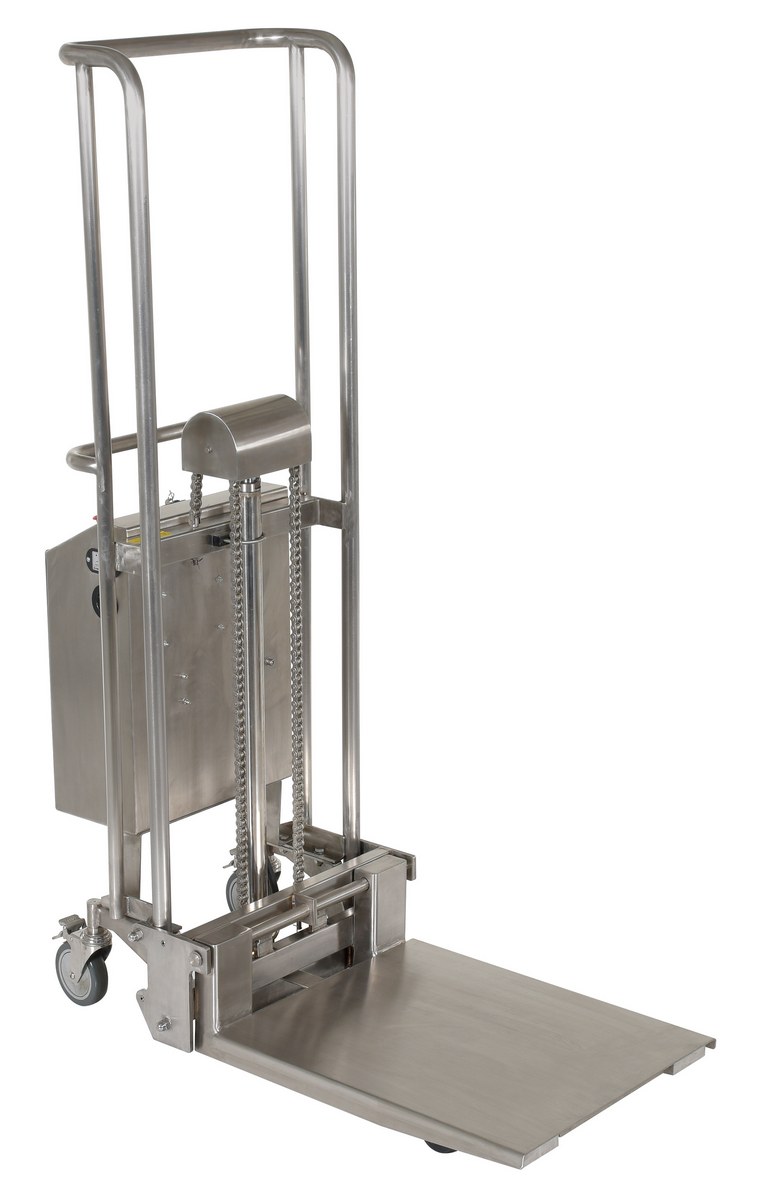

HYD-10-DC-SS
HYD-10-DC-SS90 Days Limited WarrantyPartially Stainless Steel Portable DC Powered Hefti-Lift 44 In. x 68 In. 880 Lb. Capacity SilverUniform Capacity (lb.): 880
Platform Width/Length (in.): 22 x 25-3/4
292

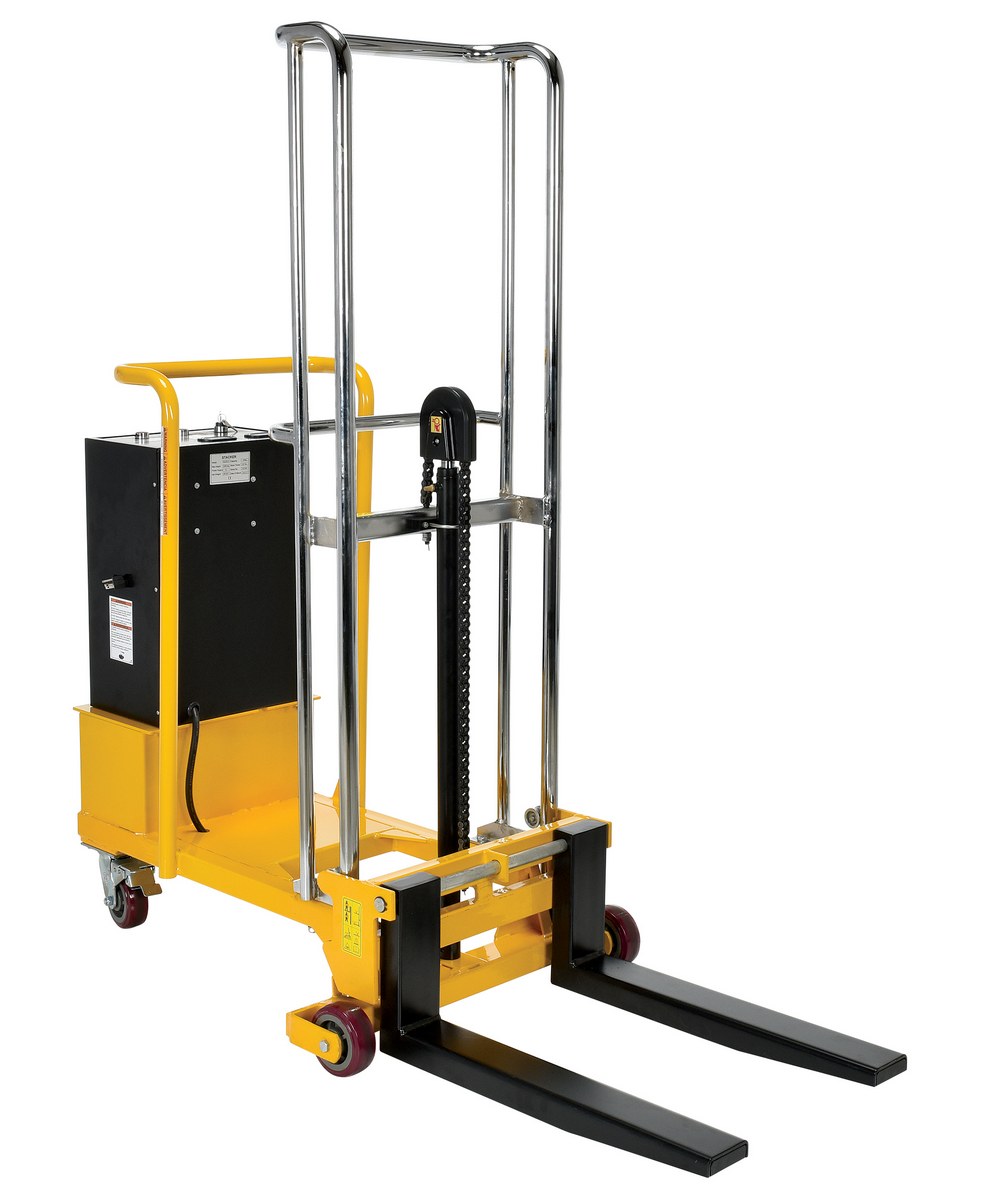

HYD-CB-10-DC HYD-CB-10-DC90 Days Limited WarrantySteel Counter Balanced Hefti-Lift 68 In. x 68-3/4 In. 550 Lb. Capacity Yellow / BlackUniform Capacity (lb.): 550
Service Range (in.): 2-3/4 to 55-1/2
555

KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = 360 Image Warranty
= Works w/ Skid Only = Flatbed Truck Required

If you did not find an expected Model or SKU # in the table, try the Options Section Below

HYD-10-DC
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 880
Platform Width/Length (in.): 22-1/8 x 25-3/4
Uniform Capacity (lb.): 880
Platform Width/Length (in.): 22-1/8 x 25-3/4

HYD-10-DC-SS
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 880
Platform Width/Length (in.): 22 x 25-3/4
Uniform Capacity (lb.): 880
Platform Width/Length (in.): 22 x 25-3/4

HYD-CB-10-DC
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 550
Service Range (in.): 2-3/4 to 55-1/2
Uniform Capacity (lb.): 550
Service Range (in.): 2-3/4 to 55-1/2
For More Details of the Option Click the Red Model Button

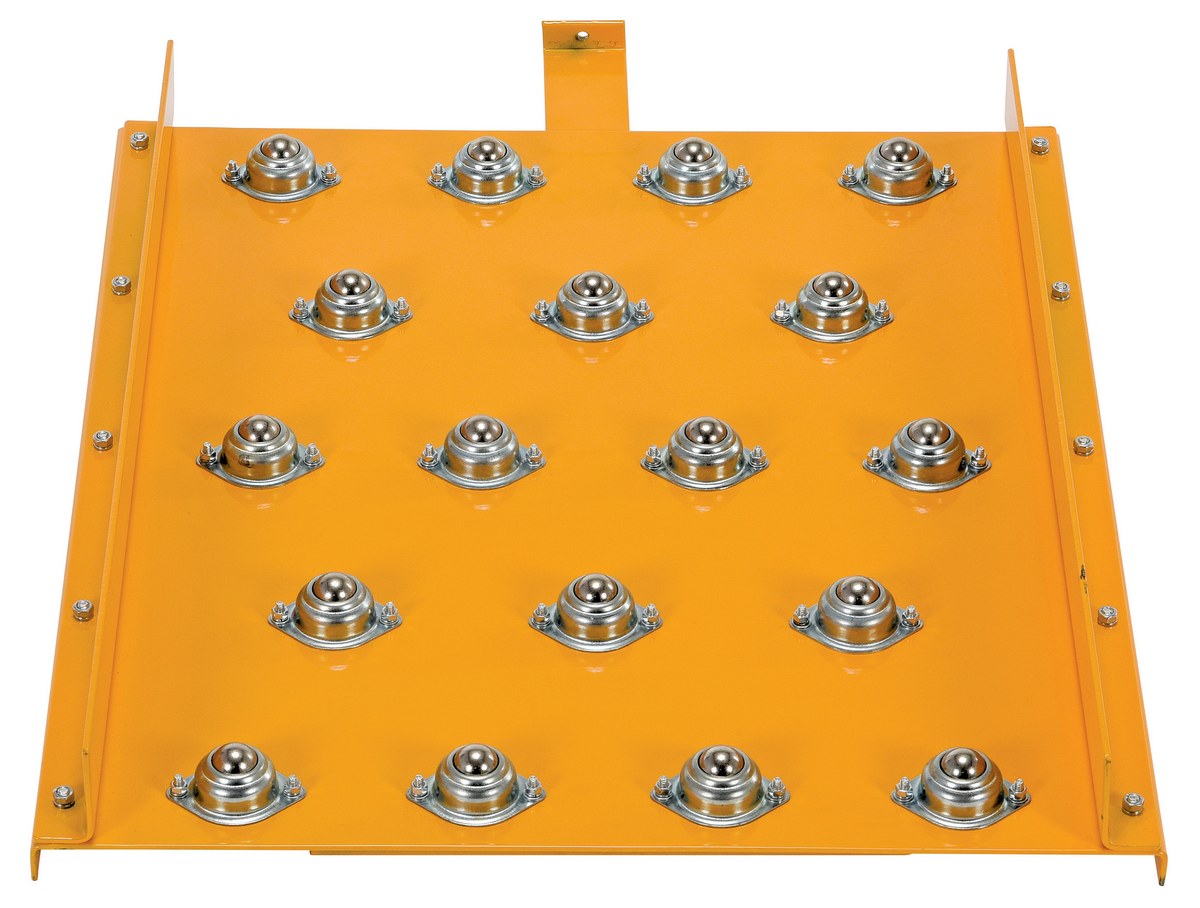

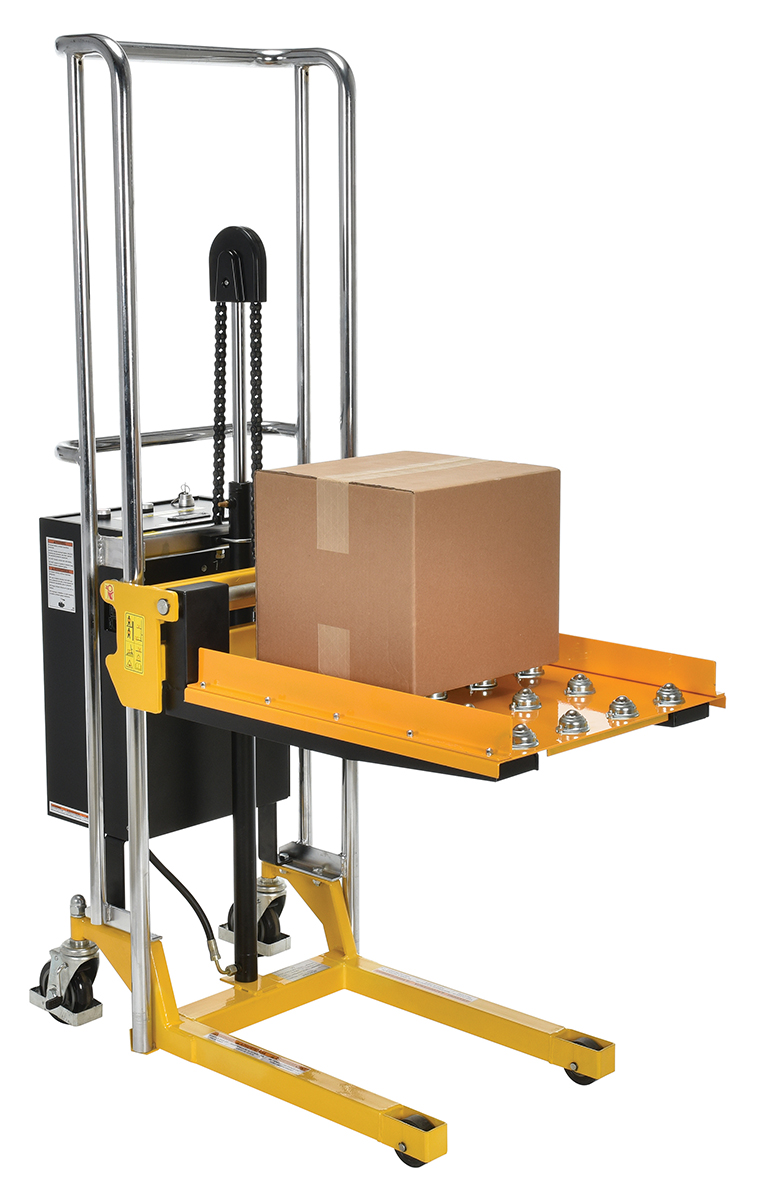

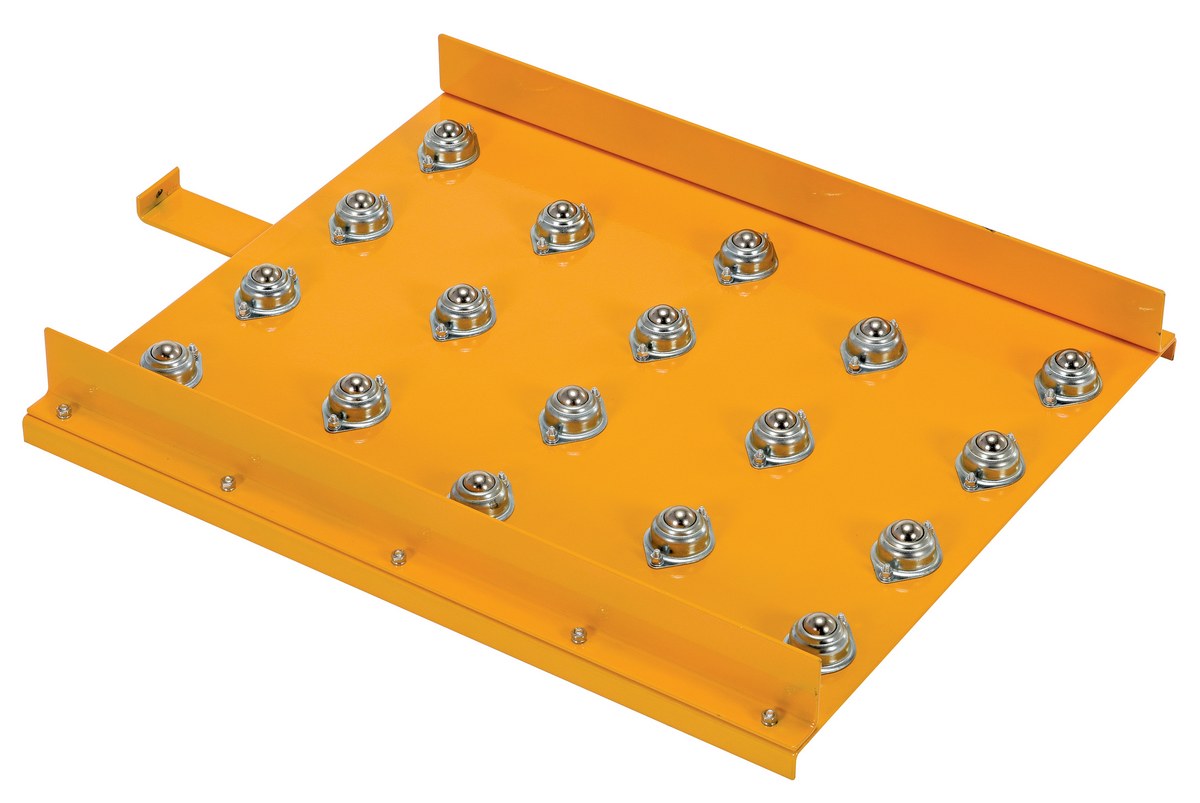

HYDC-BTP HYDC-BTP90 Days Limited WarrantySteel Ball Transfer Platform 25-3/4 In. x 19-1/4 In. For Hefti-Lift Models YellowUsable Width (in.): 19-1/4
Usable Length (in.): 25-3/4
34

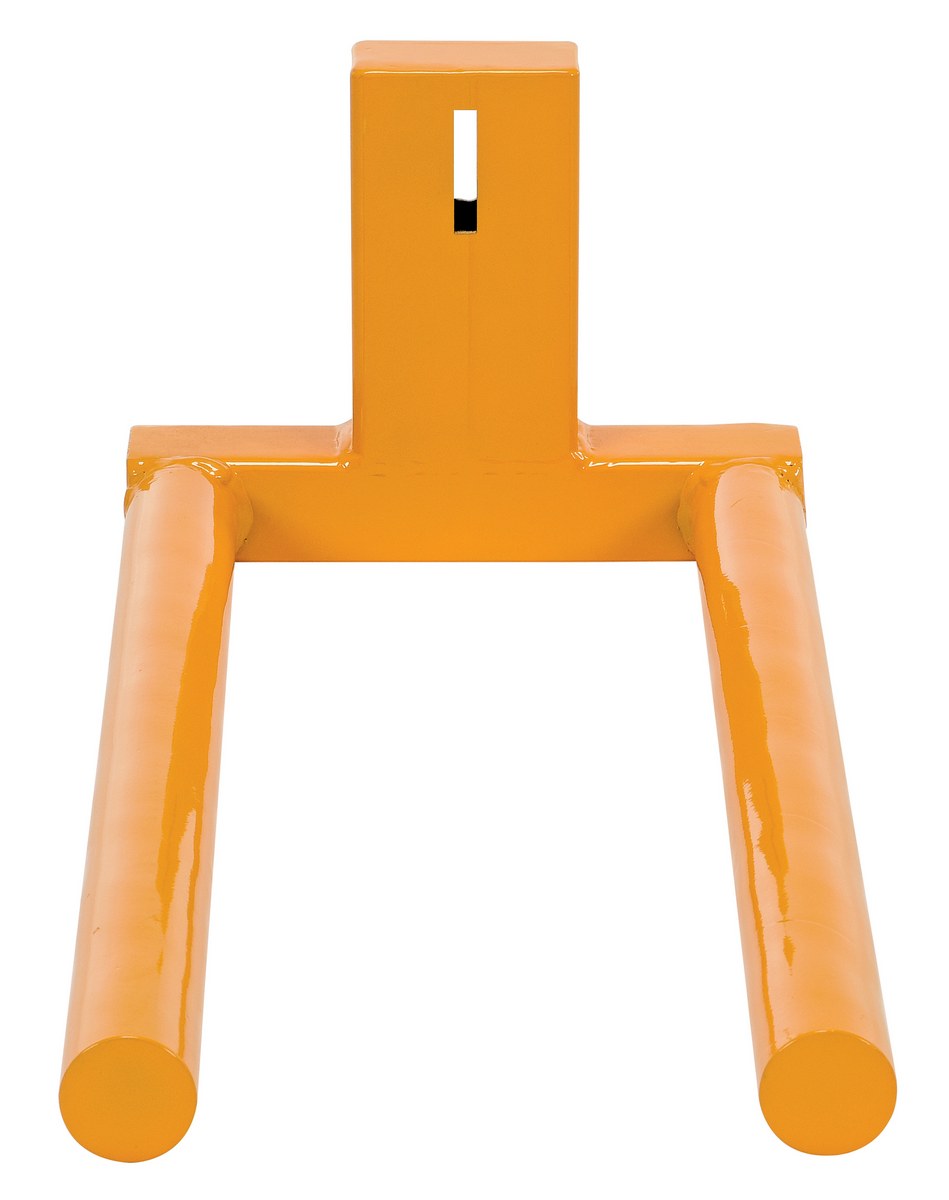

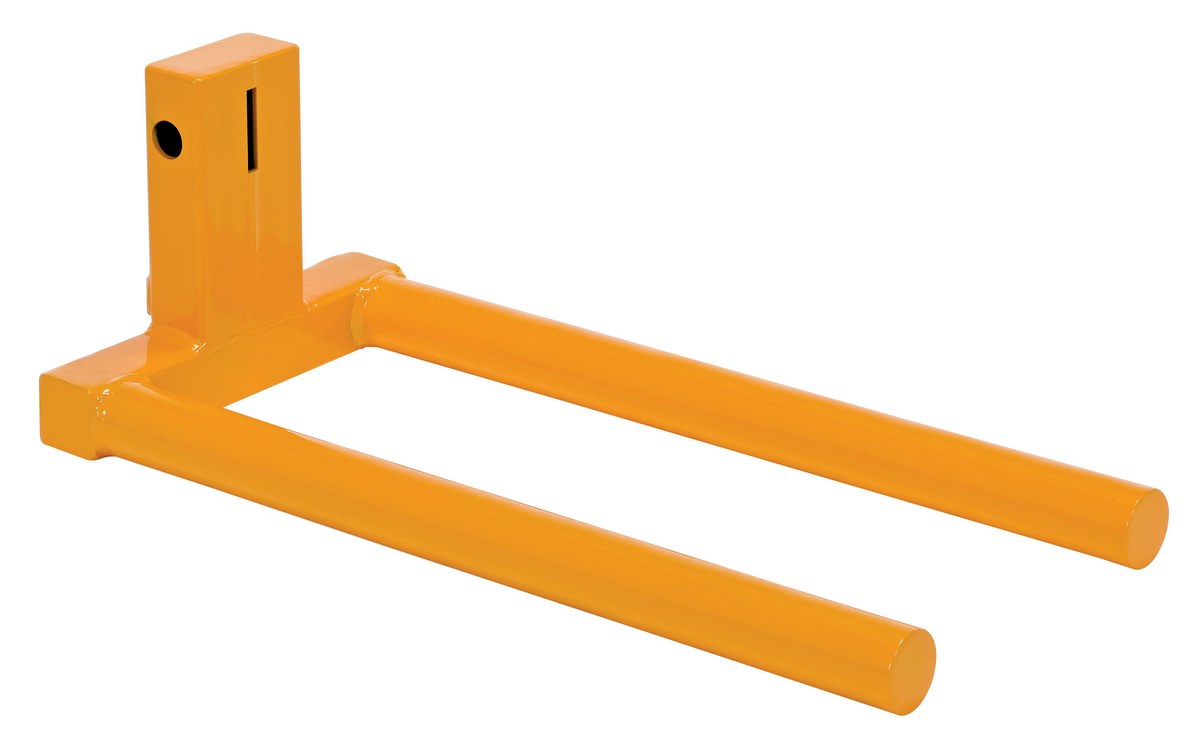

HYDC-DSPIN HYDC-DSPIN90 Days Limited WarrantySteel Double Spindle Attachment For Hefti-Lift Models 800 Lb. Capacity YellowAttachment Method: Bolt On
Spindle Diameter (in.): 2.375
18

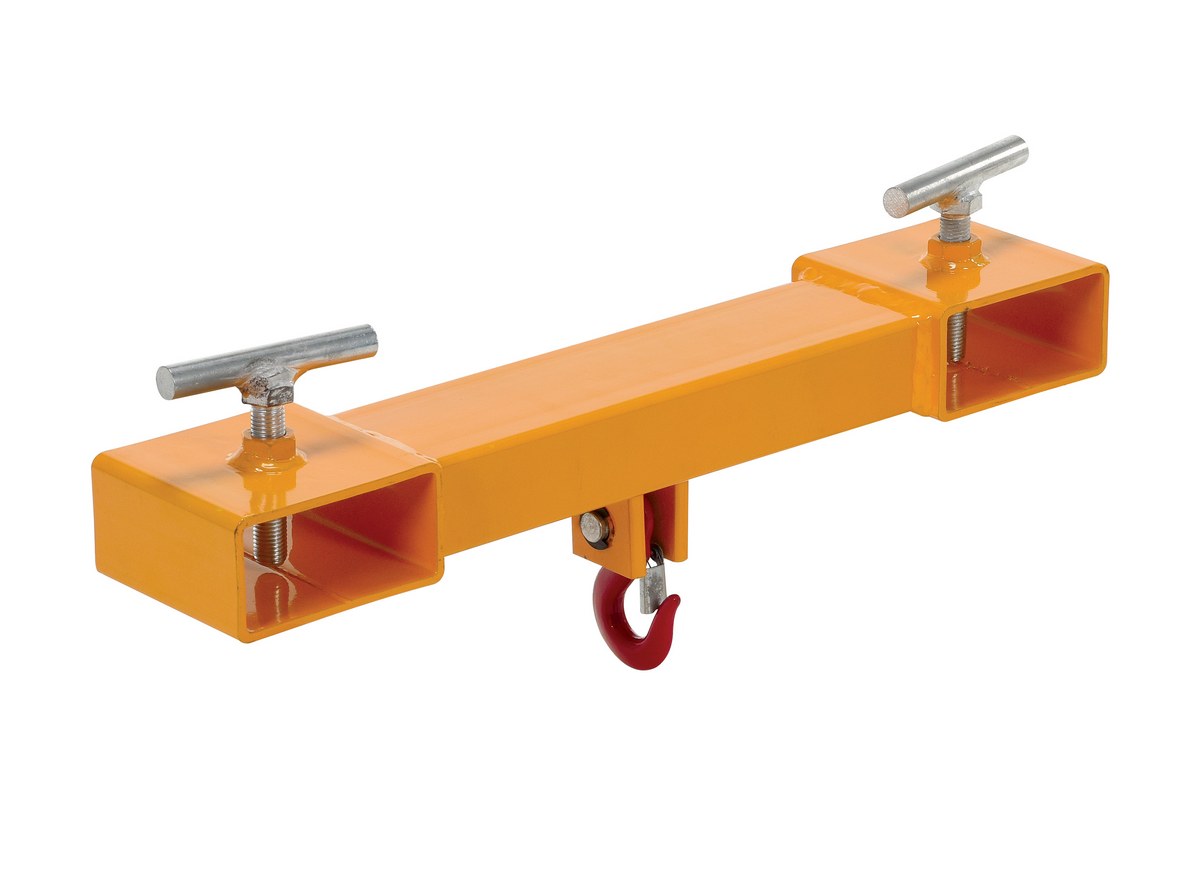

HYDC-FRKHK HYDC-FRKHK90 Days Limited WarrantySteel Fork Hook Attachment For Hefti-Lift Models YellowFork Pocket Width (in.): 4-1/4
Fork Pocket Height (in.): 2
15

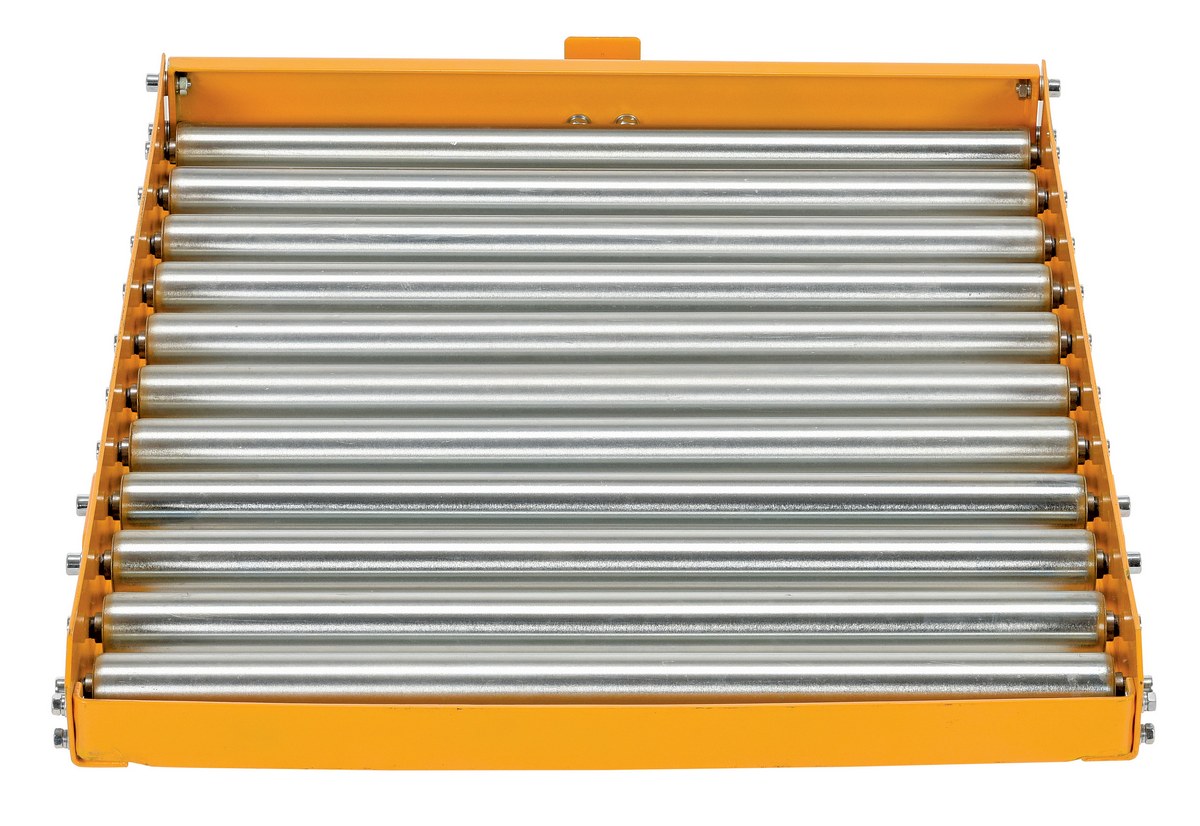

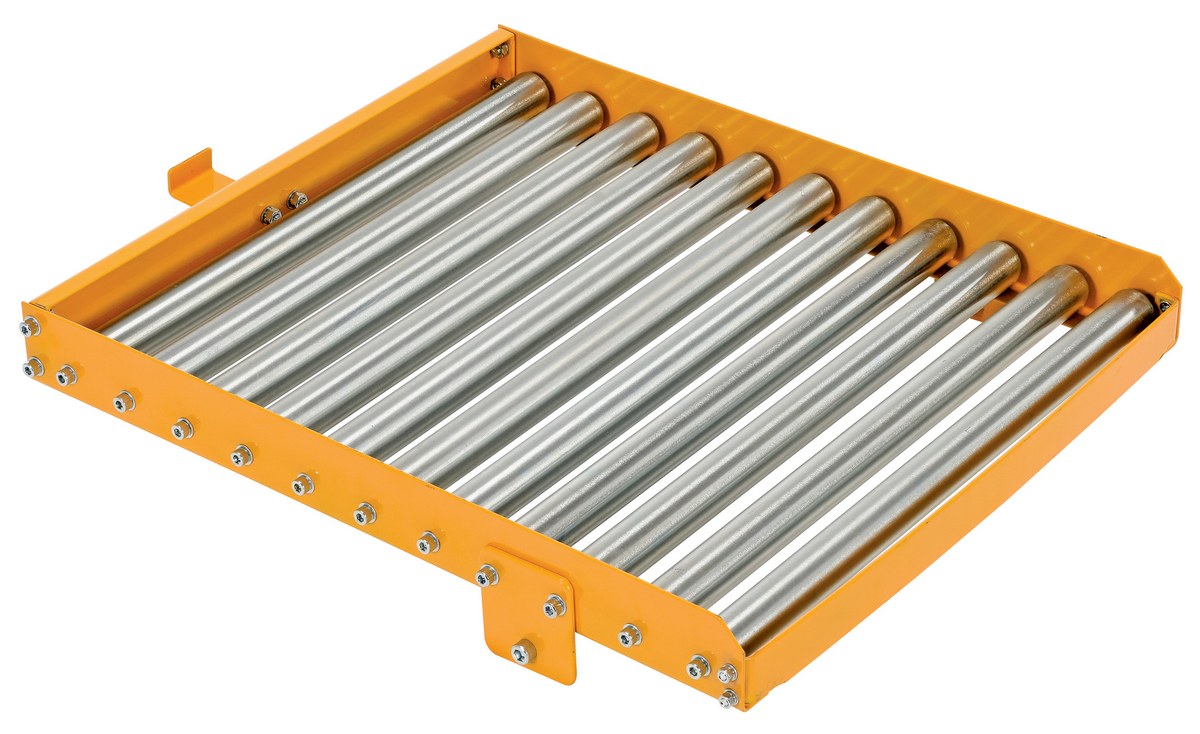

HYDC-RP HYDC-RP90 Days Limited WarrantySteel Roller Platform 26 In. x 21-1/2 In. Hefti-Lift Models YellowUsable Width (in.): 21-1/2
Usable Length (in.): 26
44

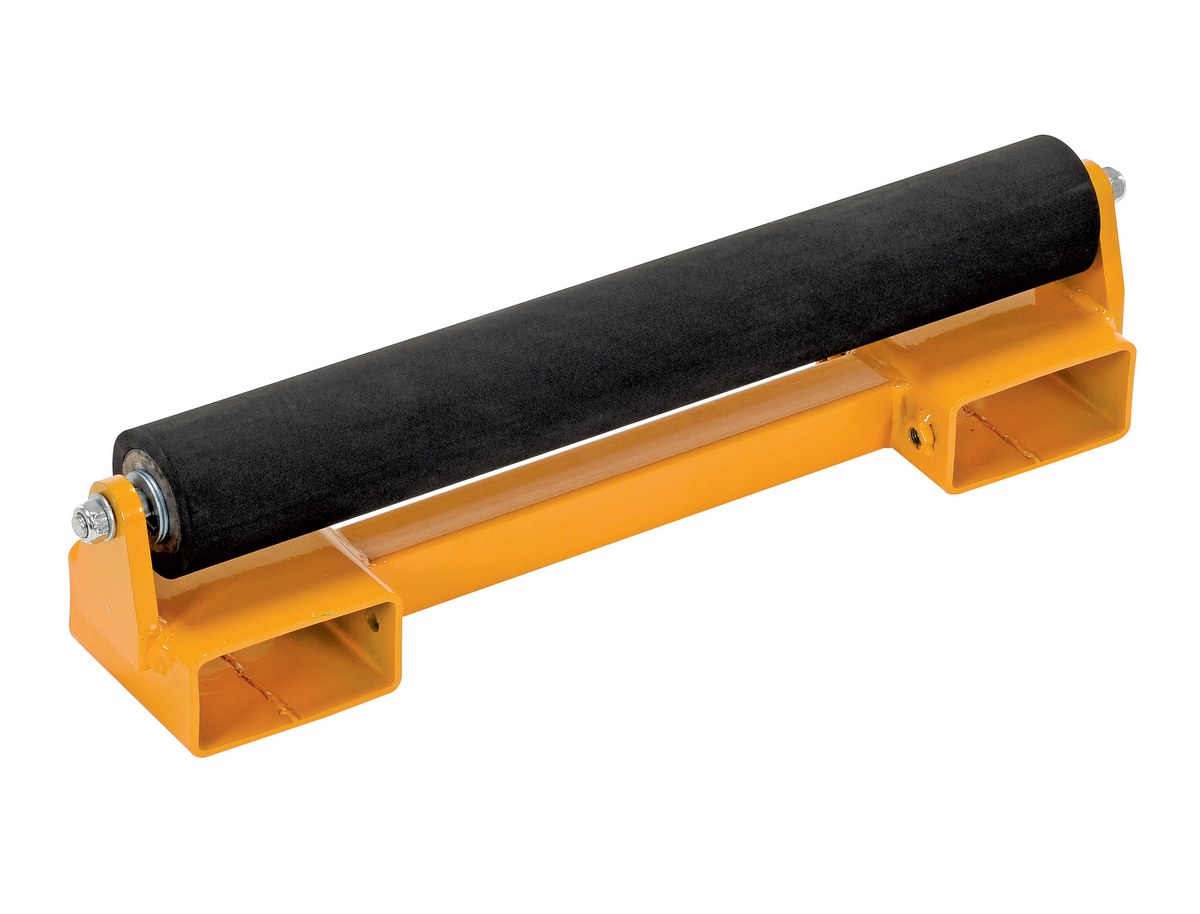

HYDC-RR HYDC-RR90 Days Limited WarrantyRubber Roller Attachment For Hefti-Lift Models YellowFork Pocket Width (in.): 4-1/2
Fork Pocket Height (in.): 2
22

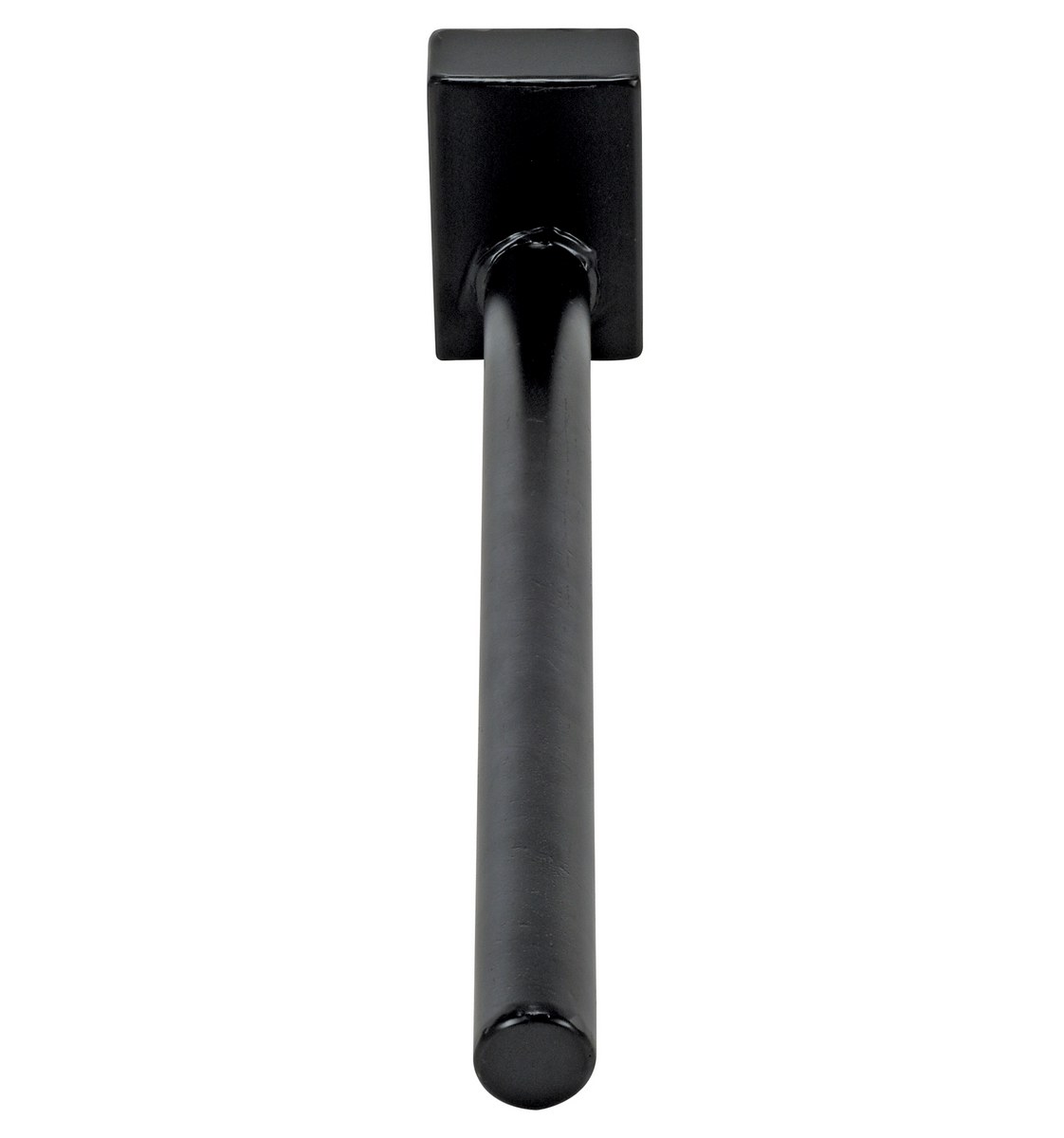

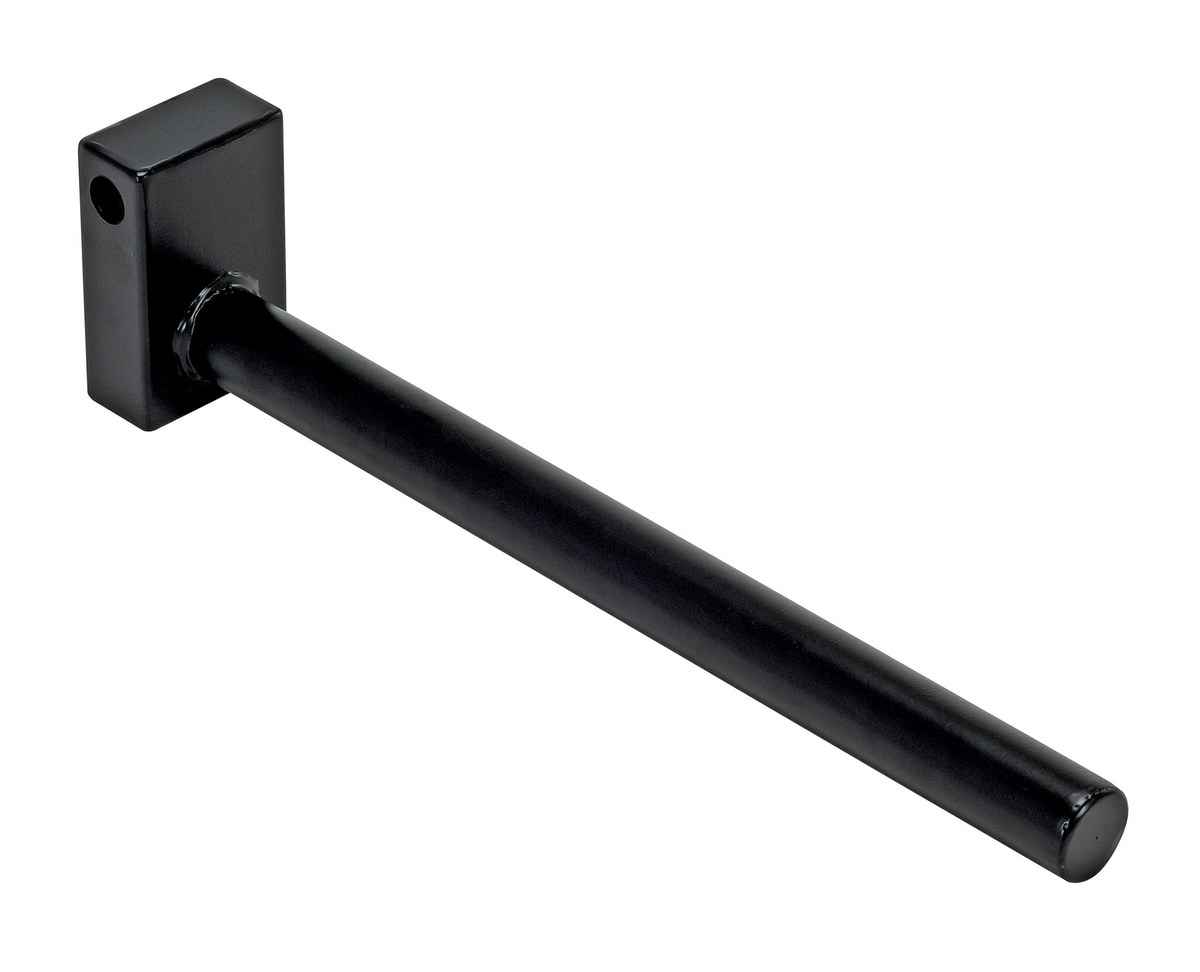

HYDC-SPIN HYDC-SPIN90 Days Limited WarrantySteel Single Spindle Attachment For Hefti-Lift Models BlackAttachment Method:
Spindle Diameter (in.): 2
10

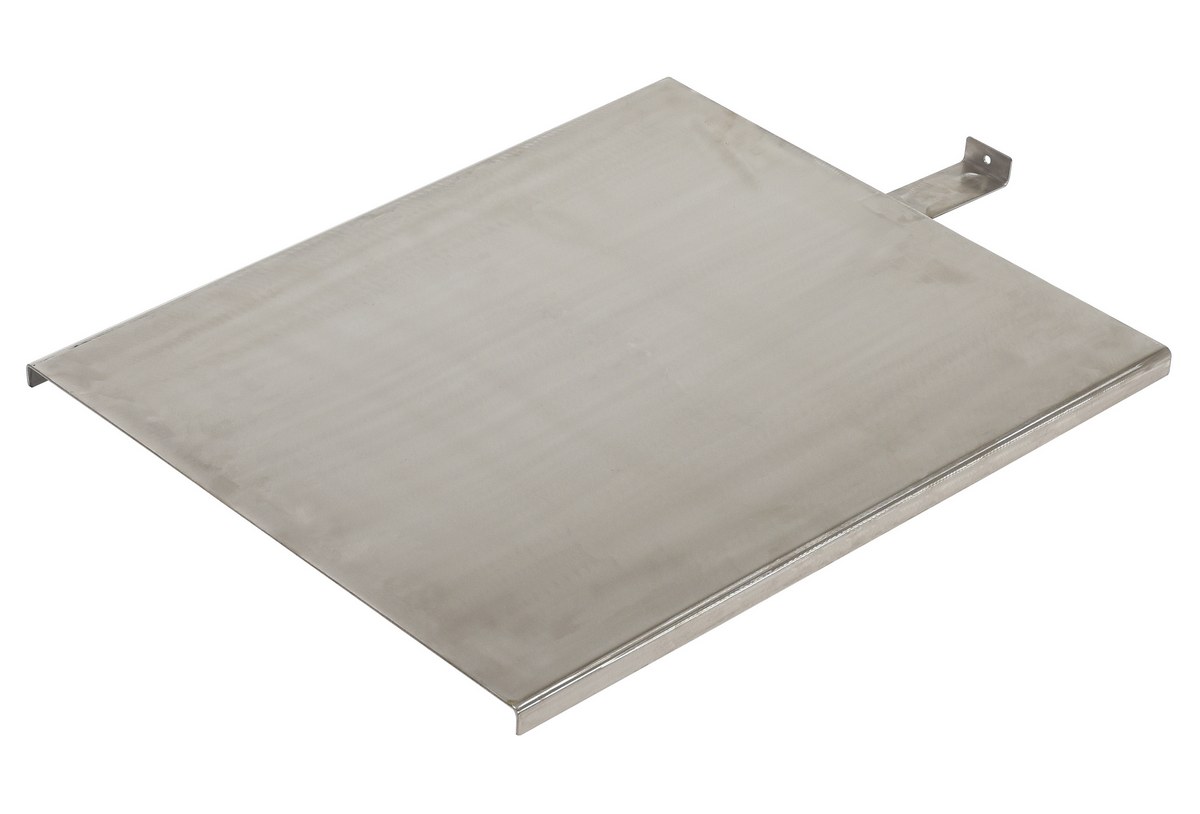

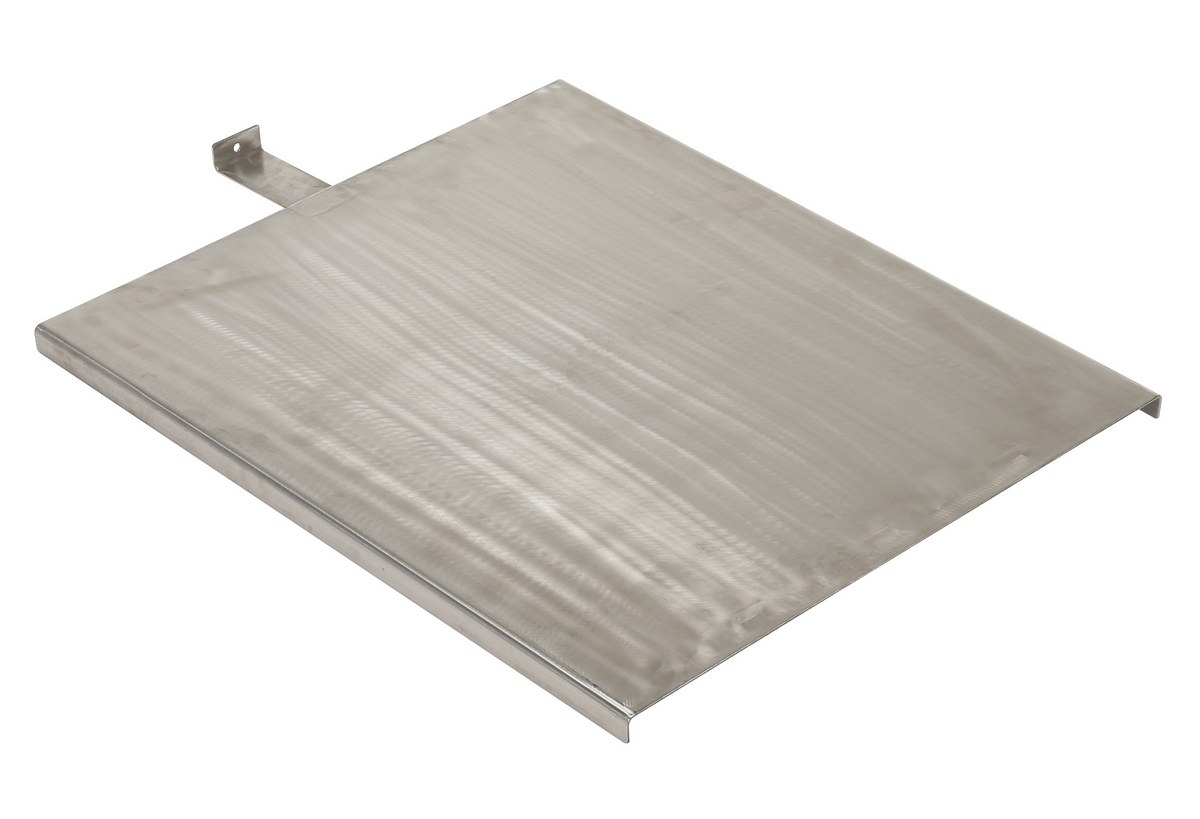

HYDC-SSP HYDC-SSP90 Days Limited WarrantyStainless Steel Platform Attachment 25-3/4 In. x 22 In. For Hefti-Lift Models SilverUsable Width (in.): 22
Usable Length (in.): 25-3/4
22

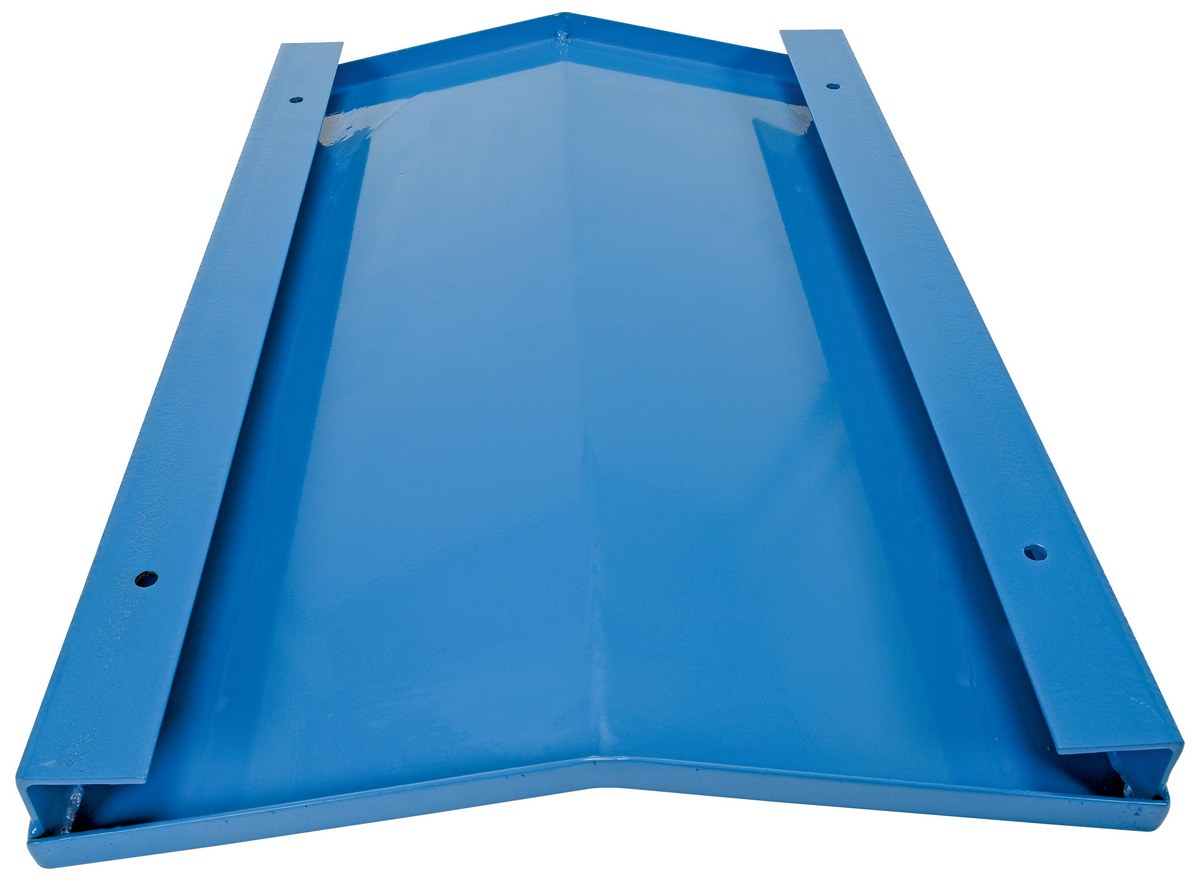

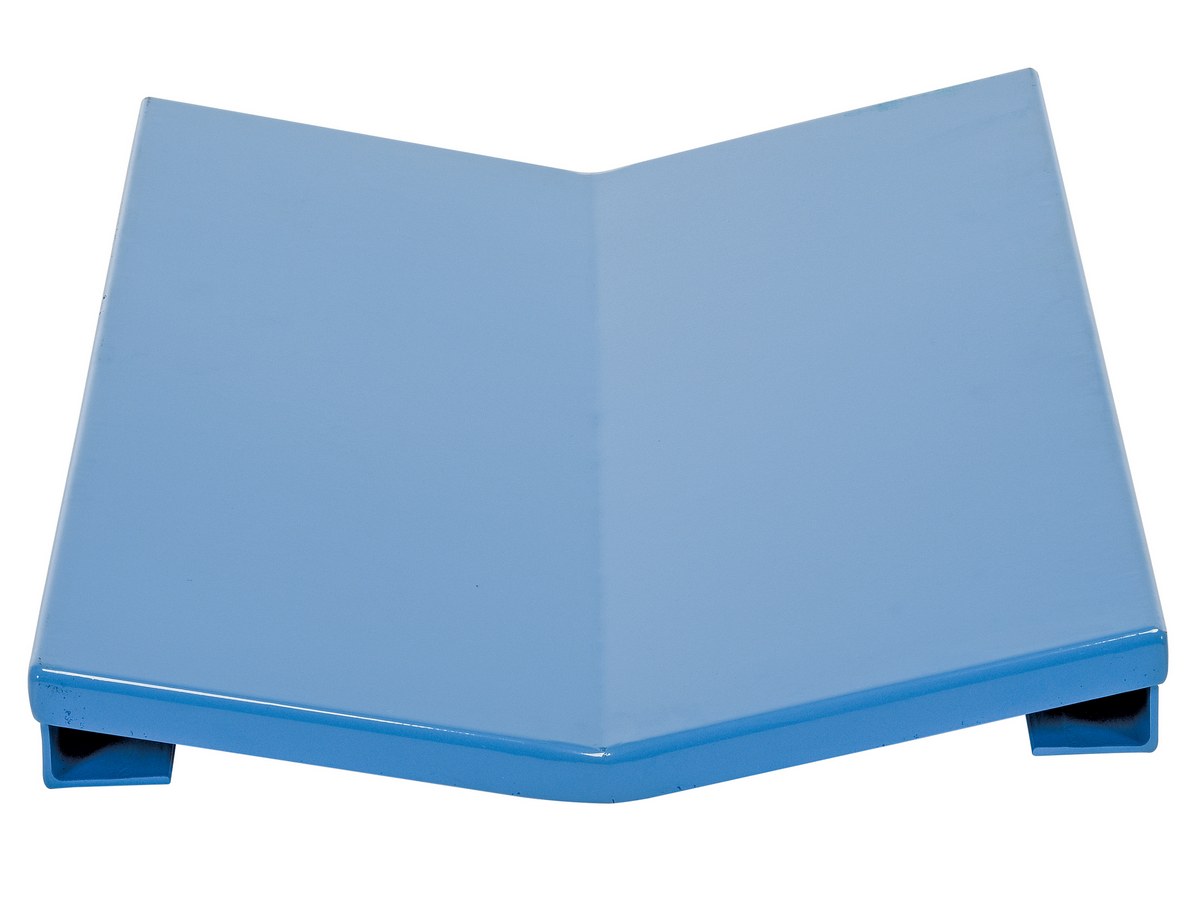

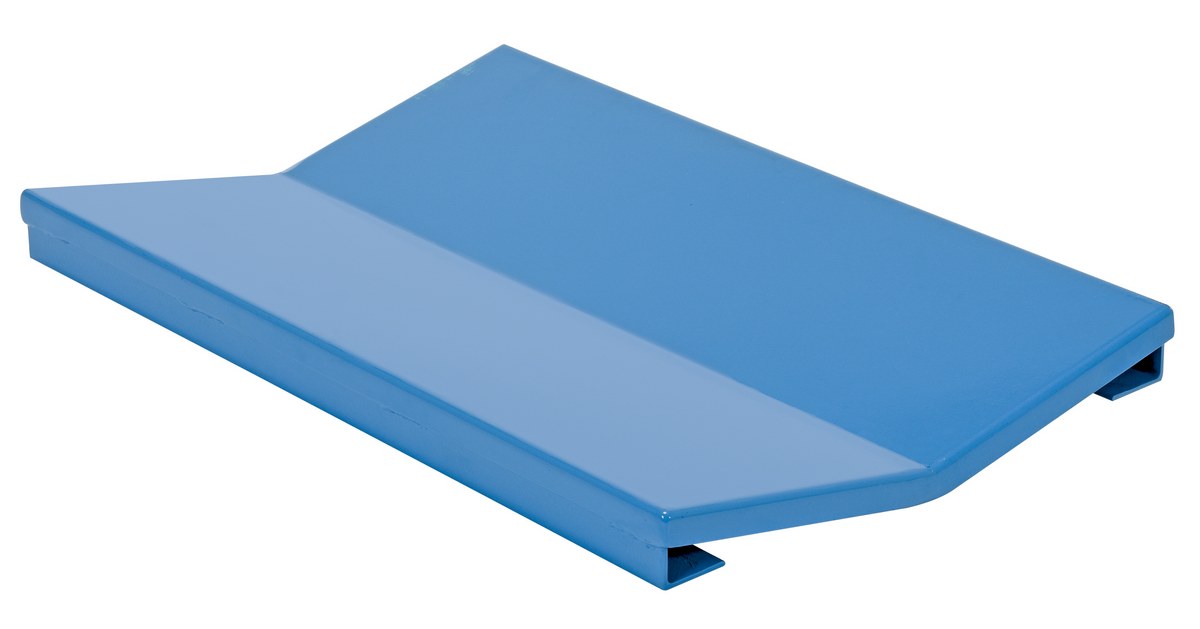

HYDC-VBLK HYDC-VBLK90 Days Limited WarrantySteel V-Block Conveyor Attachment For Hefti-Lift Models BlueAttachment Method:
27

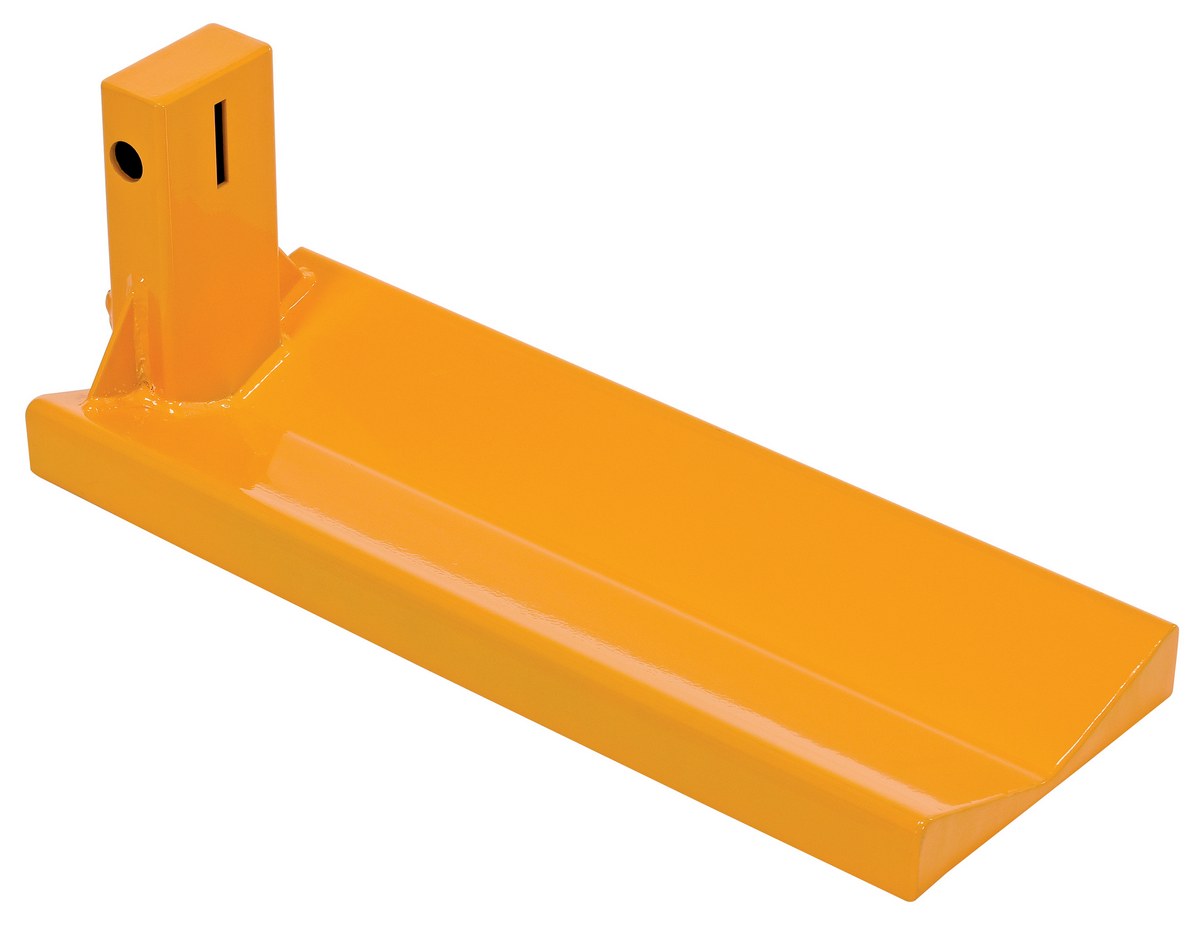

HYDC-VFRK HYDC-VFRK90 Days Limited WarrantySteel V Fork Attachment For Hefti-Lift Models YellowAttachment Method:
28

.

If you did not find an expected Model or SKU # in this table, try the Product Specifications Section Above

DC Powered Hefti-Lifts PDF's will open in a new window when clicked.

Manuals


Survey Sheets

No Survey Sheets For This Product


Approval Drawings

Testing Certificates


HYD-10-DC

HYD-10-DC-SS

HYD-CB-10-DC

HYDC-BTP

HYDC-DSPIN

HYDC-FRKHK

HYDC-RP

HYDC-RR

HYDC-SPIN

HYDC-SSP

HYDC-VBLK

HYDC-VFRK

SDS Sheets

Midwest Battery - Lead/Acid Battery, Wet, Filled with Acid SDS Sheet for: HYD-10-DC
Hydraulic Oil SDS Sheet for: HYD-10-DC
Hydraulic Oil SDS Sheet for: HYD-10-DC-SS
Valve-Regulated Lead Acid Batteries SDS Sheet for: HYD-CB-10-DC
Hydraulic Oil SDS Sheet for: HYD-CB-10-DC

Other PDF's


Directory Links Of Available PDF's For All Products


Q: What is the capacity of the HYDC-SPIN?

A: The HYDC-SPIN capacity is 400 lbs.


Q: Are the forks adjustable on the HYD-10-DC?

A: Yes, when the forks are extended, overall fork width is 21-5/8", and when forks are retracted the overall fork width is 9".


Q: What is the capacity of the HYDC-FRKHK?

A: The HYDC-FRKHK has a 600 lb. capacity.


Q: What is the turning radius of HYD-CB-10-DC?

A: The turning radius of HYD-CB-10-DC is 34-1/4"
