Adjustable Pallet Stands

- - - -

Description
Model Chart
Options
PDF's
Image Gallery

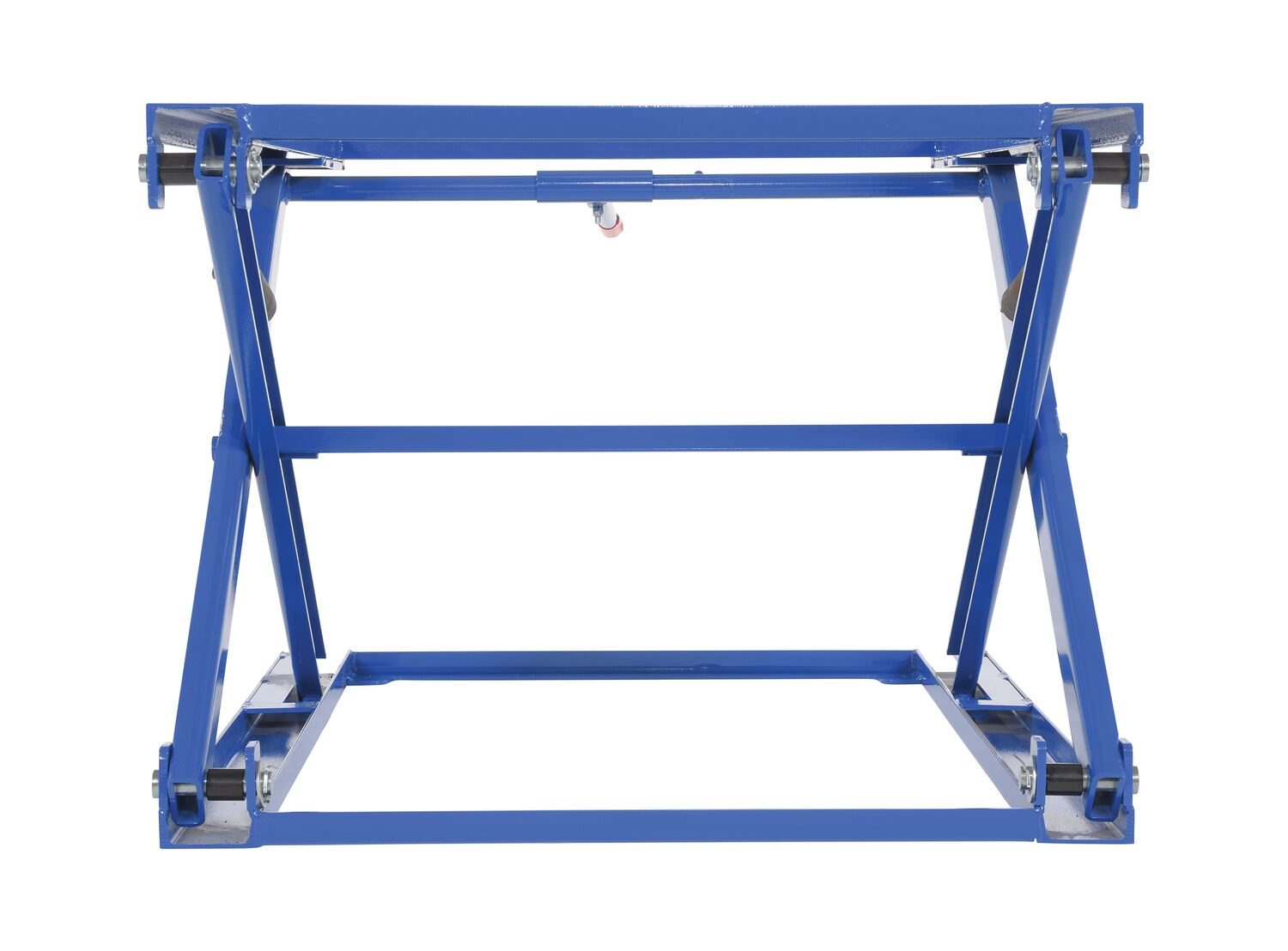

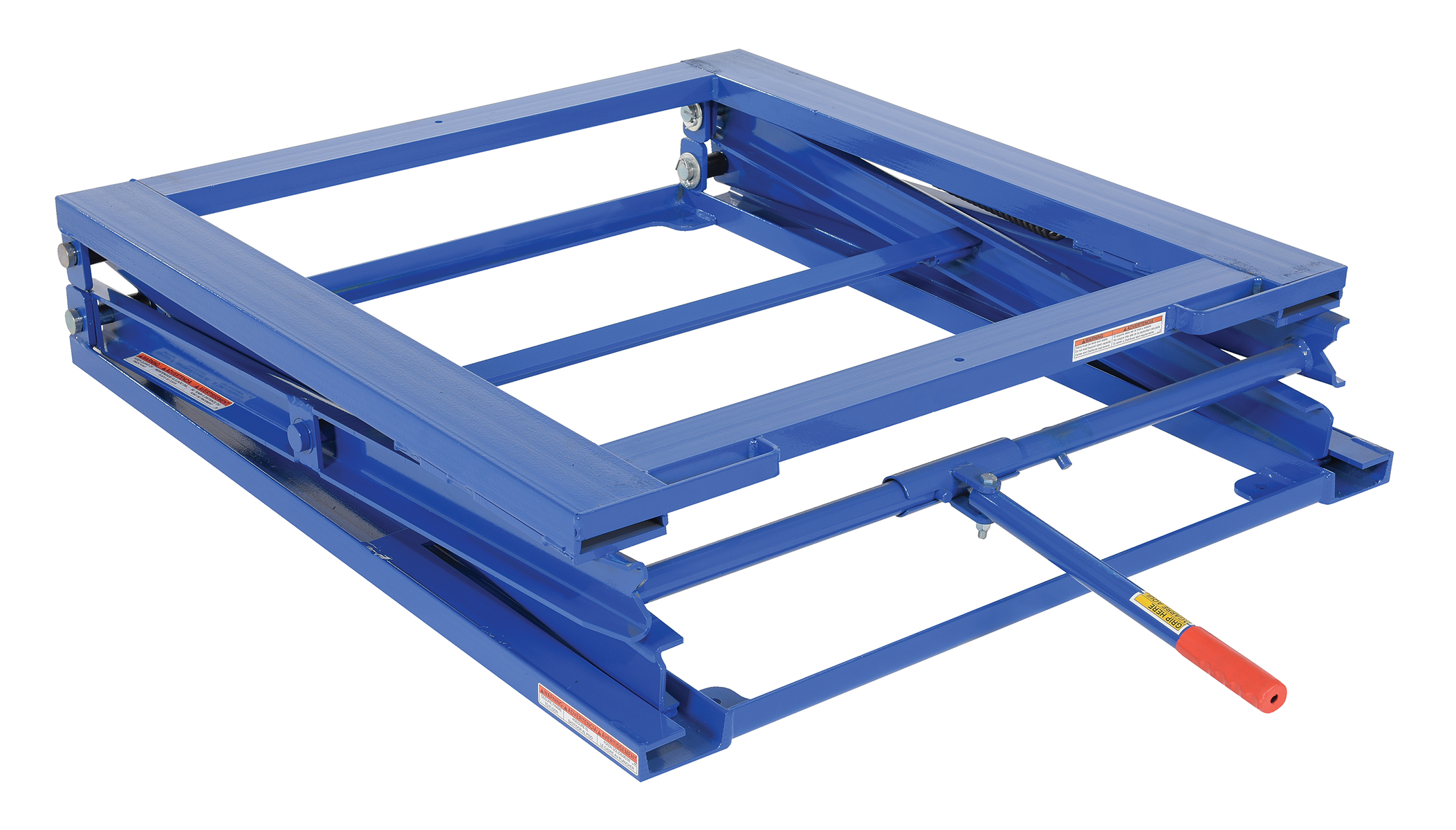

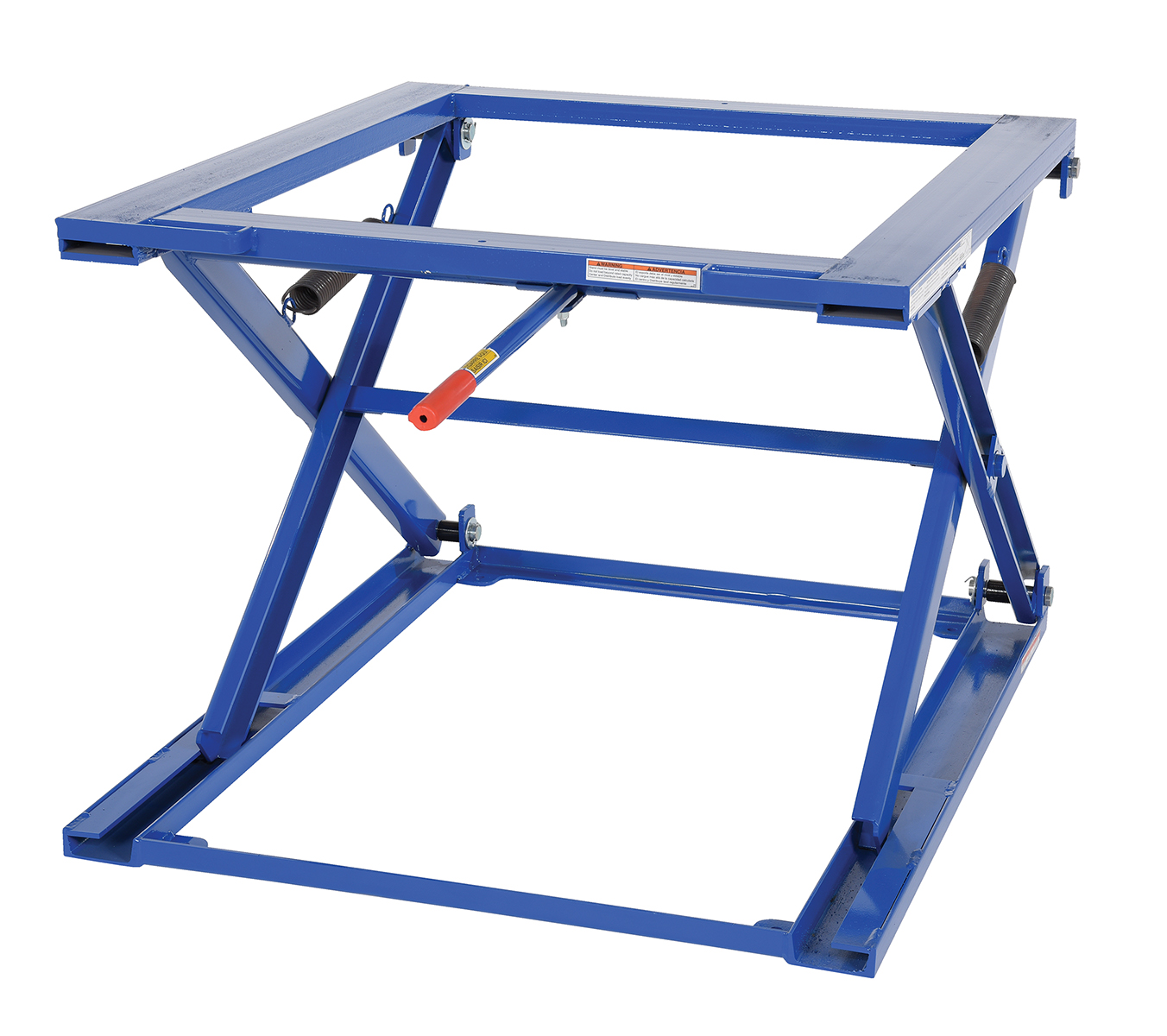

PS-4045_B.jpg PS-4045_A.jpg PS-4045_C.jpg PS-4045_D.jpg
PS-4045_E.jpg PS-4045_F.jpg PS-4045_G.jpg

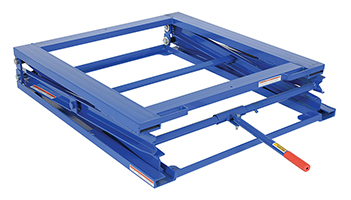

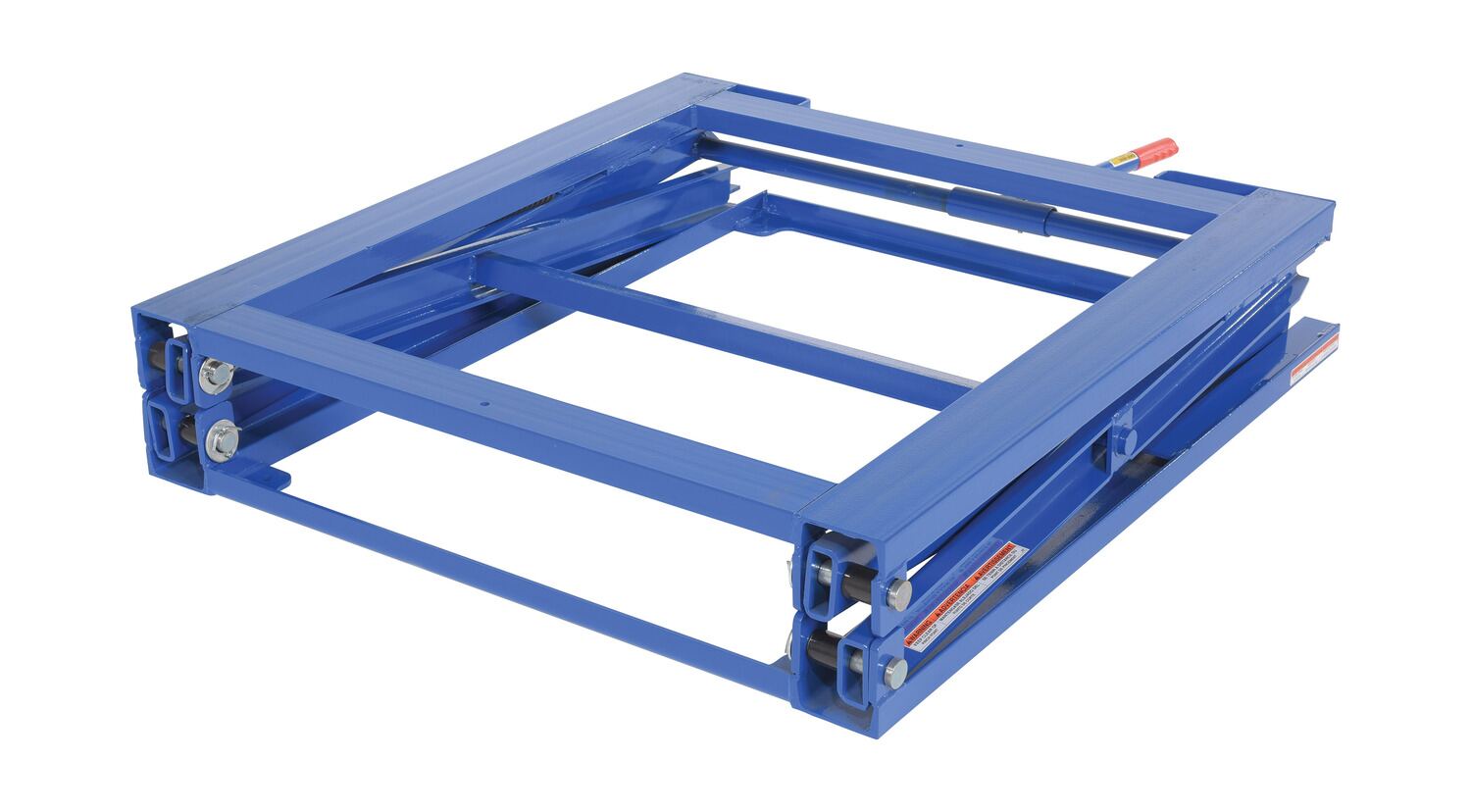

Adjustable Pallet Stands

model: PS-4045



Featured Ergonomic Solutions


Electric/Hydraulic Box Dumpers
Rotary Air/Hydraulic Scissor Lift Tables
Machinery Jacks
Safety Back Rest for Pallet Jacks
Gravity Roller Conveyor System
Counter Balanced Lite Load Lift
Powered All Terrain Stackers and Pallet Trucks
Low Profile Pallet Trucks
Trash Can Carts
model chart

Product Family Overview

Print Friendly
Adjustable Pallet Stands
SERIES: PS

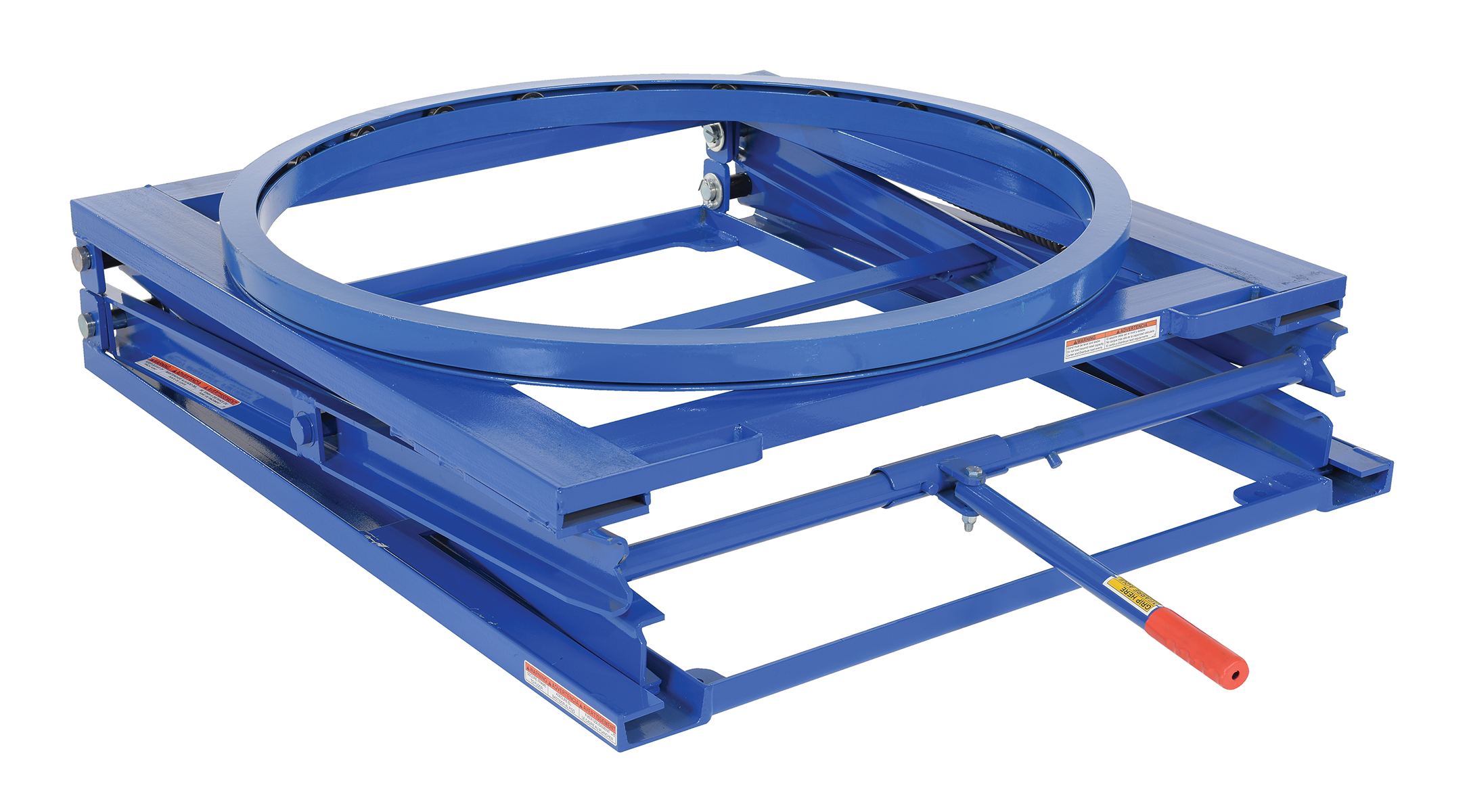

The Adjustable Height Pallet Stand is designed to manually adjust to three different ergonomic working heights. Unit includes a three position manual adjusting bar with spring assist to help raise and lower the deck. The Pallet Stand must be empty when adjusting the height. Unit is welded steel construction and includes a blue baked-in powder coated finish for added toughness. The optional bolt on manual carousel, suffix CA, is 40" in diameter by 2" tall and rotates 360 degrees. The caster feature, suffix CK, consists of 6" x 2" glass filled-nylon (2) rigid and (2) swivel casters with brake.

  • Unique design works as a variable-height ergonomic work station

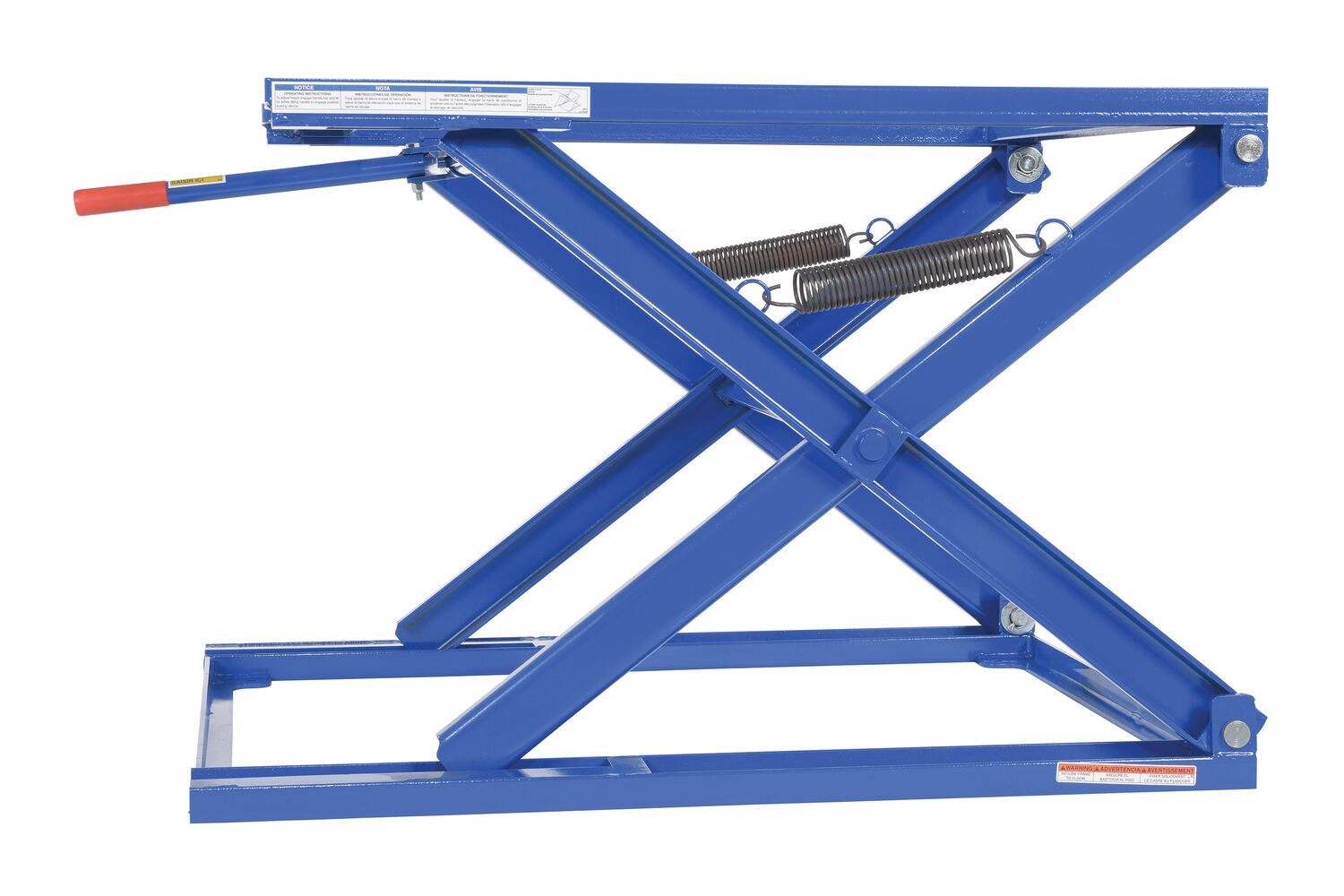

  • Built-in springs assist with height adjustment
  • Welded steel construction provides long lasting use
  • Powder coat blue finish gives unit an attractive appearance and long lasting coat


How To Operate The Unit:

The Handle Bar has three settings. The Middle, or neutral position, for storage. The Left setting for moving the stand from storage position into the first position, and the Right setting is for moving the stand from first position to the second or third position.

  1. Slide Handle Bar from the Middle position either Left or Right, depending on the position needed, and lift up on lift handles.
  2. Once unit is at desired height put the Handle Bar back into the Middle or neutral position.

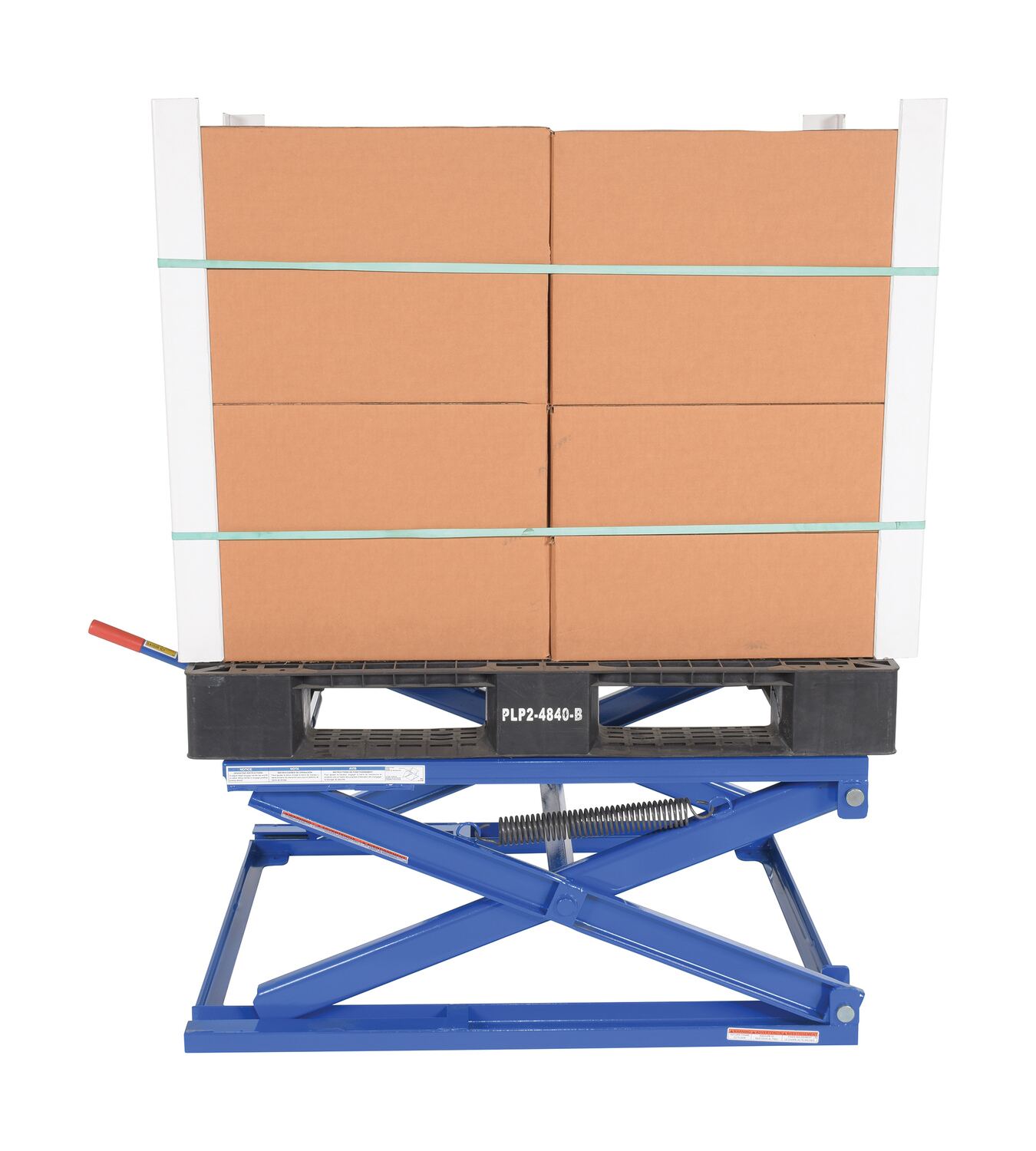

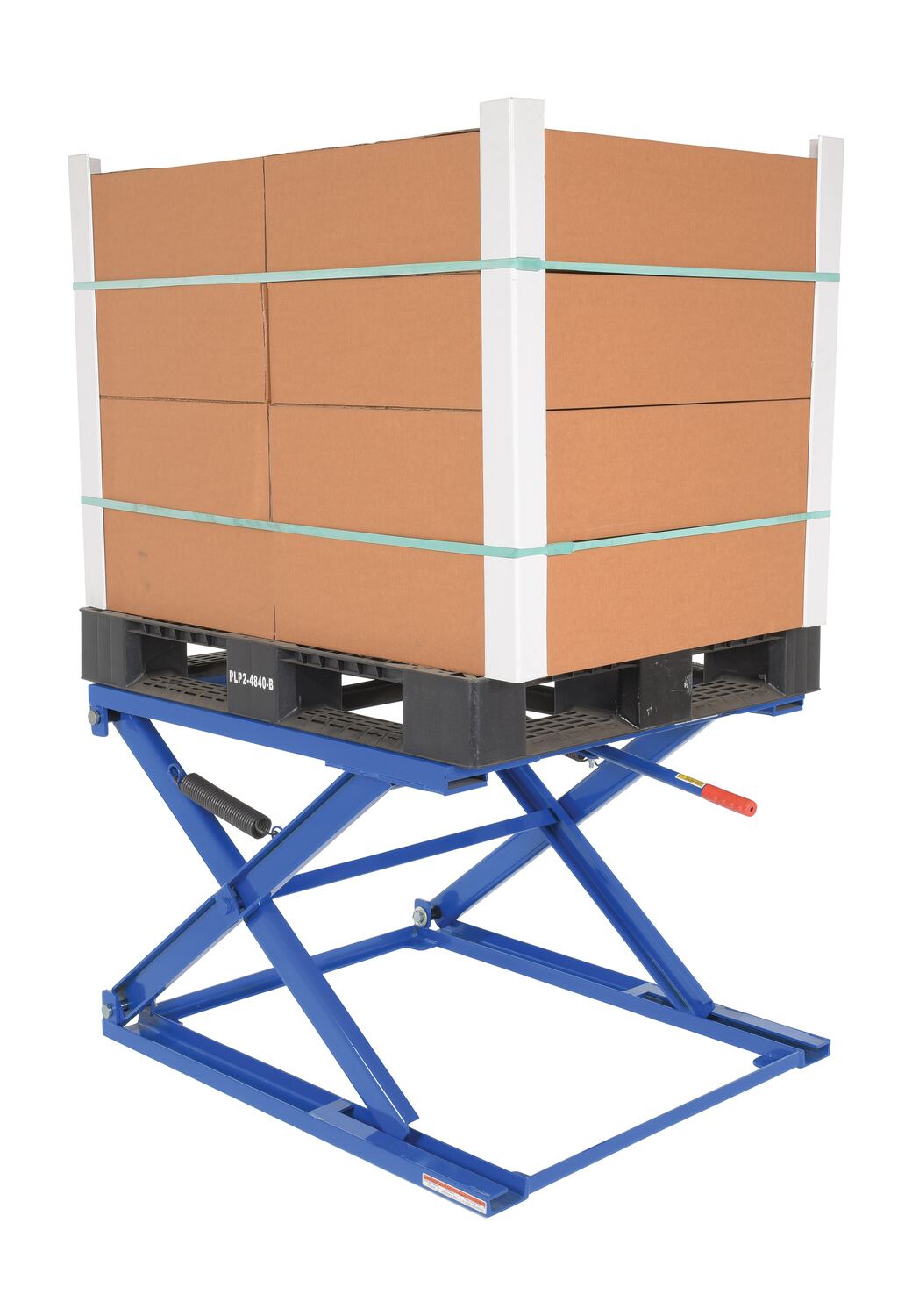

  3. Align/set pallet evenly onto stand.
  4. The pallet MUST BE REMOVED before adjusting stand to another work height.

The Adjustable Height Pallet Stand is designed to manually adjust to three different ergonomic working heights. Unit includes a three position manual adjusting bar with spring assist to help raise and lower the deck. The Pallet Stand must be empty when adjusting the height. Unit is welded steel construction and includes a blue baked-in powder coated finish for added toughness. The optional bolt on manual carousel, suffix CA, is 40" in diameter by 2" tall and rotates 360 degrees. The caster feature, suffix CK, consists of 6" x 2" glass filled-nylon (2) rigid and (2) swivel casters with brake.

  • Unique design works as a variable-height ergonomic work station
  • Built-in springs assist with height adjustment
  • Welded steel construction provides long lasting use
  • Powder coat blue finish gives unit an attractive appearance and long lasting coat


How To Operate The Unit:

The Handle Bar has three settings. The Middle, or neutral position, for storage. The Left setting for moving the stand from storage position into the first position, and the Right setting is for moving the stand from first position to the second or third position.

  1. Slide Handle Bar from the Middle position either Left or Right, depending on the position needed, and lift up on lift handles.
  2. Once unit is at desired height put the Handle Bar back into the Middle or neutral position.
  3. Align/set pallet evenly onto stand.
  4. The pallet MUST BE REMOVED before adjusting stand to another work height.

Other Elevating Lift Carts

 Stainless Steel Scissor Carts Low Profile Scissor Lift Cart Lift & Tilt Carts with Sequence Select Heavy Duty Low Profile Scissor Lift Cart

Additional Models In This Family
view entire Image Gallery

PS-4045-CA

model PS-4045-CA

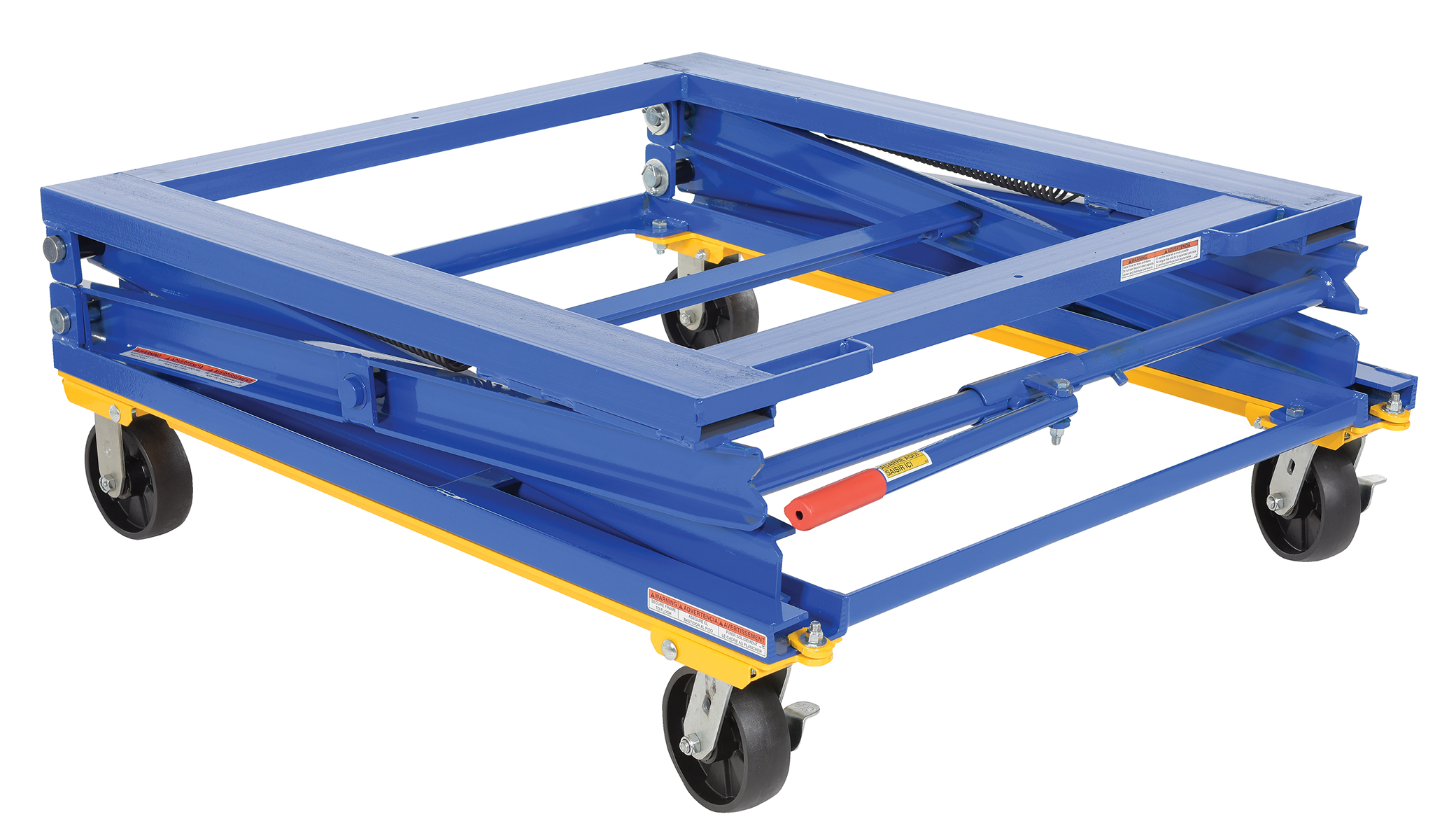

PS-4045-CK

model PS-4045-CK

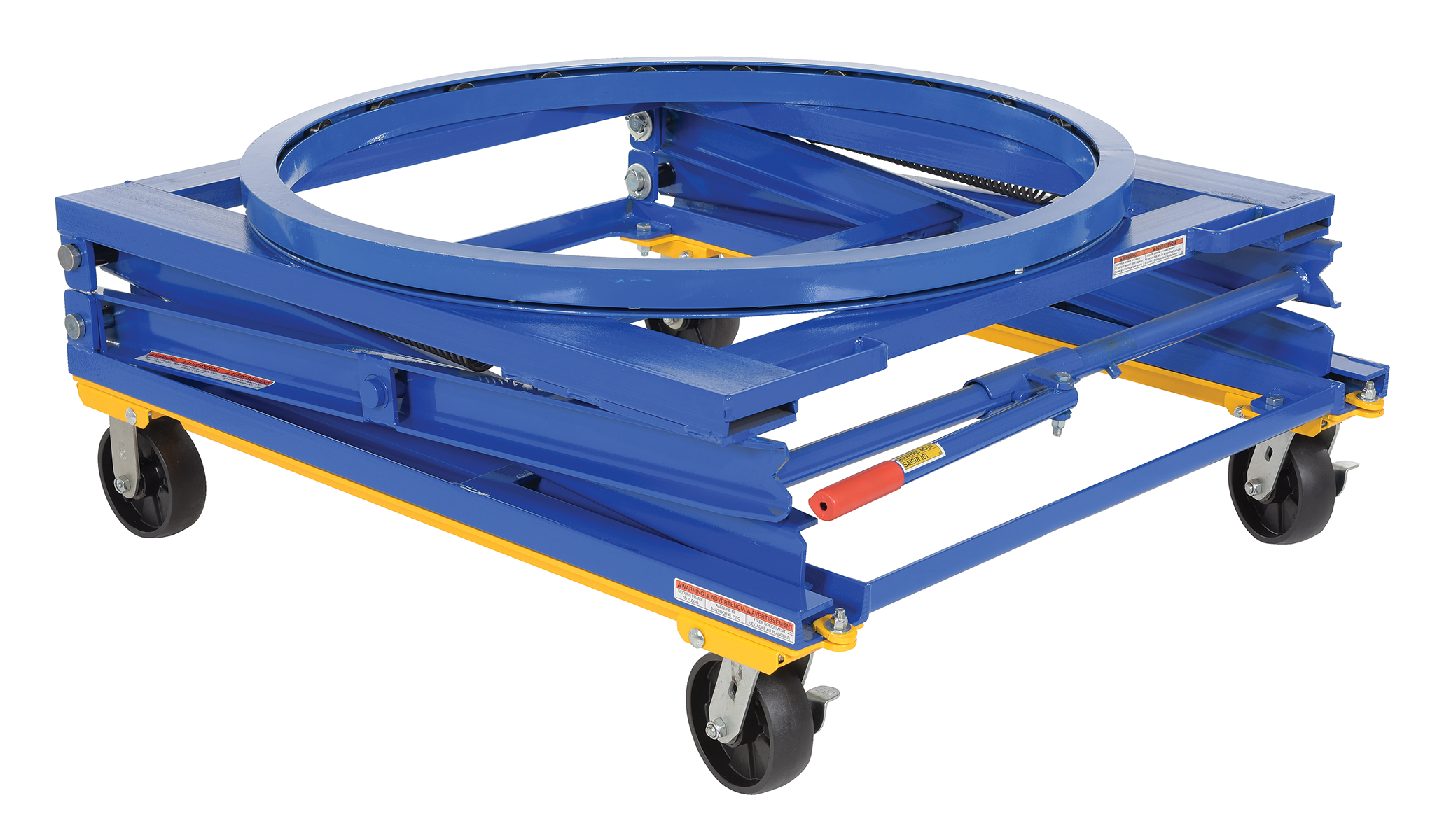

PS-4045-CA-CK

model PS-4045-CA-CK

PS-RF-CK

model PS-RF-CK

Applications



Packaging Areas

Postal Services

Warehouses
model chart
How To Purchase

Model Specific Details

All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
The Search Box below is within the Model Chart for this Product Family (on this current page). Not an entire site search.
Model # Description Attributes Net Wt.
(lbs)
PS-4045 PS-404590 Days Limited WarrantySteel Adjustable Pallet Stand 45-3/4 In. x 40-1/2 In. x 10 In. 5000 Lb. Capacity BlueUniform Capacity (lb.): 5,000
Lowered Height (in.): 10		253
PS-4045-CK PS-4045-CK90 Days Limited WarrantySteel Adjustable Pallet Stand with Casters 48-13/16 In. x 40-1/2 In. x 17-1/16 In. 1500 Lb. Capacity BlueUniform Capacity (lb.): 1,500
Lowered Height (in.): 17-1/16		320
PS-4045/CA PS-4045/CA90 Days Limited WarrantySteel Adjustable Pallet Carousel Stand 45-3/4 In. x 40-1/2 In. x 12-1/4 In. 4000 Lb. Capacity BlueUniform Capacity (lb.): 4,000
Lowered Height (in.): 12-1/4		312
PS-4045/CA-CK PS-4045/CA-CK90 Days Limited WarrantySteel Adjustable Pallet Carousel Stand with Casters 48-13/16 In. x 40-1/2 In. x 19-1/16 In. 1500 Lb. Capacity BlueUniform Capacity (lb.): 1,500
Lowered Height (in.): 19-1/16		333

KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = 360 Image Warranty
= Works w/ Skid Only = Flatbed Truck Required

If you did not find an expected Model or SKU # in the table, try the Options Section Below

PS-4045
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 5,000
Lowered Height (in.): 10
Uniform Capacity (lb.): 5,000
Lowered Height (in.): 10

PS-4045-CK
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 1,500
Lowered Height (in.): 17-1/16
Uniform Capacity (lb.): 1,500
Lowered Height (in.): 17-1/16

PS-4045/CA
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 4,000
Lowered Height (in.): 12-1/4
Uniform Capacity (lb.): 4,000
Lowered Height (in.): 12-1/4

PS-4045/CA-CK
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 1,500
Lowered Height (in.): 19-1/16
Uniform Capacity (lb.): 1,500
Lowered Height (in.): 19-1/16
For More Details of the Option Click the Red Model Button

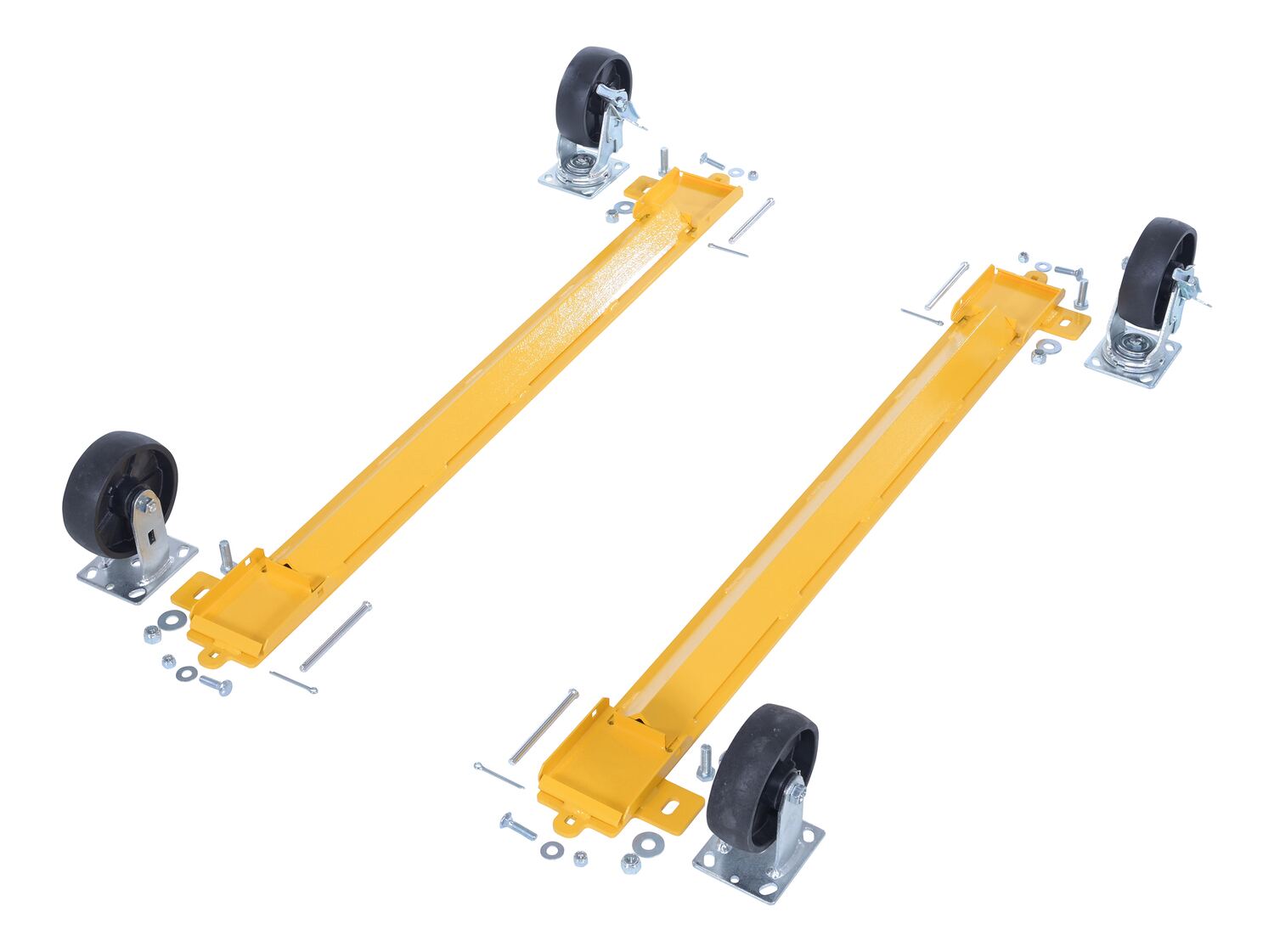

PS-RF-CK PS-RF-CK90 Days Limited WarrantyGlass Filled Nylon Caster Kit 6 In x 2 In For Adjustable Pallet Stand Models Black / YellowCaster Quantity/Diameter/Width (in.): (4) 6 x 2
Caster Quantity/Type: (2) Rigid (2) Swivel with Brake		60

.

If you did not find an expected Model or SKU # in this table, try the Product Specifications Section Above
Adjustable Pallet Stands PDF's will open in a new window when clicked.

Manuals


PS-4045
Owners Manual

Survey Sheets

No Survey Sheets For This Product


Approval Drawings


PS-4045

PS-4045-CK

PS-4045/CA

PS-4045/CA-CK

PS-RF-CK

Testing Certificates


PS-4045

PS-4045-CK

PS-RF-CK

SDS Sheets

Hydraulic Oil SDS Sheet for: PS-4045
Hydraulic Oil SDS Sheet for: PS-4045/CA
Hydraulic Oil SDS Sheet for: PS-4045/CA-CK
Hydraulic Oil SDS Sheet for: PS-4045-CK

Other PDF's

No "Other PDFs" For This Product...


Directory Links Of Available PDF's For All Products

Manuals
Survey Sheets
Drawings
Certificates of Testing
Warranties
SDS Data Sheets







Visit Our Youtube Channel For All Available Videos For All Products

Related or Similar Products:

Die Tables
Product

Die Tables

Air Hydraulic Post Tables
Product

Air Hydraulic Post Tables

Linear Actuated Post Table
Product

Linear Actuated Post Table

Mechanical Post Tables
Product

Mechanical Post Tables

Long Deck Carts
Product

Long Deck Carts

Battery Transfer Platforms
Product

Battery Transfer Platforms

Before placing an order, please confirm that the ship to company is able to receive shipments on the estimated delivery date





Adjustable Pallet Stands




The Adjustable Height Pallet Stand is designed to manually adjust to three different ergonomic working heights. Unit includes a three position manual adjusting bar with spring assist to help raise and lower the deck. The Pallet Stand must be empty when adjusting the height. Unit is welded steel construction and includes a blue baked-in powder coated finish for added toughness. The optional bolt on manual carousel, suffix CA, is 40" in diameter by 2" tall and rotates 360 degrees. The caster feature, suffix CK, consists of 6" x 2" glass filled-nylon (2) rigid and (2) swivel casters with brake.

  • Unique design works as a variable-height ergonomic work station
  • Built-in springs assist with height adjustment
  • Welded steel construction provides long lasting use
  • Powder coat blue finish gives unit an attractive appearance and long lasting coat


How To Operate The Unit:

The Handle Bar has three settings. The Middle, or neutral position, for storage. The Left setting for moving the stand from storage position into the first position, and the Right setting is for moving the stand from first position to the second or third position.

  1. Slide Handle Bar from the Middle position either Left or Right, depending on the position needed, and lift up on lift handles.
  2. Once unit is at desired height put the Handle Bar back into the Middle or neutral position.
  3. Align/set pallet evenly onto stand.
  4. The pallet MUST BE REMOVED before adjusting stand to another work height.

Model # Description Attributes Net Wt.
(lbs)
PS-4045 PS-4045Steel Adjustable Pallet Stand 45-3/4 In. x 40-1/2 In. x 10 In. 5000 Lb. Capacity BlueUniform Capacity (lb.): 5,000
Lowered Height (in.): 10		253
PS-4045-CK PS-4045-CKSteel Adjustable Pallet Stand with Casters 48-13/16 In. x 40-1/2 In. x 17-1/16 In. 1500 Lb. Capacity BlueUniform Capacity (lb.): 1,500
Lowered Height (in.): 17-1/16		320
PS-4045/CA PS-4045/CASteel Adjustable Pallet Carousel Stand 45-3/4 In. x 40-1/2 In. x 12-1/4 In. 4000 Lb. Capacity BlueUniform Capacity (lb.): 4,000
Lowered Height (in.): 12-1/4		312
PS-4045/CA-CK PS-4045/CA-CKSteel Adjustable Pallet Carousel Stand with Casters 48-13/16 In. x 40-1/2 In. x 19-1/16 In. 1500 Lb. Capacity BlueUniform Capacity (lb.): 1,500
Lowered Height (in.): 19-1/16		333
