Fixed Height Steel Gantry Cranes - Knockdown

Print Friendly

Model Chart
PDF's
Options
Image Gallery
FEATURED Fixed Height Steel Gantry Cranes - Knockdown

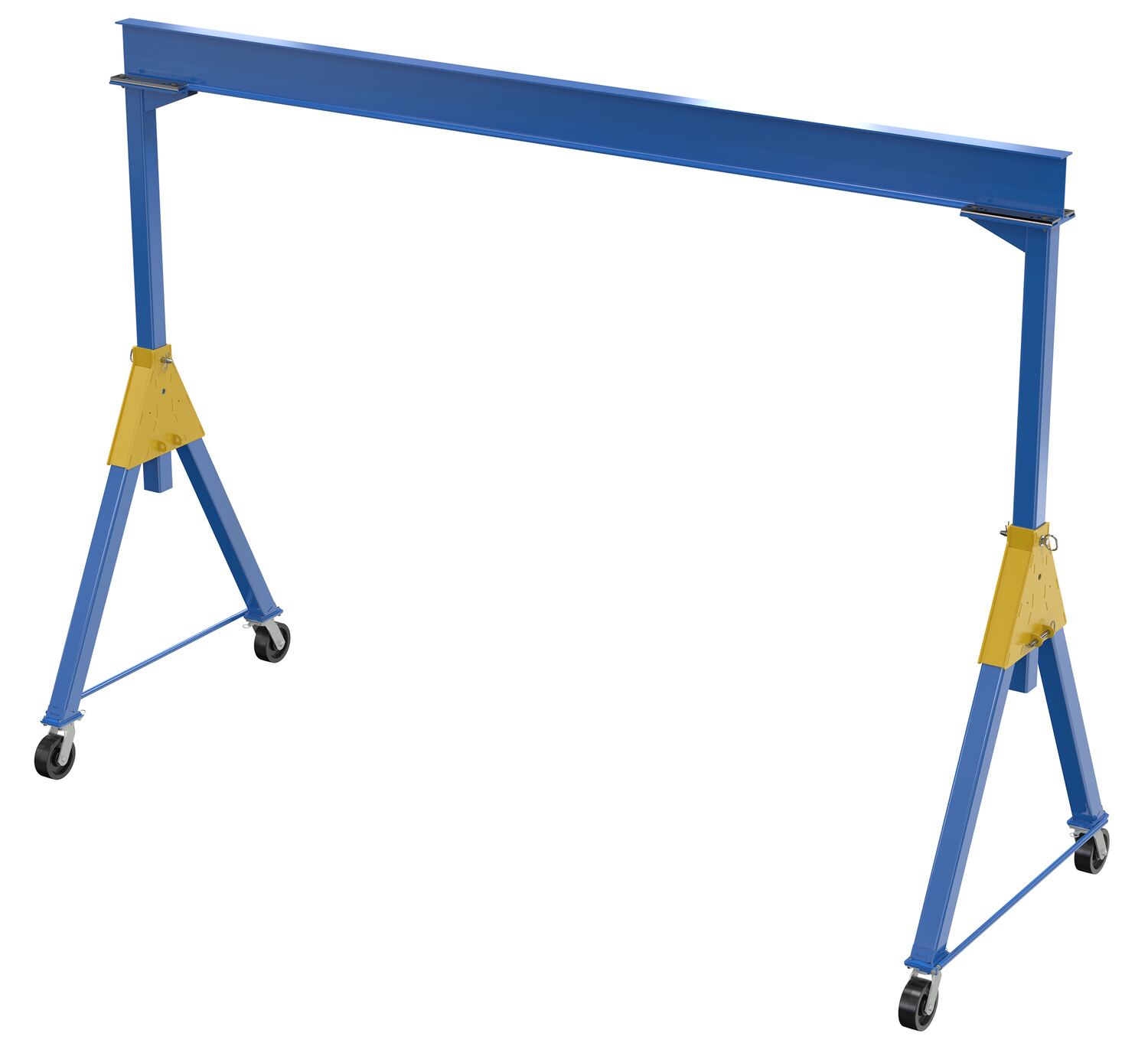

model: FHSN-8-15

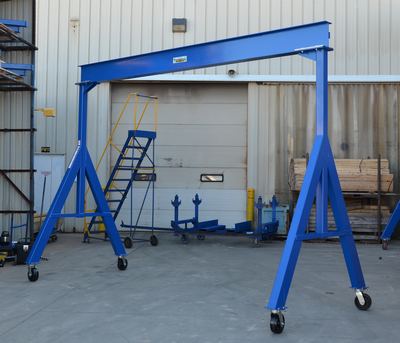

FHSN-8-15_1.jpg FHSN-8-15_A.jpg More Images +
Fixed Height Steel Gantry Cranes - Knockdown
SERIES: FHSN   14Products 2Options
Custom Fabrication

Knockdown Fixed Height Steel Gantry Cranes for Industrial Lifting

Knockdown fixed height steel gantry cranes provide a durable lifting solution for shops, warehouses, maintenance departments, fabrication areas, and jobsite material handling applications. Designed for semi-permanent or permanent use, these cranes help lift and position heavy loads where overhead lifting is needed without installing a fixed building-mounted crane system.

Knockdown Design for Storage and Transport

The knockdown construction allows the gantry crane to be disassembled when not in use, supporting compact storage and easier transportation between work areas or jobsites. The quick setup design helps facilities adapt lifting equipment to changing workflow needs. Assistance from a fork truck is required during setup.

Heavy-Duty Steel Construction

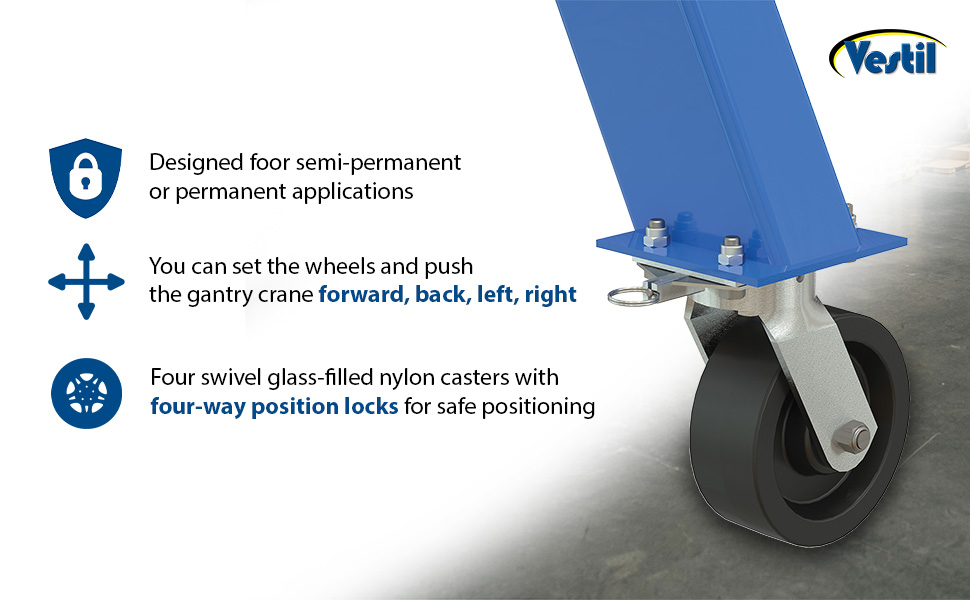

Welded steel construction and a durable blue painted finish provide long-lasting performance in demanding industrial environments. Four 8 inch swivel casters with four-position locks support mobility and controlled positioning when the unit is unloaded. Caster materials vary by capacity, with glass-filled nylon, phenolic, or steel casters depending on model.

Capacities, Lengths, and Options

This family includes capacities from 2,000 lb. to 10,000 lb. and I-beam lengths from 10 feet to 20 feet, giving distributors and end users a range of lifting spans and load ratings. Hoists & Trollies can be ordered seperately.  Available options include power traction drives, V-groove track, and stationary leg kits for select models. Units should not be moved while loaded.  All units comply with applicable ANSI specifications.

Check Out Vestil's Other Gantry Crane Styles:
Adj. Height Steel Gantry Cranes w/ 4-Position Locking Casters | Adj. Height Steel Gantry Cranes w/ V-Groove Casters | Adj. Height Steel Gantry Cranes w/ Total Locking Casters | Adj. Height Steel Gantry Cranes w/ Pneumatic Casters | Adj. Height Knockdown Steel Gantry Cranes w/ 4-Position Locking Casters | Adj. Height Knockdown Steel Gantry Cranes w/ V-Groove Casters | Adj. Height Knockdown Steel Gantry Cranes w/ Total Locking Casters | Adj. Height Aluminum Gantry Cranes w/ 4-Position Locking Casters | Adj. Height Aluminum Gantry Cranes w/ V-Groove Casters | Adj. Height Aluminum Gantry Cranes w/ Total Locking Casters | Adj. Height Aluminum Gantry Cranes w/ Pneumatic Casters | Adj. Height Aluminum Gantry Cranes w/ Adj. Leveling Option | Fixed Height Steel Gantry Cranes w/ 4-Position Locking Casters | Fixed Height Steel Gantry Cranes w/ V-Groove Casters | Fixed Height Steel Gantry Cranes w/ Total Locking Casters | Fixed Height Steel Gantry Cranes w/ Pneumatic Casters | Fixed Height Knockdown Steel Gantry Cranes w/ V-Groove Casters | Fixed Height Knockdown Steel Gantry Cranes w/ Total Locking Casters | Fixed Height Aluminum Gantry Cranes w/ 4-Position Locking Casters | Fixed Height Aluminum Gantry Cranes w/ Adj. Leveling Option

Fixed Height Steel Gantry Cranes - Knockdown

model: FHSN-8-15

Model # Description Attributes Net Wt.
(lbs)

All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.

KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = BABAA Compliant = 360 Image Warranty
= New Images Coming Soon! = Dimension Image = Works w/ Skid Only = Flatbed Truck Required

If you did not find an expected Model or SKU # in the table, try the Options Section Below
FHSN-10-10
FHSN-10-15
FHSN-2-10
FHSN-2-15
FHSN-2-20
FHSN-4-10
FHSN-4-15
FHSN-4-20
FHSN-6-10
FHSN-6-15
FHSN-6-20
FHSN-8-10
FHSN-8-15
FHSN-8-20
For More Details of the Option Click the Red Model Button
Model Image Details Icons Wt.
Model Image PDFs Description
GPTD-2 icon_approvaldrawings.jpg GANTRY CRANE POWER TRACTION 2K TO 4K
GPTD-4 icon_approvaldrawings.jpg GANTRY CRANE POWER TRACTION 6K TO 8K
V-TRACK icon_approvaldrawings.jpg GANTRY CRANE-V-GROOVE TRACK 120 IN
FHS-STLO icon_approvaldrawings.jpg STATIONARY LEG OPTION, set of 4 (factory installed) Not compatible with 10,000 lbs. units
FHS-STLO-RF icon_approvaldrawings.jpg STATIONARY LEG OPTION, set of 4 (field installed) Not compatible with 10,000 lbs. units
If you did not find an expected Model or SKU # in this table, try the Product Specifications Section Above
PDFs will open in a new window when clicked.

Owner's Manuals

1
FHSN, MANUAL
Open Manual

Survey Sheets

0
No survey sheets for this product family.

Approval Drawings

14
FHSN-10-10
Open Drawing
FHSN-10-15
Open Drawing
FHSN-2-10
Open Drawing
FHSN-2-15
Open Drawing
FHSN-2-20
Open Drawing
FHSN-4-10
Open Drawing
FHSN-4-15
Open Drawing
FHSN-4-20
Open Drawing
FHSN-6-10
Open Drawing
FHSN-6-15
Open Drawing
FHSN-6-20
Open Drawing
FHSN-8-10
Open Drawing
FHSN-8-15
Open Drawing
FHSN-8-20
Open Drawing

Testing Certificates

14
FHSN-10-10
Open Certificate
FHSN-10-15
Open Certificate
FHSN-2-10
Open Certificate
FHSN-2-15
Open Certificate
FHSN-2-20
Open Certificate
FHSN-4-10
Open Certificate
FHSN-4-15
Open Certificate
FHSN-4-20
Open Certificate
FHSN-6-10
Open Certificate
FHSN-6-15
Open Certificate
FHSN-6-20
Open Certificate
FHSN-8-10
Open Certificate
FHSN-8-15
Open Certificate
FHSN-8-20
Open Certificate

SDS Sheets

0
No SDS sheets for this product family.

Other PDFs

0
No other PDFs for this product family.

Related or Similar Products:

More From Gantry Cranes





Fixed Height Steel Gantry Cran...




Knockdown Fixed Height Steel Gantry Cranes for Industrial Lifting

Knockdown fixed height steel gantry cranes provide a durable lifting solution for shops, warehouses, maintenance departments, fabrication areas, and jobsite material handling applications. Designed for semi-permanent or permanent use, these cranes help lift and position heavy loads where overhead lifting is needed without installing a fixed building-mounted crane system.

Knockdown Design for Storage and Transport

The knockdown construction allows the gantry crane to be disassembled when not in use, supporting compact storage and easier transportation between work areas or jobsites. The quick setup design helps facilities adapt lifting equipment to changing workflow needs. Assistance from a fork truck is required during setup.

Heavy-Duty Steel Construction

Welded steel construction and a durable blue painted finish provide long-lasting performance in demanding industrial environments. Four 8 inch swivel casters with four-position locks support mobility and controlled positioning when the unit is unloaded. Caster materials vary by capacity, with glass-filled nylon, phenolic, or steel casters depending on model.

Capacities, Lengths, and Options

This family includes capacities from 2,000 lb. to 10,000 lb. and I-beam lengths from 10 feet to 20 feet, giving distributors and end users a range of lifting spans and load ratings. Hoists & Trollies can be ordered seperately.  Available options include power traction drives, V-groove track, and stationary leg kits for select models. Units should not be moved while loaded.  All units comply with applicable ANSI specifications.

Check Out Vestil's Other Gantry Crane Styles:
Adj. Height Steel Gantry Cranes w/ 4-Position Locking Casters | Adj. Height Steel Gantry Cranes w/ V-Groove Casters | Adj. Height Steel Gantry Cranes w/ Total Locking Casters | Adj. Height Steel Gantry Cranes w/ Pneumatic Casters | Adj. Height Knockdown Steel Gantry Cranes w/ 4-Position Locking Casters | Adj. Height Knockdown Steel Gantry Cranes w/ V-Groove Casters | Adj. Height Knockdown Steel Gantry Cranes w/ Total Locking Casters | Adj. Height Aluminum Gantry Cranes w/ 4-Position Locking Casters | Adj. Height Aluminum Gantry Cranes w/ V-Groove Casters | Adj. Height Aluminum Gantry Cranes w/ Total Locking Casters | Adj. Height Aluminum Gantry Cranes w/ Pneumatic Casters | Adj. Height Aluminum Gantry Cranes w/ Adj. Leveling Option | Fixed Height Steel Gantry Cranes w/ 4-Position Locking Casters | Fixed Height Steel Gantry Cranes w/ V-Groove Casters | Fixed Height Steel Gantry Cranes w/ Total Locking Casters | Fixed Height Steel Gantry Cranes w/ Pneumatic Casters | Fixed Height Knockdown Steel Gantry Cranes w/ V-Groove Casters | Fixed Height Knockdown Steel Gantry Cranes w/ Total Locking Casters | Fixed Height Aluminum Gantry Cranes w/ 4-Position Locking Casters | Fixed Height Aluminum Gantry Cranes w/ Adj. Leveling Option


Model # Description Attributes Net Wt.
(lbs)
FHSN-10-10 FHSN-10-10Steel Knockdown Fixed Gantry Crane with Ductile Steel Casters 10 Ft. 10,000 Lb. Capacity BlueUniform Capacity (lb.): 10,000
Overall I-Beam Length (in.): 119-3/4		924

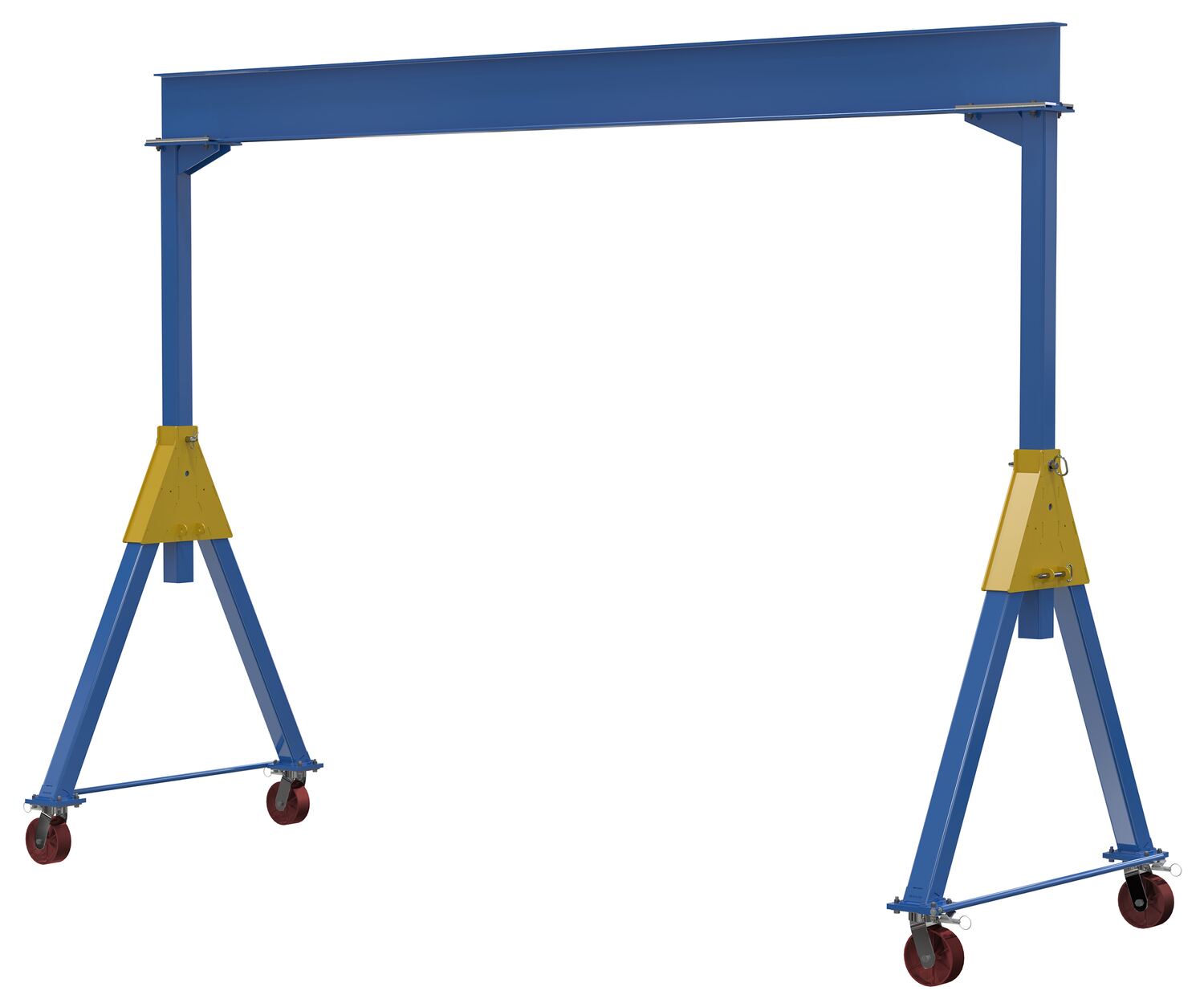

FHSN-10-15 FHSN-10-15Steel Knockdown Fixed Gantry Crane with Ductile Steel Casters 15 Ft. 10,000 Lb. Capacity BlueUniform Capacity (lb.): 10,000
Overall I-Beam Length (in.): 179-3/4		762

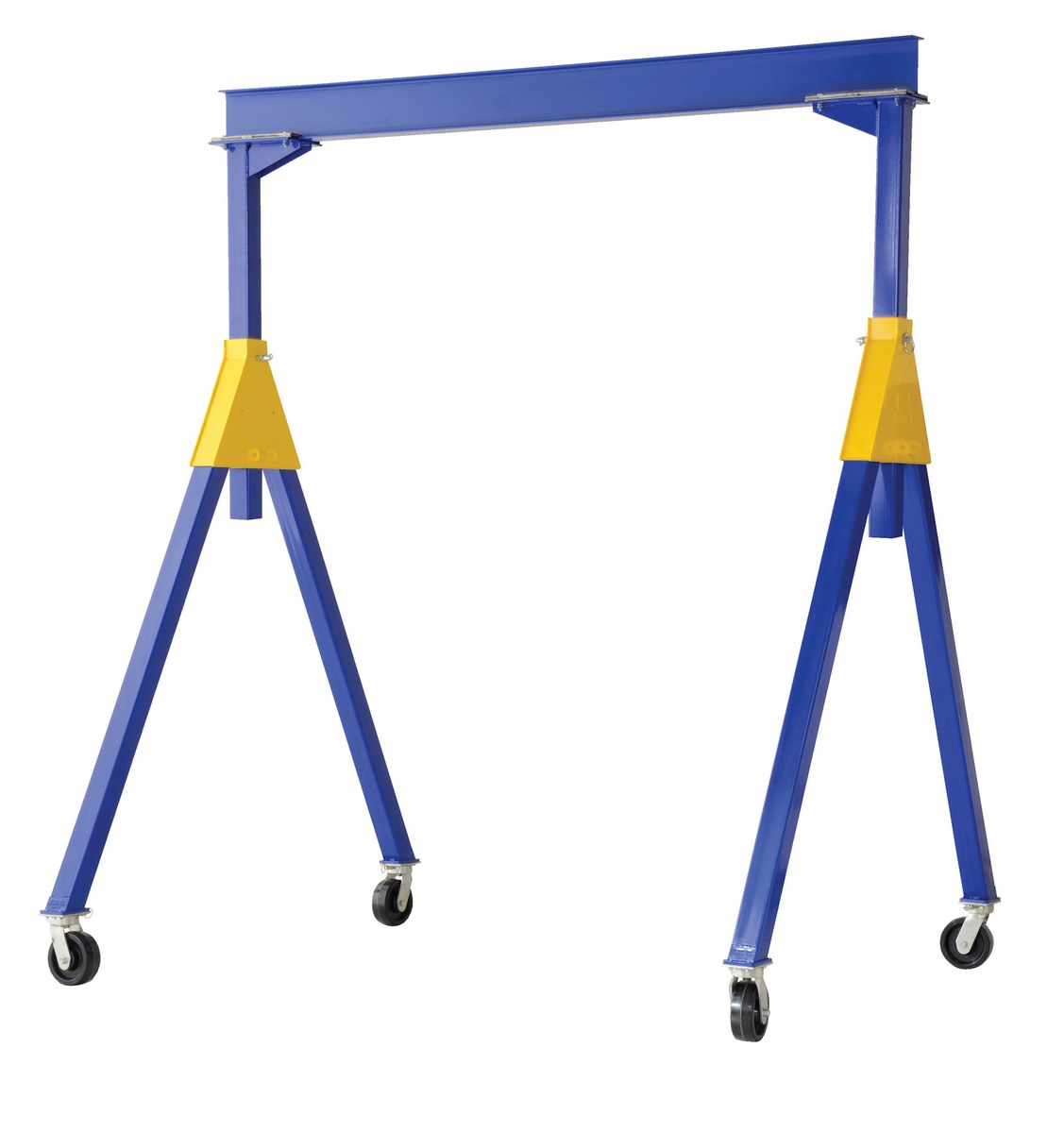

FHSN-2-10 FHSN-2-10Steel Knockdown Fixed Gantry Crane with Glass Filled Nylon Casters 10 Ft. 2000 Lb. Capacity BlueUniform Capacity (lb.): 2,000
Overall I-Beam Length (ft.): 10		567

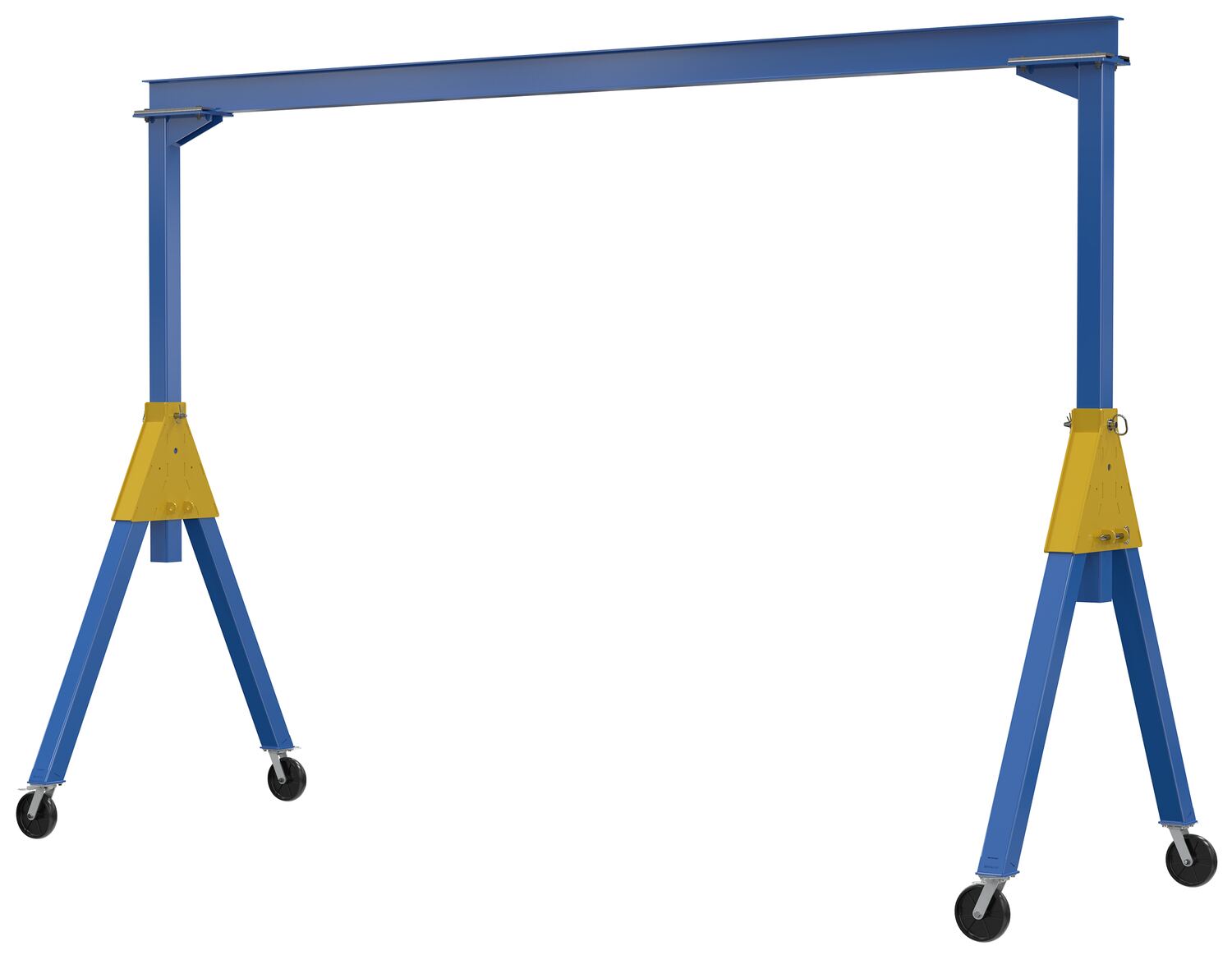

FHSN-2-15 FHSN-2-15Steel Knockdown Fixed Gantry Crane with Glass Filled Nylon Casters 15 Ft. 2000 Lb. Capacity BlueUniform Capacity (lb.): 2,000
Overall I-Beam Length (ft.): 15		606

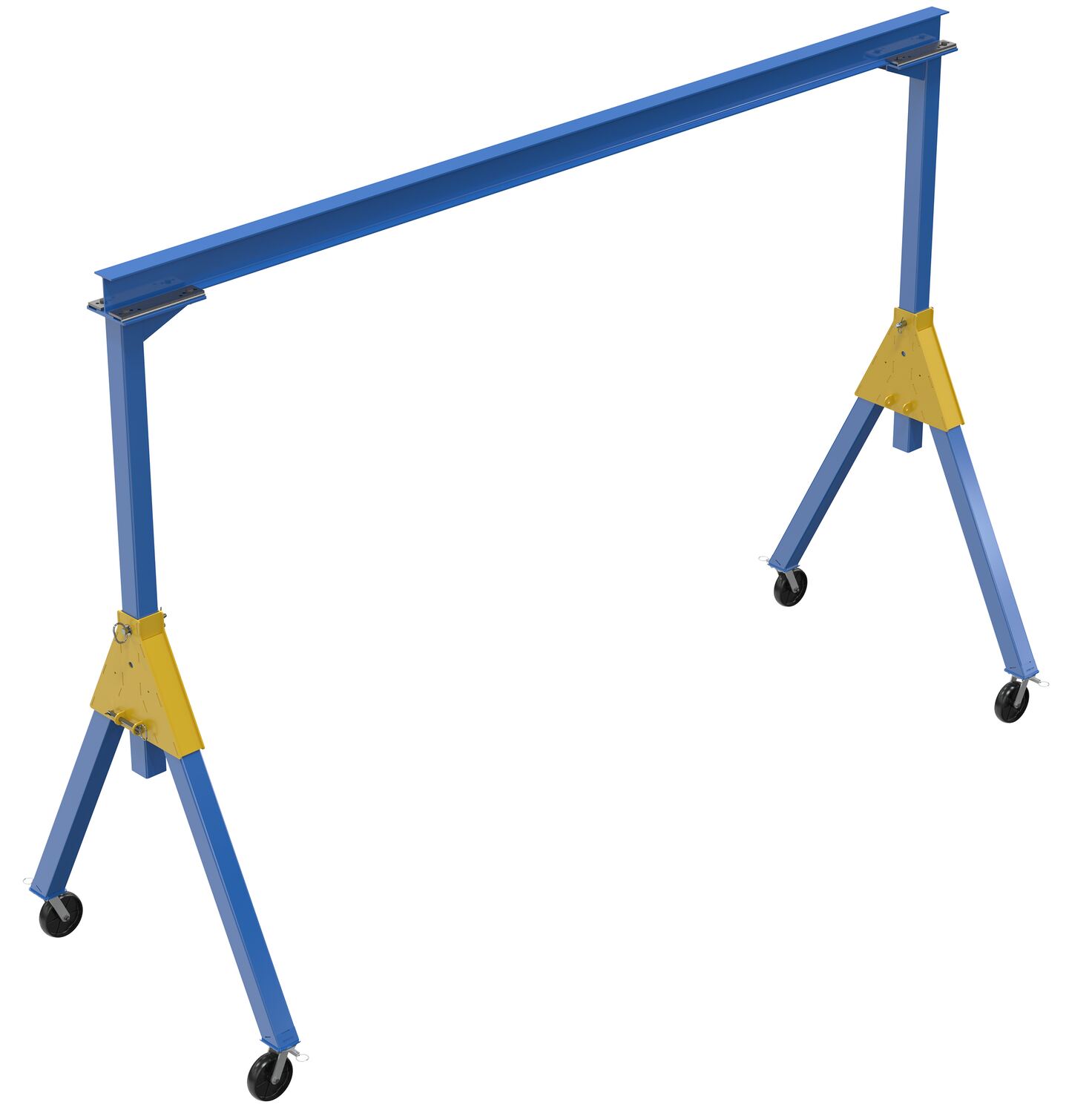

FHSN-2-20 FHSN-2-20Steel Knockdown Fixed Gantry Crane with Glass Filled Nylon Casters 20 Ft. 2000 Lb. Capacity BlueUniform Capacity (lb.): 2,000
Overall I-Beam Length (ft.): 20		494
FHSN-4-10 FHSN-4-10Steel Knockdown Fixed Gantry Crane with Phenolic Casters 10 Ft. 4000 Lb. Capacity BlueUniform Capacity (lb.): 4,000
Overall I-Beam Length (ft.): 10		688

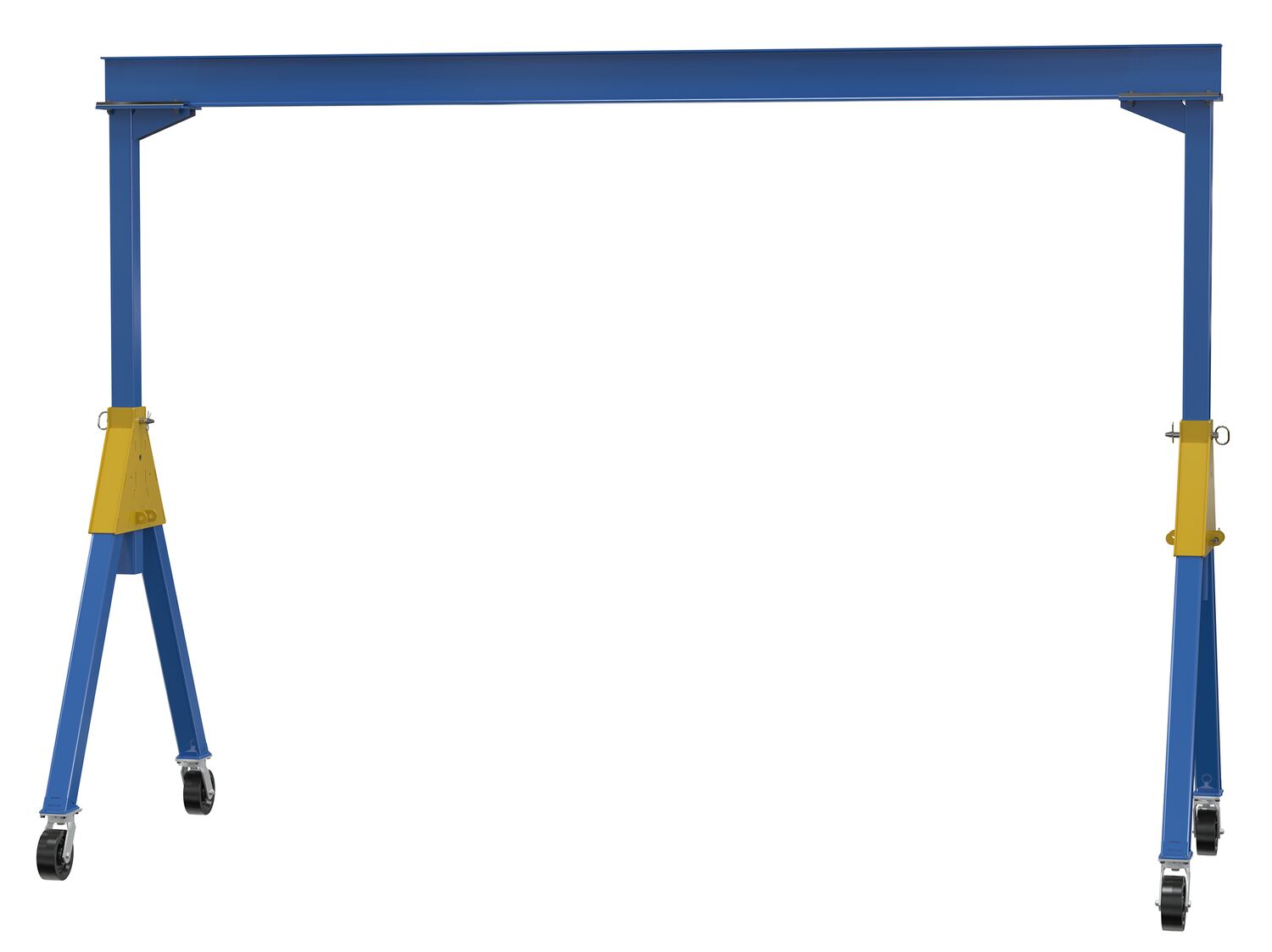

FHSN-4-15 FHSN-4-15Steel Knockdown Fixed Gantry Crane with Phenolic Casters 15 Ft. 4000 Lb. Capacity BlueUniform Capacity (lb.): 4,000
Overall I-Beam Length (in.): 179-3/4		660

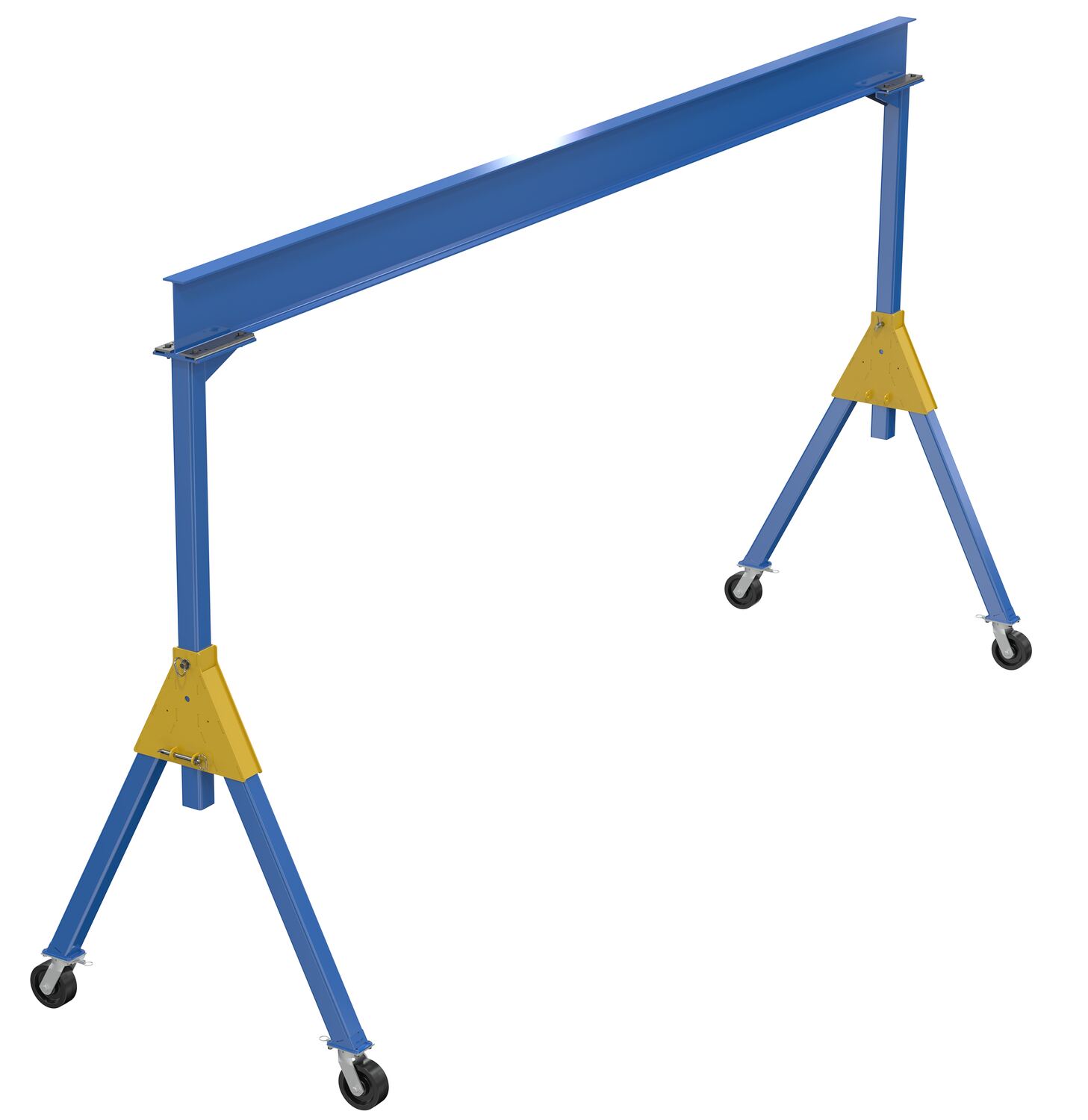

FHSN-4-20 FHSN-4-20Steel Knockdown Fixed Gantry Crane with Phenolic Casters 20 Ft. 4000 Lb. Capacity BlueUniform Capacity (lb.): 4,000
Overall I-Beam Length (in.): 239-3/4		677

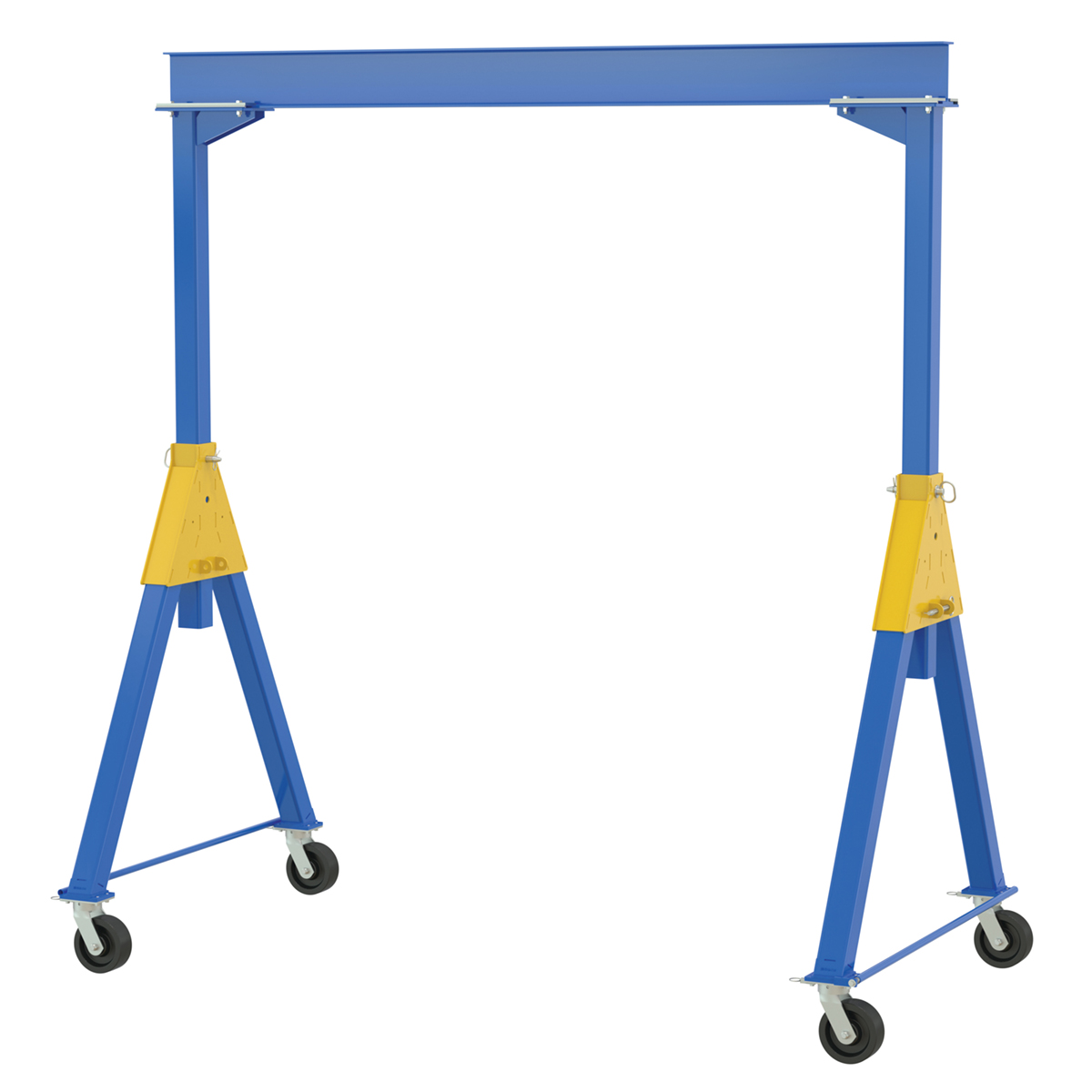

FHSN-6-10 FHSN-6-10Steel Knockdown Fixed Gantry Crane with Phenolic Casters 10 Ft. 6000 Lb. Capacity BlueUniform Capacity (lb.): 6,000
Overall I-Beam Length (in.): 119-3/4		726

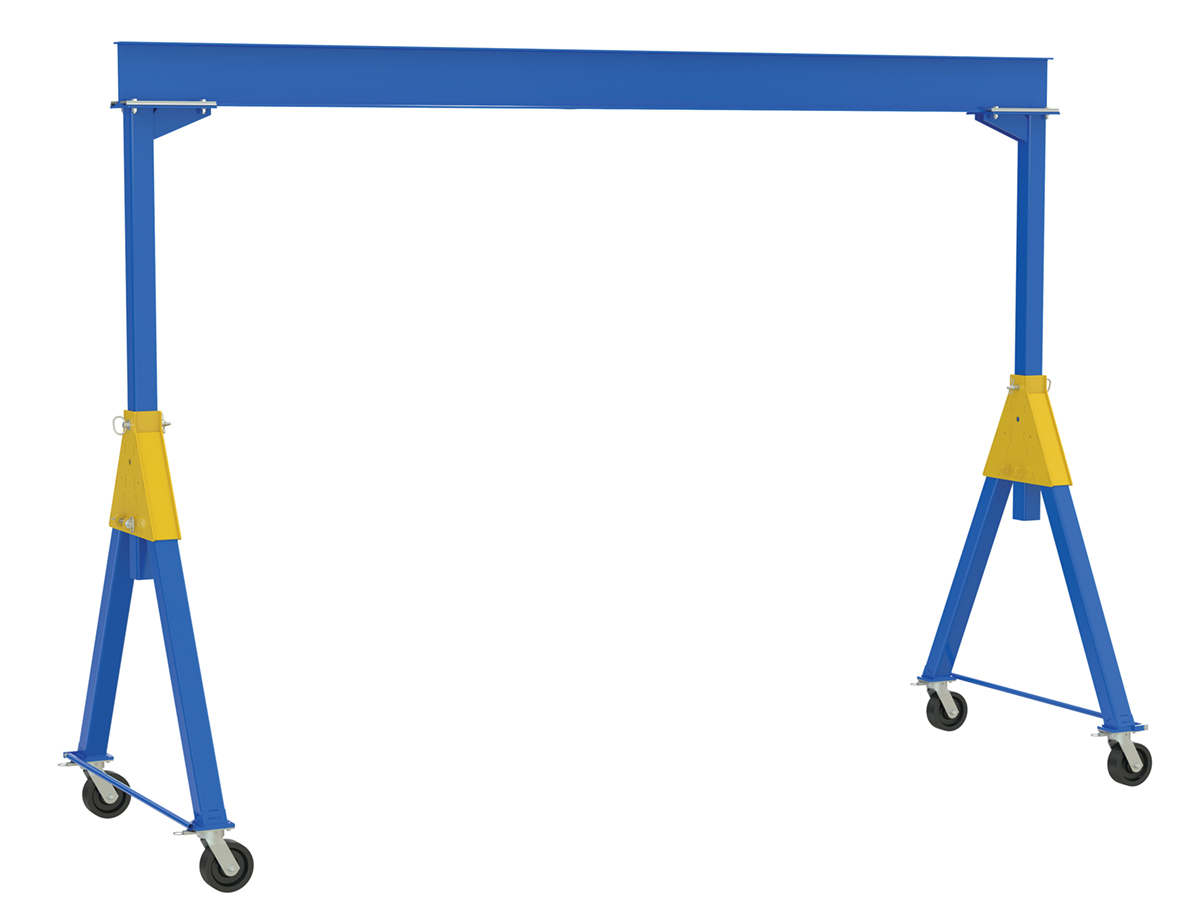

FHSN-6-15 FHSN-6-15Steel Knockdown Fixed Gantry Crane with Phenolic Casters 15 Ft. 6000 Lb. Capacity BlueUniform Capacity (lb.): 6,000
Overall I-Beam Length (in.): 179-3/4		694

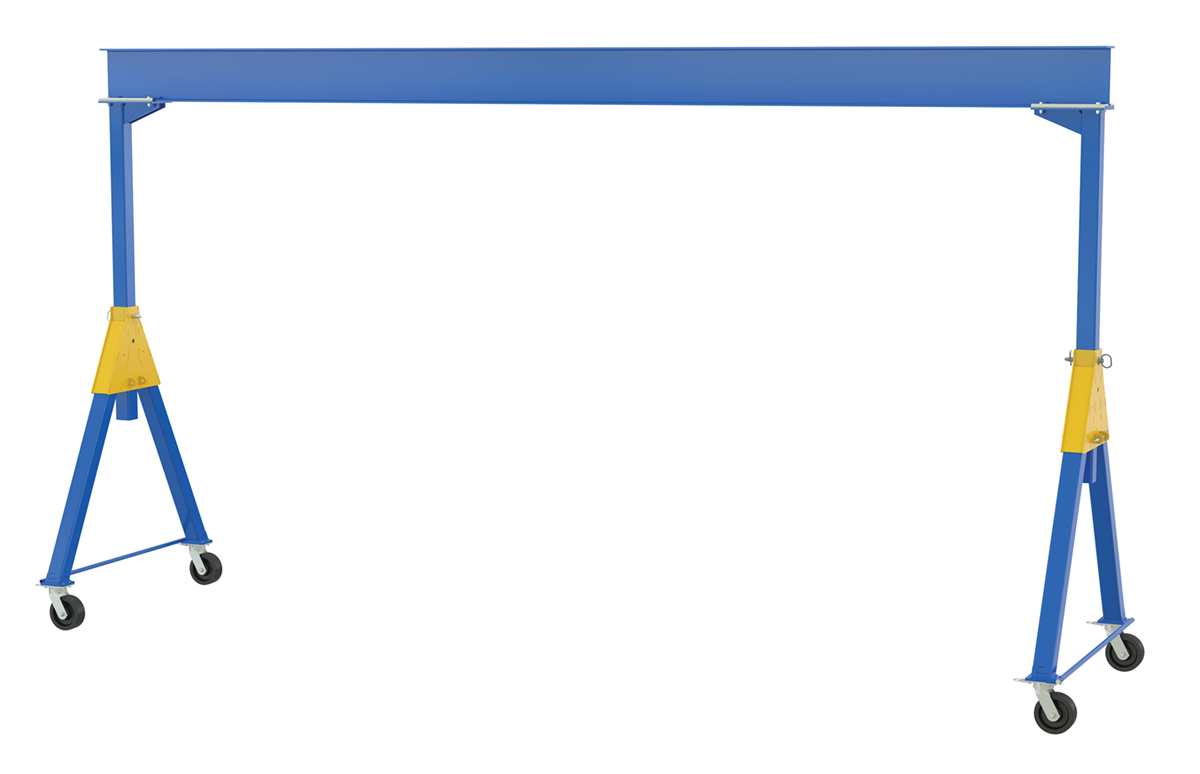

FHSN-6-20 FHSN-6-20Steel Knockdown Fixed Gantry Crane with Phenolic Casters 20 Ft. 6000 Lb. Capacity BlueUniform Capacity (lb.): 6,000
Overall I-Beam Length (in.): 239-3/4		747
FHSN-8-10 FHSN-8-10Steel Knockdown Fixed Gantry Crane with Phenolic Casters 10 Ft. 8000 Lb. Capacity BlueUniform Capacity (lb.): 8,000
Overall I-Beam Length (in.): 119-3/4		694
FHSN-8-15 FHSN-8-15Steel Knockdown Fixed Gantry Crane with Phenolic Casters 15 Ft. 8000 Lb. Capacity BlueUniform Capacity (lb.): 8,000
Overall I-Beam Length (in.): 179-3/4		691

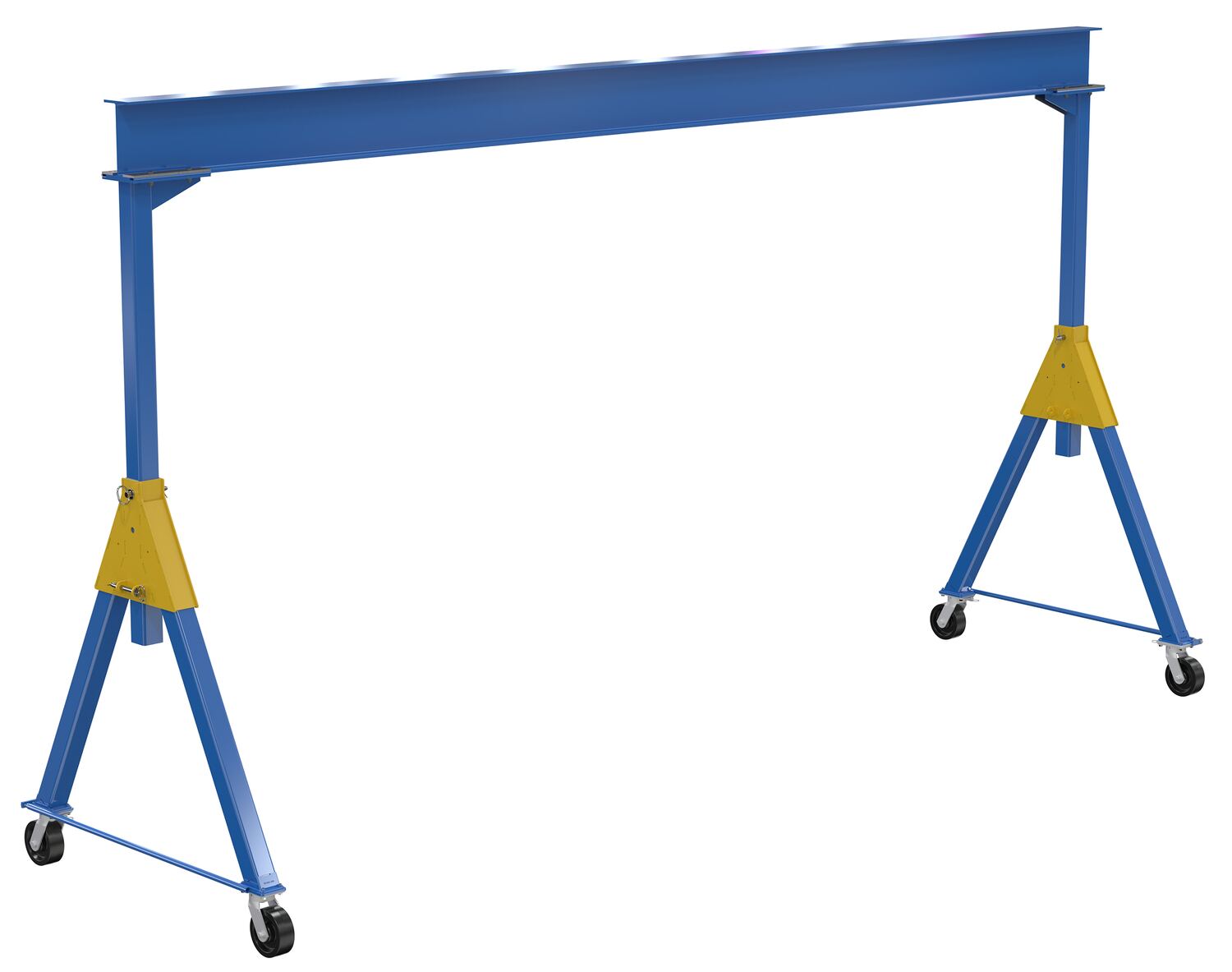

FHSN-8-20 FHSN-8-20Steel Knockdown Fixed Gantry Crane with Phenolic Casters 20 Ft. 8000 Lb. Capacity BlueUniform Capacity (lb.): 8,000
Overall I-Beam Length (in.): 239-3/4		746

Options


Model Image PDFs Description
GPTD-2 icon_approvaldrawings.jpg GANTRY CRANE POWER TRACTION 2K TO 4K
GPTD-4 icon_approvaldrawings.jpg GANTRY CRANE POWER TRACTION 6K TO 8K
V-TRACK icon_approvaldrawings.jpg GANTRY CRANE-V-GROOVE TRACK 120 IN
FHS-STLO icon_approvaldrawings.jpg STATIONARY LEG OPTION, set of 4 (factory installed) Not compatible with 10,000 lbs. units
FHS-STLO-RF icon_approvaldrawings.jpg STATIONARY LEG OPTION, set of 4 (field installed) Not compatible with 10,000 lbs. units
