Adjustable Height Aluminum Gantry Cranes with V-Groove
Casters

Print Friendly

Related Items
Model Chart
Options
PDF's
Image Gallery
Adjustable Height Aluminum Gantry Cranes with V-Groove Casters

model: AHA-2-15-10-TLC

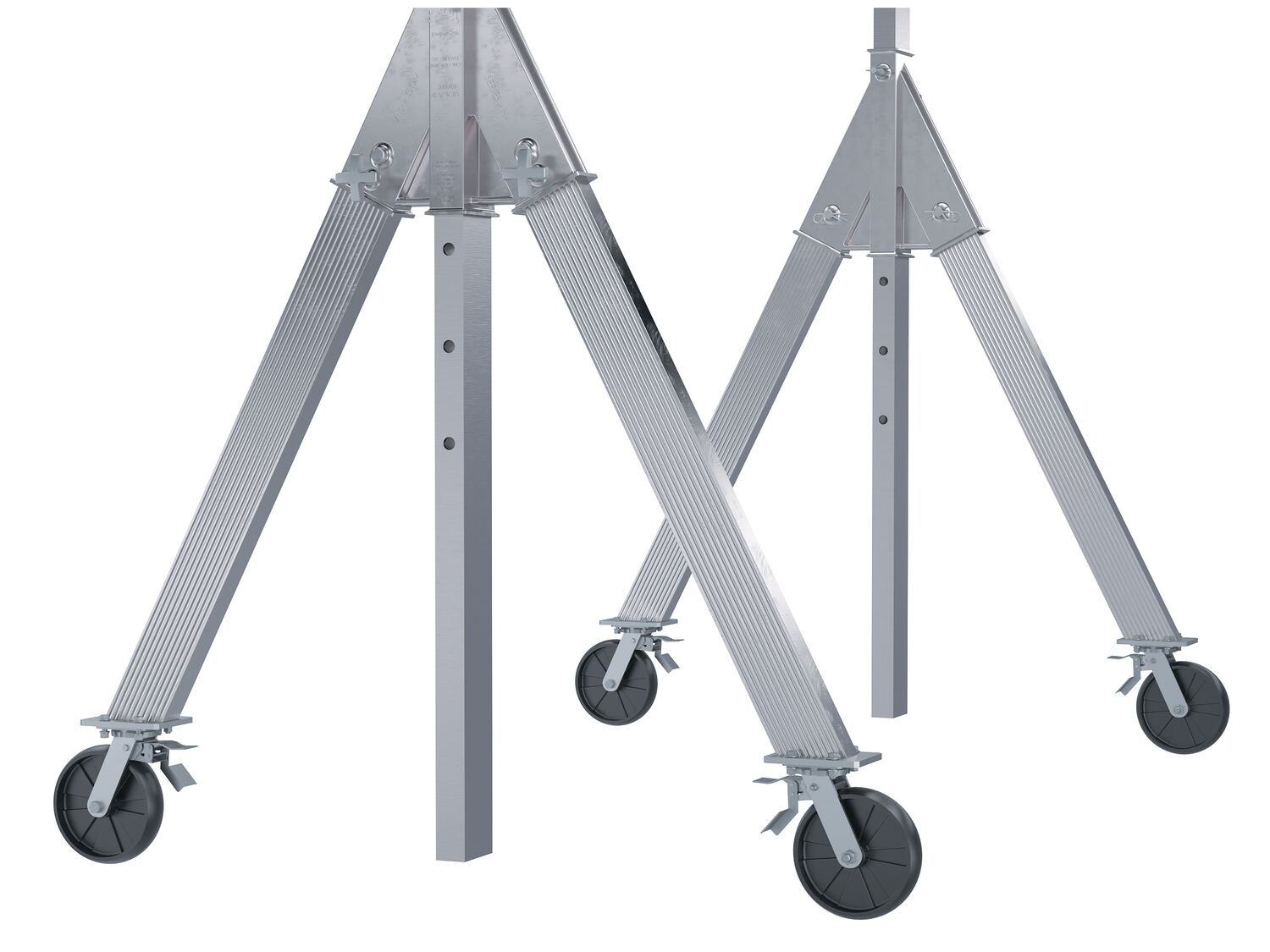

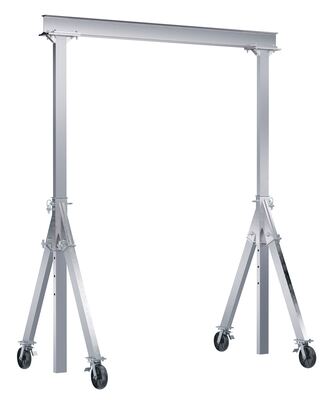

AHA-2-15-10-TLC_A.jpg AHA-2-15-10-TLC_B.jpg More Images +
Adjustable Height Aluminum Gantry Cranes with V-Groove Casters
SERIES: AHA-VG
Best Seller Custom Fabrication

The adjustable height Aluminum Gantry crane combines lightweight and rigid, sturdy construction into one unit. The all aluminum construction of this gantry crane makes it corrosion resistant and perfect for outdoor use. The lightweight I-beam allows simple height adjustments. All pinned connections make it possible for single person set up and take down in just minutes. Included are two straps, allowing one person to transport the gantry crane in one neat package. Unit comes standard four (4) V-groove casters, allowing for quick movement and positioning adjustments. Do not move units while loaded unless using V-Groove Caster and Track Option. Hoists & Trollies can be ordered seperately.

  • Heavy-duty welded aluminum construction for long lasting use
  • Easy adjustable height can be done with fork truck or other overhead lifting device
  • Beam length allows for use with items, both large and small
  • All units comply with applicable CMAA and ANSI specifications

Check Out Vestil's Other Gantry Crane Styles:
Adj. Height Steel Gantry Cranes w/ 4-Position Locking Casters | Adj. Height Steel Gantry Cranes w/ V-Groove Casters | Adj. Height Steel Gantry Cranes w/ Total Locking Casters | Adj. Height Steel Gantry Cranes w/ Pneumatic Casters | Adj. Height Knockdown Steel Gantry Cranes w/ 4-Position Locking Casters | Adj. Height Knockdown Steel Gantry Cranes w/ V-Groove Casters | Adj. Height Knockdown Steel Gantry Cranes w/ Total Locking Casters | Adj. Height Aluminum Gantry Cranes w/ 4-Position Locking Casters | Adj. Height Aluminum Gantry Cranes w/ Total Locking Casters | Adj. Height Aluminum Gantry Cranes w/ Pneumatic Casters | Adj. Height Aluminum Gantry Cranes w/ Adj. Leveling Option | Fixed Height Steel Gantry Cranes w/ 4-Position Locking Casters | Fixed Height Steel Gantry Cranes w/ V-Groove Casters | Fixed Height Steel Gantry Cranes w/ Total Locking Casters | Fixed Height Steel Gantry Cranes w/ Pneumatic Casters | Fixed Height Knockdown Steel Gantry Cranes w/ 4-Position Locking Casters | Fixed Height Knockdown Steel Gantry Cranes w/ V-Groove Casters | Fixed Height Knockdown Steel Gantry Cranes w/ Total Locking Casters | Fixed Height Aluminum Gantry Cranes w/ 4-Position Locking Casters | Fixed Height Aluminum Gantry Cranes w/ Adj. Leveling Option

Adjustable Height Aluminum Gantry Cranes with V-Groove Casters

model: AHA-2-15-10-TLC

Model # Description Attributes Net Wt.
(lbs)

* Usable Distance Between uprights is overall I-Beam Length minus 18" -- Usable Trolley Travel length is overall I-Beam Length minus 23-3/4"

All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.

KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = BABAA Compliant = 360 Image Warranty
= New Images Coming Soon! = Dimension Image = Works w/ Skid Only = Flatbed Truck Required

If you did not find an expected Model or SKU # in the table, try the Options Section Below
AHA-2-10-10-VG
AHA-2-10-12-VG
AHA-2-10-8-VG
AHA-2-12-10-VG
AHA-2-12-12-VG
AHA-2-12-8-VG
AHA-2-15-10-VG
AHA-2-15-12-VG
AHA-2-15-8-VG
AHA-2-8-10-VG
AHA-2-8-12-VG
AHA-2-8-8-VG
AHA-2/4-V
AHA-2/4-V4
AHA-4-10-10-VG
AHA-4-10-12-VG
AHA-4-10-8-VG
AHA-4-12-10-VG
AHA-4-12-12-VG
AHA-4-12-8-VG
AHA-4-15-10-VG
AHA-4-15-12-VG
AHA-4-15-8-VG
AHA-4-8-10-VG
AHA-4-8-12-VG
AHA-4-8-8-VG
For More Details of the Option Click the Red Model Button
Model Image Details Icons Wt.

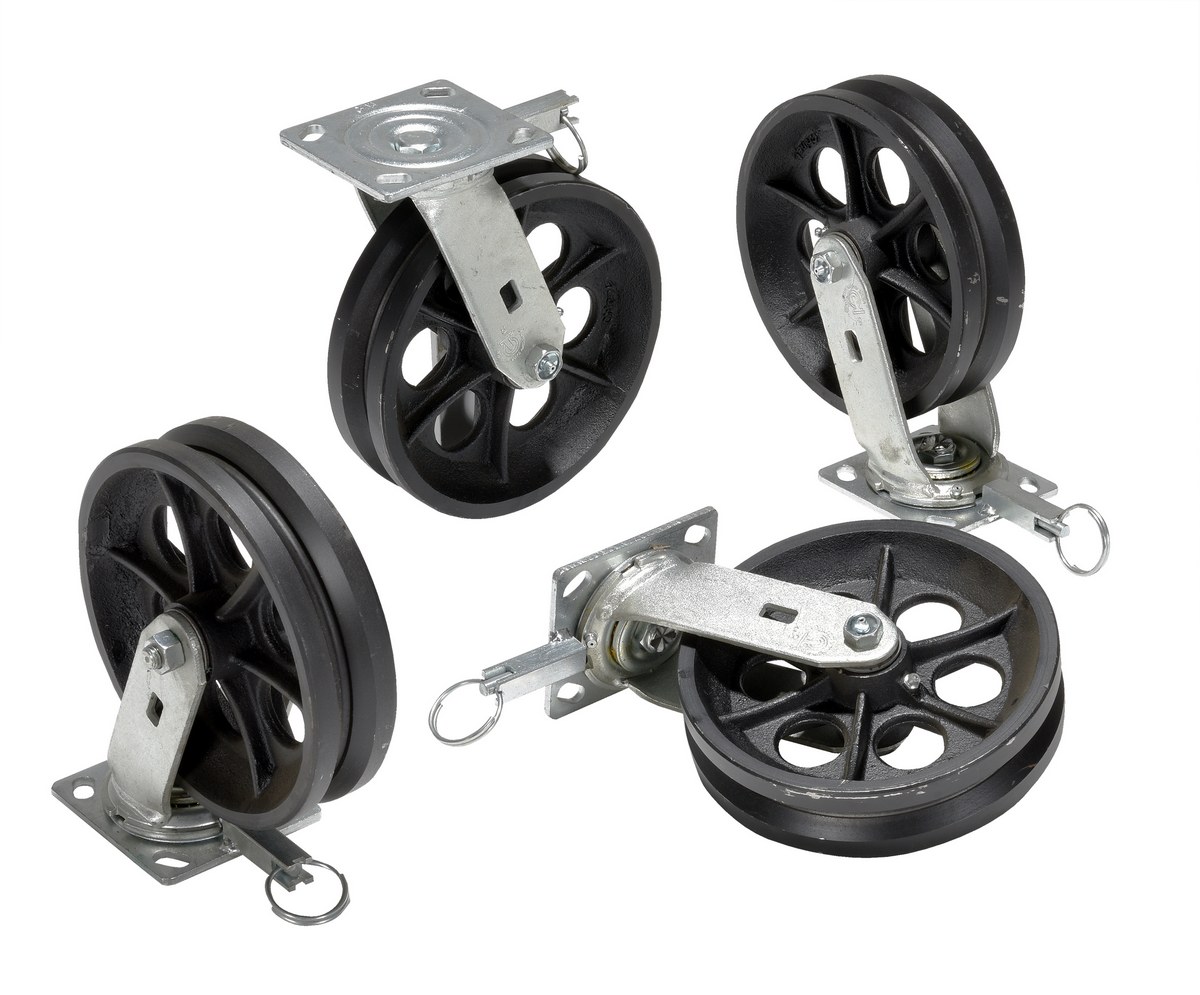

AHA-2/4-V AHA-2/4-V Cast Iron Swivel V-Groove Casters 8 In. x 2 In. For Aluminum… 1 Year Limited Warranty 40

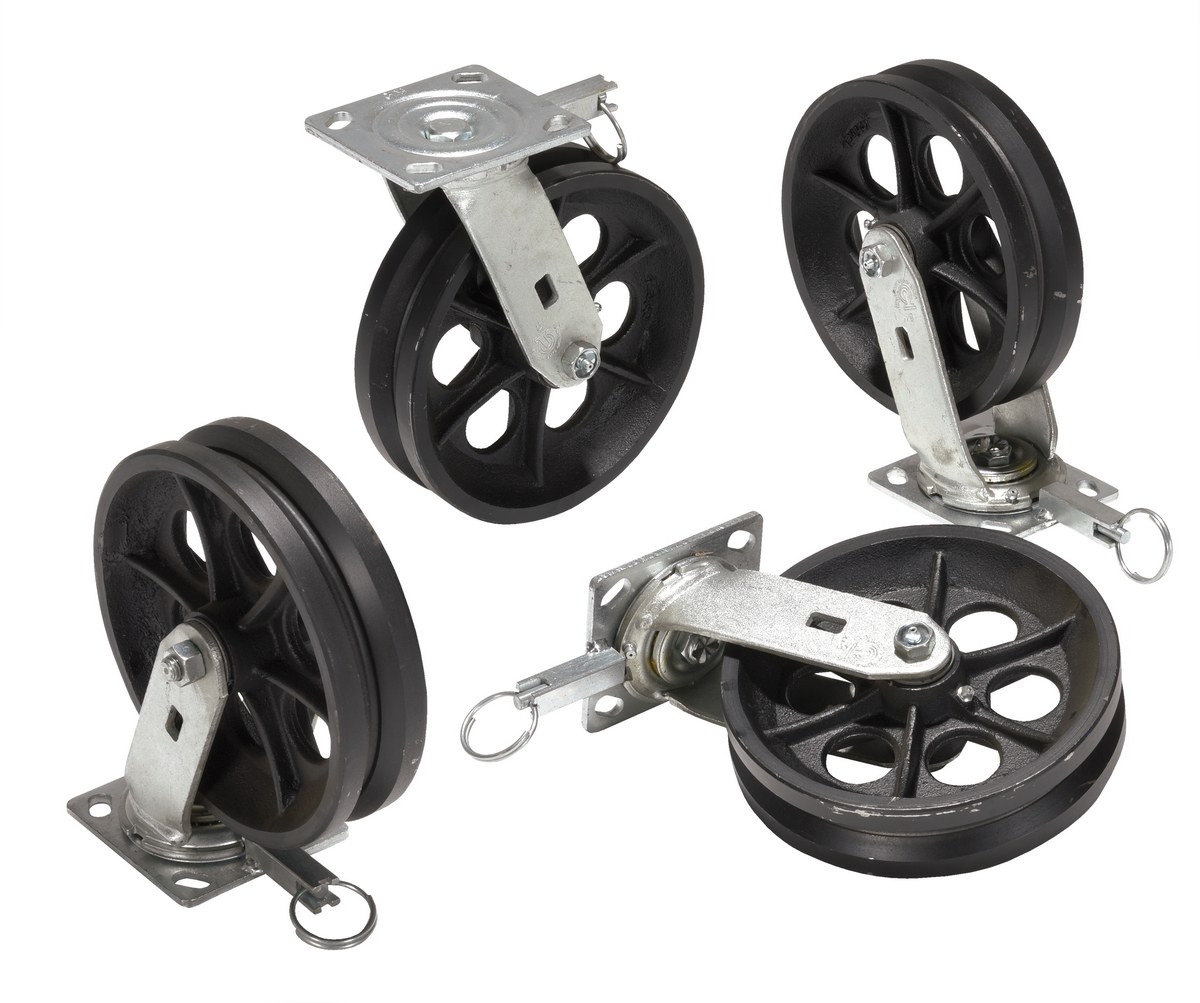

AHA-2/4-V4 AHA-2/4-V4 Cast Iron Swivel V-Groove Casters With 4-Position Lock 8 In.… 1 Year Limited Warranty 42
Model Image PDFs Description
GPTD-2 icon_approvaldrawings.jpg 2,000 to 4,000 lbs. capacity / standard with 3 button hand control
GPTD-4 icon_approvaldrawings.jpg 6,000 to 8,000 lbs capacity / standard with 3 button hand control
V-Track icon_approvaldrawings.jpg 10 foot section of V-groove track (one side only)
AHA-KIT icon_approvaldrawings.jpg (2) Come-A-Longs (2) Cables for height adjustment (Not for lifting)
AHA-STLO icon_approvaldrawings.jpg STATIONARY LEG OPTION, set of 4 (factory installed)
AHA-STLO-RF icon_approvaldrawings.jpg STATIONARY LEG OPTION, set of 4 (field installed)
If you did not find an expected Model or SKU # in this table, try the Product Specifications Section Above
PDFs will open in a new window when clicked.

Manuals

AHA

Survey Sheets

AHA

Engineering Drawings

No Approval Drawings For This Product

Testing Certificates

AHA-2-10-10-VG

AHA-2-10-12-VG

AHA-2-10-8-VG

AHA-2-12-10-VG

AHA-2-12-12-VG

AHA-2-12-8-VG

AHA-2-15-10-VG

AHA-2-15-12-VG

AHA-2-15-8-VG

AHA-2-8-10-VG

AHA-2-8-12-VG

AHA-2-8-8-VG

AHA-2/4-V

AHA-2/4-V4

AHA-4-10-10-VG

AHA-4-10-12-VG

AHA-4-10-8-VG

AHA-4-12-10-VG

AHA-4-12-12-VG

AHA-4-12-8-VG

AHA-4-15-10-VG

AHA-4-15-12-VG

AHA-4-15-8-VG

AHA-4-8-10-VG

AHA-4-8-12-VG

AHA-4-8-8-VG

SDS Sheets

No SDS Sheets For This Product

Other PDFs

No "Other PDFs" For This Product







Visit Our Youtube Channel For All Available Videos For All Products

Related or Similar Products:

More From Gantry Cranes





Adjustable Height Aluminum Gan...




The adjustable height Aluminum Gantry crane combines lightweight and rigid, sturdy construction into one unit. The all aluminum construction of this gantry crane makes it corrosion resistant and perfect for outdoor use. The lightweight I-beam allows simple height adjustments. All pinned connections make it possible for single person set up and take down in just minutes. Included are two straps, allowing one person to transport the gantry crane in one neat package. Unit comes standard four (4) V-groove casters, allowing for quick movement and positioning adjustments. Do not move units while loaded unless using V-Groove Caster and Track Option. Hoists & Trollies can be ordered seperately.

  • Heavy-duty welded aluminum construction for long lasting use
  • Easy adjustable height can be done with fork truck or other overhead lifting device
  • Beam length allows for use with items, both large and small
  • All units comply with applicable CMAA and ANSI specifications

Check Out Vestil's Other Gantry Crane Styles:
Adj. Height Steel Gantry Cranes w/ 4-Position Locking Casters | Adj. Height Steel Gantry Cranes w/ V-Groove Casters | Adj. Height Steel Gantry Cranes w/ Total Locking Casters | Adj. Height Steel Gantry Cranes w/ Pneumatic Casters | Adj. Height Knockdown Steel Gantry Cranes w/ 4-Position Locking Casters | Adj. Height Knockdown Steel Gantry Cranes w/ V-Groove Casters | Adj. Height Knockdown Steel Gantry Cranes w/ Total Locking Casters | Adj. Height Aluminum Gantry Cranes w/ 4-Position Locking Casters | Adj. Height Aluminum Gantry Cranes w/ Total Locking Casters | Adj. Height Aluminum Gantry Cranes w/ Pneumatic Casters | Adj. Height Aluminum Gantry Cranes w/ Adj. Leveling Option | Fixed Height Steel Gantry Cranes w/ 4-Position Locking Casters | Fixed Height Steel Gantry Cranes w/ V-Groove Casters | Fixed Height Steel Gantry Cranes w/ Total Locking Casters | Fixed Height Steel Gantry Cranes w/ Pneumatic Casters | Fixed Height Knockdown Steel Gantry Cranes w/ 4-Position Locking Casters | Fixed Height Knockdown Steel Gantry Cranes w/ V-Groove Casters | Fixed Height Knockdown Steel Gantry Cranes w/ Total Locking Casters | Fixed Height Aluminum Gantry Cranes w/ 4-Position Locking Casters | Fixed Height Aluminum Gantry Cranes w/ Adj. Leveling Option


Model # Description Attributes Net Wt.
(lbs)
AHA-2-10-10-VG AHA-2-10-10-VGAluminum Adjustable Height Gantry Crane with V-Groove Cast Iron Casters 10 Ft. Wide x 10 Ft. Max Usable Height 2,000 Lb. Capacity SilverUniform Capacity (lb.): 2,000
Adjustable Clearance Range (in.): 92 to 122		258
AHA-2-10-12-VG AHA-2-10-12-VGAluminum Adjustable Height Gantry Crane with V-Groove Cast Iron Casters 10 Ft. Wide x 12 Ft. Max Usable Height 2,000 Lb. Capacity SilverUniform Capacity (lb.): 2,000
Adjustable Clearance Range (in.): 114 to 144		261
AHA-2-10-8-VG AHA-2-10-8-VGAluminum Adjustable Height Gantry Crane with V-Groove Cast Iron Casters 10 Ft. Wide x 8 Ft. Max Usable Height 2,000 Lb. Capacity SilverUniform Capacity (lb.): 2,000
Adjustable Clearance Range (in.): 68 to 98		306
AHA-2-12-10-VG AHA-2-12-10-VGAluminum Adjustable Height Gantry Crane with V-Groove Cast Iron Casters 12 Ft. Wide x 10 Ft. Max Usable Height Wide 2,000 Lb. Capacity SilverUniform Capacity (lb.): 2,000
Adjustable Clearance Range (in.): 92 to 122		329
AHA-2-12-12-VG AHA-2-12-12-VGAluminum Adjustable Height Gantry Crane with V-Groove Cast Iron Casters 12 Ft. Wide x 12 Ft. Max Usable Height 2,000 Lb. Capacity SilverUniform Capacity (lb.): 2,000
Adjustable Clearance Range (in.): 114 to 144		286
AHA-2-12-8-VG AHA-2-12-8-VGAluminum Adjustable Height Gantry Crane with V-Groove Cast Iron Casters 12 Ft. Wide x 8 Ft. Max Usable Height 2,000 Lb. Capacity SilverUniform Capacity (lb.): 2,000
Adjustable Clearance Range (in.): 68 to 98		304
AHA-2-15-10-VG AHA-2-15-10-VGAluminum Adjustable Height Gantry Crane with V-Groove Cast Iron Casters 15 Ft. Wide x 10 Ft. Max Usable Height 2,000 Lb. Capacity SilverUniform Capacity (lb.): 2,000
Adjustable Clearance Range (in.): 92 to 122		364
AHA-2-15-12-VG AHA-2-15-12-VGAluminum Adjustable Height Gantry Crane with V-Groove Cast Iron Casters 15 Ft. Wide x 12 Ft. Max Usable Height 2,000 Lb. Capacity SilverUniform Capacity (lb.): 2,000
Adjustable Clearance Range (in.): 114 to 144		371
AHA-2-15-8-VG AHA-2-15-8-VGAluminum Adjustable Height Gantry Crane with V-Groove Cast Iron Casters 15 Ft. Wide x 8 Ft. Max Usable Height 2,000 Lb. Capacity SilverUniform Capacity (lb.): 2,000
Adjustable Clearance Range (in.): 68 to 98		320
AHA-2-8-10-VG AHA-2-8-10-VGAluminum Adjustable Height Gantry Crane with V-Groove Cast Iron Casters 8 Ft. Wide x 10 Ft. Max Usable Height 2,000 Lb. Capacity SilverUniform Capacity (lb.): 2,000
Adjustable Clearance Range (in.): 92 to 122		239
AHA-2-8-12-VG AHA-2-8-12-VGAluminum Adjustable Height Gantry Crane with V-Groove Cast Iron Casters 8 Ft. Wide x 12 Ft. Max Usable Height 2,000 Lb. Capacity SilverUniform Capacity (lb.): 2,000
Adjustable Clearance Range (in.): 114 to 144		298
AHA-2-8-8-VG AHA-2-8-8-VGAluminum Adjustable Height Gantry Crane with V-Groove Cast Iron Casters 8 Ft. Wide x 8 Ft. Max Usable Height 2,000 Lb. Capacity SilverUniform Capacity (lb.): 2,000
Adjustable Clearance Range (in.): 68 to 98		210
AHA-4-10-10-VG AHA-4-10-10-VGAluminum Adjustable Height Gantry Crane with V-Groove Ductile Steel Casters 10 Ft. Wide x 10 Ft. Max Usable Height 4,000 Lb. Capacity SilverUniform Capacity (lb.): 4,000
Adjustable Clearance Range (in.): 92 to 122		307
AHA-4-10-12-VG AHA-4-10-12-VGAluminum Adjustable Height Gantry Crane with V-Groove Ductile Steel Casters 10 Ft. Wide x 12 Ft. Max Usable Height 4,000 Lb. Capacity SilverUniform Capacity (lb.): 4,000
Adjustable Clearance Range (in.): 114 to 144		349
AHA-4-10-8-VG AHA-4-10-8-VGAluminum Adjustable Height Gantry Crane with V-Groove Ductile Steel Casters 10 Ft. Wide x 8 Ft. Max Usable Height 4,000 Lb. Capacity SilverUniform Capacity (lb.): 4,000
Adjustable Clearance Range (in.): 68 to 98		298
AHA-4-12-10-VG AHA-4-12-10-VGAluminum Adjustable Height Gantry Crane with V-Groove Ductile Steel Casters 12 Ft. Wide x 10 Ft. Max Usable Height 4,000 Lb. Capacity SilverUniform Capacity (lb.): 4,000
Adjustable Clearance Range (in.): 92 to 122		325
AHA-4-12-12-VG AHA-4-12-12-VGAluminum Adjustable Height Gantry Crane with V-Groove Ductile Steel Casters 12 Ft. Wide x 12 Ft. Max Usable Height 4,000 Lb. Capacity SilverUniform Capacity (lb.): 4,000
Adjustable Clearance Range (in.): 114 to 144		350
AHA-4-12-8-VG AHA-4-12-8-VGAluminum Adjustable Height Gantry Crane with V-Groove Ductile Steel Casters 12 Ft. Wide x 8 Ft. Max Usable Height 4,000 Lb. Capacity SilverUniform Capacity (lb.): 4,000
Adjustable Clearance Range (in.): 68 to 98		302
AHA-4-15-10-VG AHA-4-15-10-VGAluminum Adjustable Height Gantry Crane with V-Groove Ductile Steel Casters 15 Ft. Wide x 10 Ft. Max Usable Height 4,000 Lb. Capacity SilverUniform Capacity (lb.): 4,000
Adjustable Clearance Range (in.): 92 to 122		370
AHA-4-15-12-VG AHA-4-15-12-VGAluminum Adjustable Height Gantry Crane with V-Groove Ductile Steel Casters 15 Ft. Wide x 12 Ft. Max Usable Height 4,000 Lb. Capacity SilverUniform Capacity (lb.): 4,000
Adjustable Clearance Range (in.): 114 to 144		394
AHA-4-15-8-VG AHA-4-15-8-VGAluminum Adjustable Height Gantry Crane with V-Groove Ductile Steel Casters 15 Ft. Wide x 8 Ft. Max Usable Height 4,000 Lb. Capacity SilverUniform Capacity (lb.): 4,000
Adjustable Clearance Range (in.): 68 to 98		354

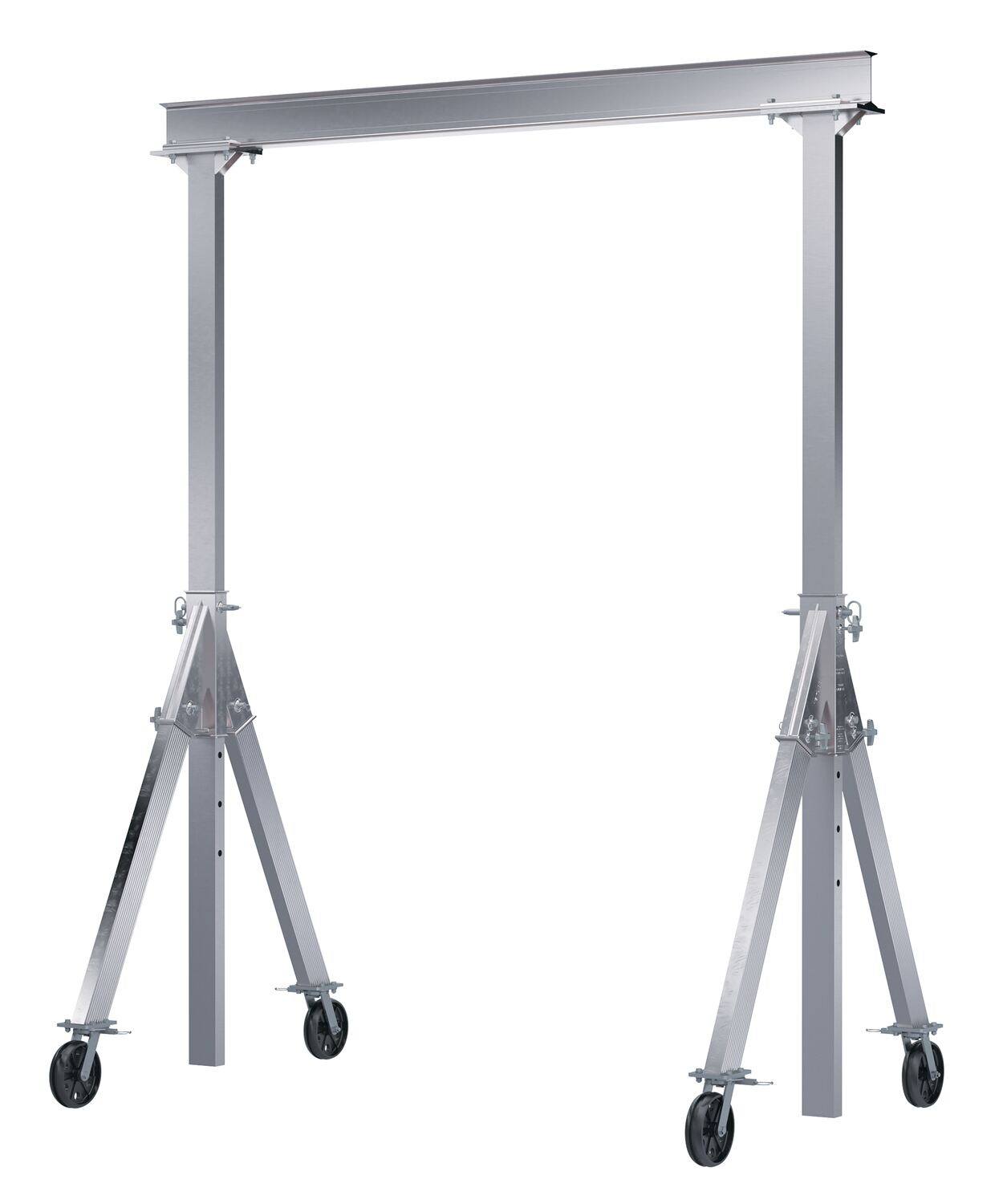

AHA-4-8-10-VG AHA-4-8-10-VGAluminum Adjustable Height Gantry Crane with V-Groove Ductile Steel Casters 8 Ft. Wide x 10 Ft. Max Usable Height 4,000 Lb. Capacity SilverUniform Capacity (lb.): 4,000
Adjustable Clearance Range (in.): 92 to 122		298
AHA-4-8-12-VG AHA-4-8-12-VGAluminum Adjustable Height Gantry Crane with V-Groove Ductile Steel Casters 8 Ft. Wide x 12 Ft. Max Usable Height 4,000 Lb. Capacity SilverUniform Capacity (lb.): 4,000
Adjustable Clearance Range (in.): 114 to 144		301
AHA-4-8-8-VG AHA-4-8-8-VGAluminum Adjustable Height Gantry Crane with V-Groove Ductile Steel Casters 8 Ft. Wide x 8 Ft. Max Usable Height 4,000 Lb. Capacity SilverUniform Capacity (lb.): 4,000
Adjustable Clearance Range (in.): 68 to 98		276

Options


Model Image PDFs Description
GPTD-2 icon_approvaldrawings.jpg 2,000 to 4,000 lbs. capacity / standard with 3 button hand control
GPTD-4 icon_approvaldrawings.jpg 6,000 to 8,000 lbs capacity / standard with 3 button hand control
V-Track icon_approvaldrawings.jpg 10 foot section of V-groove track (one side only)
AHA-KIT icon_approvaldrawings.jpg (2) Come-A-Longs (2) Cables for height adjustment (Not for lifting)
AHA-STLO icon_approvaldrawings.jpg STATIONARY LEG OPTION, set of 4 (factory installed)
AHA-STLO-RF icon_approvaldrawings.jpg STATIONARY LEG OPTION, set of 4 (field installed)
