Adjustable Height Aluminum Gantry Cranes with Adjustable Leveling Option

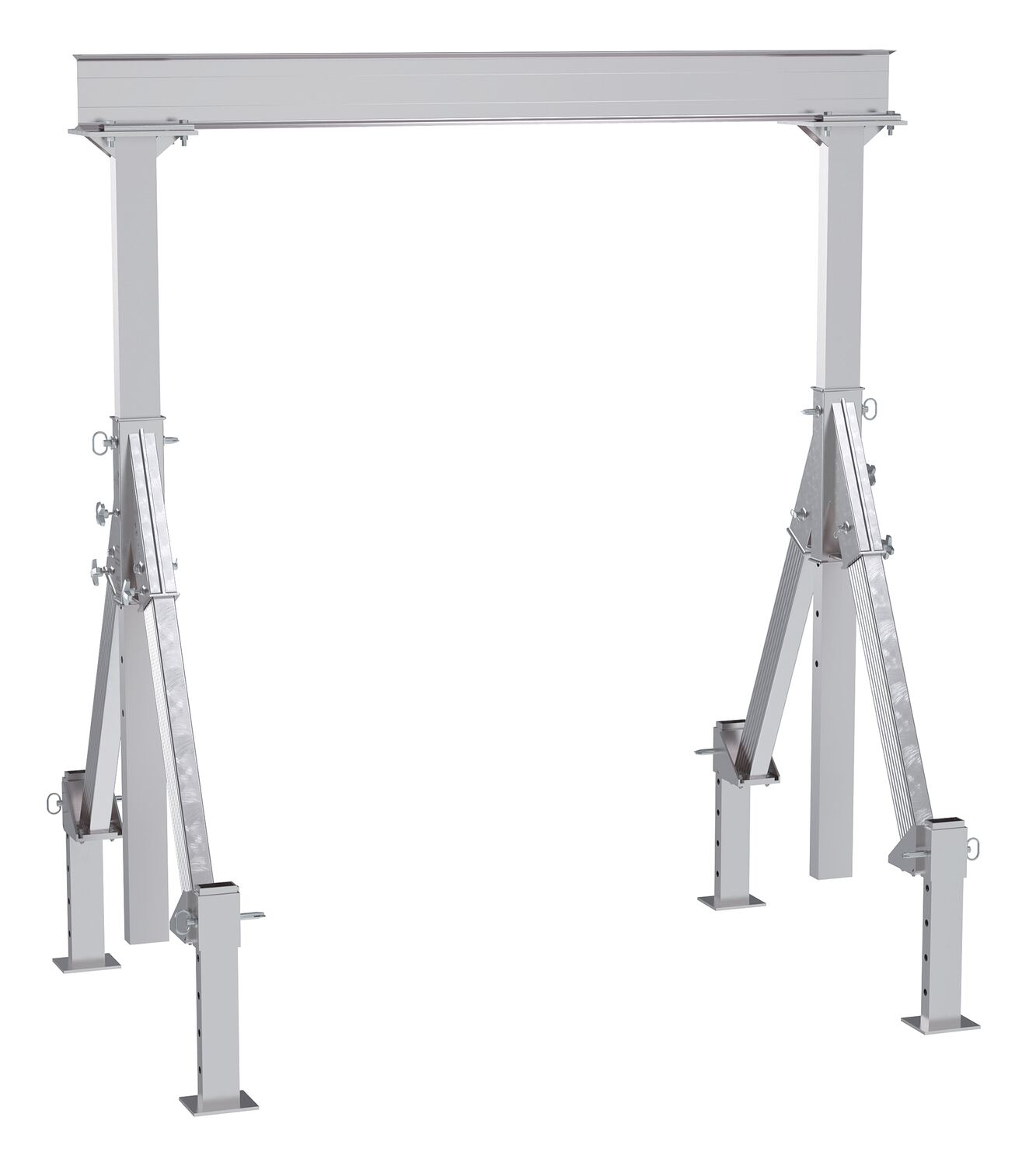

model: AHA-4-8-10-ALO

AHA-4-8-10-ALO_A.jpg AHA-4-10-8-ALO_A.jpg AHA-2-10-12-ALO_A.jpg AHA-2-15-8-ALO_A.jpg More Images +
Adjustable Height Aluminum Gantry Cranes with Adjustable Leveling Option
SERIES: AHA-ALO
New Product Best Seller Custom Fabrication

An adjustable height Aluminum Gantry crane is valuable asset in warehouse and manufacturing settings. The crane has an all-aluminum construction making it corrosion resistant and perfect for outdoor use. All pinned connections make it possible for personnel to set up and take down in just minutes. The adjustable legs allow the crane to be raised or lowered in increments. Each leg has a pin style adjustment design with pre drilled alteration holes. With a rectangle shaped base included on each leg, the crane has a strong foundational support. Hoists & Trollies can be ordered seperately.

  • Height and leveling adjustments can be completed with support from fork truck or other overhead lifting device
  • Flat footed design provides surface stability
  • Beam length offers ample space for lifting and lowering
  • Lifting hoist/trolley available separately

Check Out Vestil's Other Gantry Crane Styles:
Adj. Height Steel Gantry Cranes w/ 4-Position Locking Casters | Adj. Height Steel Gantry Cranes w/ V-Groove Casters | Adj. Height Steel Gantry Cranes w/ Total Locking Casters | Adj. Height Steel Gantry Cranes w/ Pneumatic Casters | Adj. Height Knockdown Steel Gantry Cranes w/ 4-Position Locking Casters | Adj. Height Knockdown Steel Gantry Cranes w/ V-Groove Casters | Adj. Height Knockdown Steel Gantry Cranes w/ Total Locking Casters | Adj. Height Aluminum Gantry Cranes w/ 4-Position Locking Casters | Adj. Height Aluminum Gantry Cranes w/ V-Groove Casters | Adj. Height Aluminum Gantry Cranes w/ Total Locking Casters | Adj. Height Aluminum Gantry Cranes w/ Pneumatic Casters | Fixed Height Steel Gantry Cranes w/ 4-Position Locking Casters | Fixed Height Steel Gantry Cranes w/ V-Groove Casters | Fixed Height Steel Gantry Cranes w/ Total Locking Casters | Fixed Height Steel Gantry Cranes w/ Pneumatic Casters | Fixed Height Knockdown Steel Gantry Cranes w/ 4-Position Locking Casters | Fixed Height Knockdown Steel Gantry Cranes w/ V-Groove Casters | Fixed Height Knockdown Steel Gantry Cranes w/ Total Locking Casters | Fixed Height Aluminum Gantry Cranes w/ 4-Position Locking Casters | Fixed Height Aluminum Gantry Cranes w/ Adj. Leveling Option

Adjustable Height Aluminum Gantry Cranes with Adjustable Leveling Option

model: AHA-4-8-10-ALO

Model # Description Attributes Net Wt.
(lbs)

* Usable Distance Between uprights is overall I-Beam Length minus 18" -- Usable Trolley Travel length is overall I-Beam Length minus 23-3/4"

All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.

KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = BABAA Compliant = 360 Image Warranty
= New Images Coming Soon! = Dimension Image = Works w/ Skid Only = Flatbed Truck Required

If you did not find an expected Model or SKU # in the table, try the Options Section Below
AHA-2-10-10-ALO
AHA-2-10-12-ALO
AHA-2-10-8-ALO
AHA-2-12-10-ALO
AHA-2-12-12-ALO
AHA-2-12-8-ALO
AHA-2-15-10-ALO
AHA-2-15-12-ALO
AHA-2-15-8-ALO
AHA-2-8-10-ALO
AHA-2-8-12-ALO
AHA-2-8-8-ALO
AHA-2-ALO-RF
AHA-4-10-10-ALO
AHA-4-10-12-ALO
AHA-4-10-8-ALO
AHA-4-12-10-ALO
AHA-4-12-12-ALO
AHA-4-12-8-ALO
AHA-4-15-10-ALO
AHA-4-15-12-ALO
AHA-4-15-8-ALO
AHA-4-8-10-ALO
AHA-4-8-12-ALO
AHA-4-8-8-ALO
AHA-4-ALO-RF
For More Details of the Option Click the Red Model Button
Model Image Details Icons Wt.

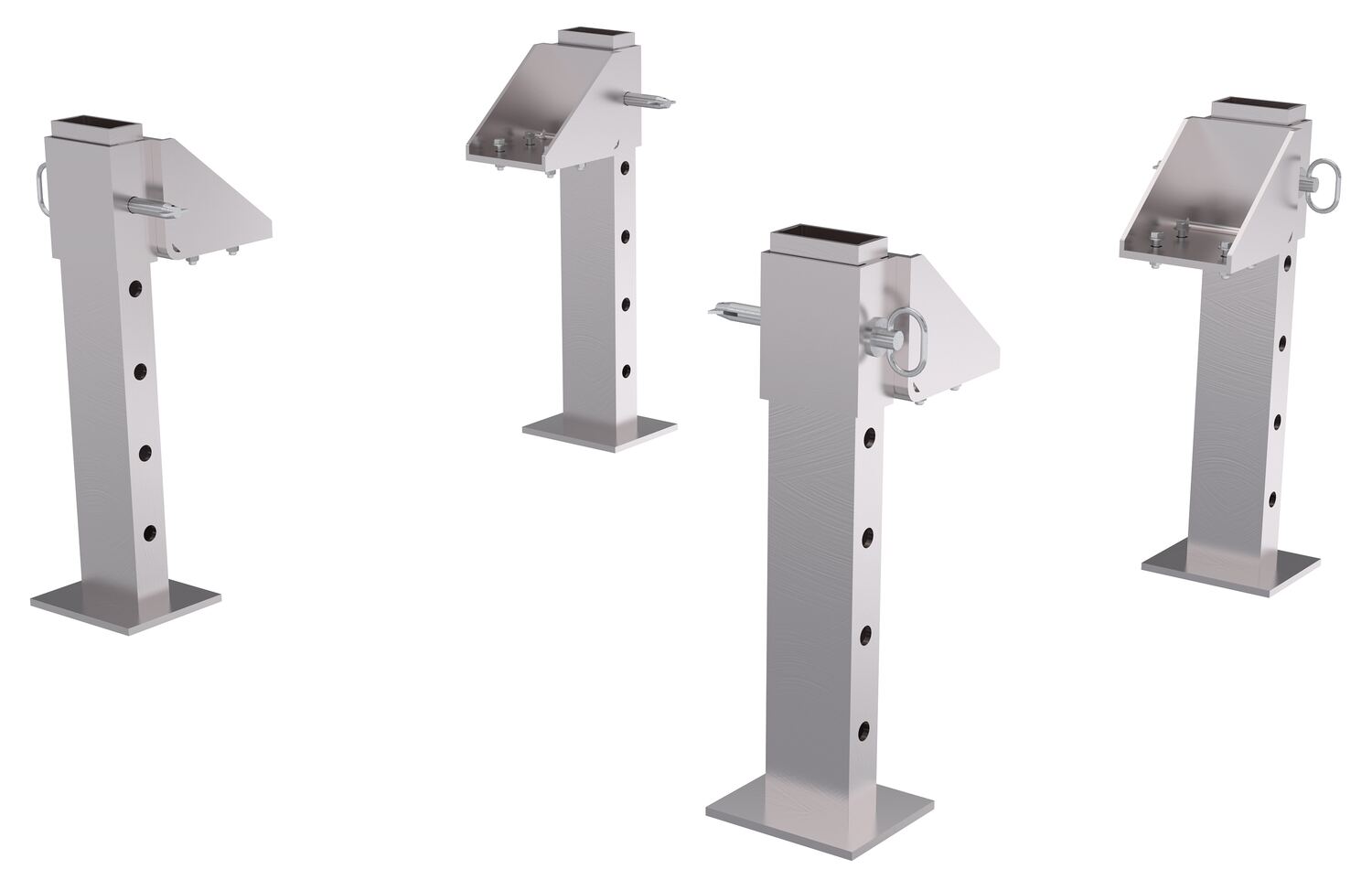

AHA-2-ALO-RF AHA-2-ALO-RF Aluminum Adjustable Height Retro Fit Kit 2,000 lb. Capacity 1 Year Limited Warranty NEW 54

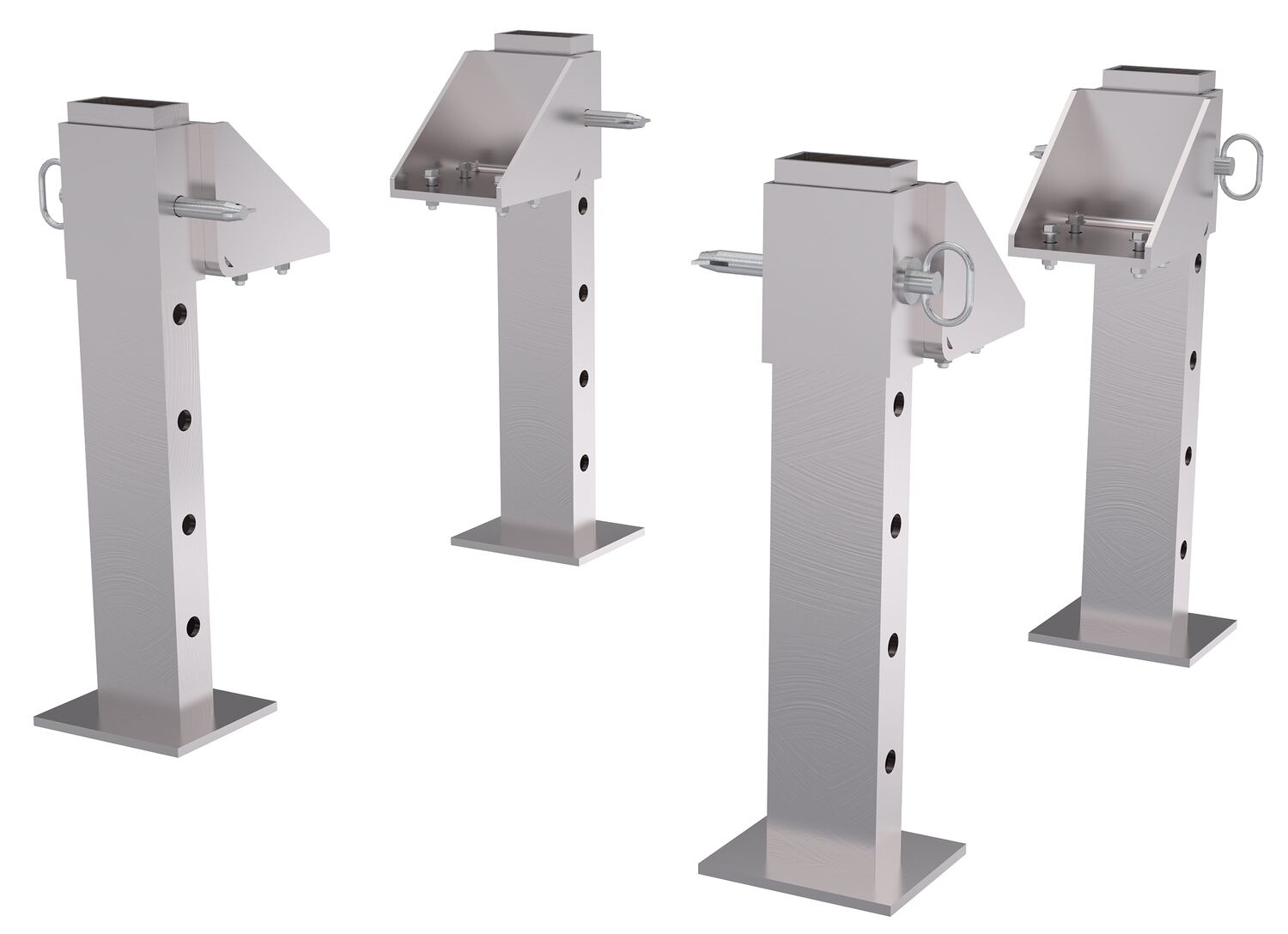

AHA-4-ALO-RF AHA-4-ALO-RF Aluminum Adjustable Height Retro Fit Kit 4,000 Lb. Capacity 1 Year Limited Warranty NEW 54

.

If you did not find an expected Model or SKU # in this table, try the Product Specifications Section Above
PDFs will open in a new window when clicked.

Manuals

AHA

Survey Sheets

AHA

Engineering Drawings

AHA-2-10-10-ALO

AHA-2-10-12-ALO

AHA-2-10-8-ALO

AHA-2-12-10-ALO

AHA-2-12-12-ALO

AHA-2-12-8-ALO

AHA-2-15-10-ALO

AHA-2-15-12-ALO

AHA-2-15-8-ALO

AHA-2-8-10-ALO

AHA-2-8-12-ALO

AHA-2-8-8-ALO

AHA-2-ALO-RF

AHA-4-10-10-ALO

AHA-4-10-12-ALO

AHA-4-10-8-ALO

AHA-4-12-10-ALO

AHA-4-12-12-ALO

AHA-4-12-8-ALO

AHA-4-15-10-ALO

AHA-4-15-12-ALO

AHA-4-15-8-ALO

AHA-4-8-10-ALO

AHA-4-8-12-ALO

AHA-4-8-8-ALO

AHA-4-ALO-RF

Testing Certificates

AHA-2-10-10-ALO

AHA-2-10-12-ALO

AHA-2-10-8-ALO

AHA-2-12-10-ALO

AHA-2-12-12-ALO

AHA-2-12-8-ALO

AHA-2-15-10-ALO

AHA-2-15-12-ALO

AHA-2-15-8-ALO

AHA-2-8-10-ALO

AHA-2-8-12-ALO

AHA-2-8-8-ALO

AHA-2-ALO-RF

AHA-4-10-10-ALO

AHA-4-10-12-ALO

AHA-4-10-8-ALO

AHA-4-12-10-ALO

AHA-4-12-12-ALO

AHA-4-12-8-ALO

AHA-4-15-10-ALO

AHA-4-15-12-ALO

AHA-4-15-8-ALO

AHA-4-8-10-ALO

AHA-4-8-12-ALO

AHA-4-8-8-ALO

AHA-4-ALO-RF

SDS Sheets

No SDS Sheets For This Product

Other PDFs

No "Other PDFs" For This Product

Related or Similar Products:

More From Gantry Cranes





Adjustable Height Aluminum Gan...




An adjustable height Aluminum Gantry crane is valuable asset in warehouse and manufacturing settings. The crane has an all-aluminum construction making it corrosion resistant and perfect for outdoor use. All pinned connections make it possible for personnel to set up and take down in just minutes. The adjustable legs allow the crane to be raised or lowered in increments. Each leg has a pin style adjustment design with pre drilled alteration holes. With a rectangle shaped base included on each leg, the crane has a strong foundational support. Hoists & Trollies can be ordered seperately.

  • Height and leveling adjustments can be completed with support from fork truck or other overhead lifting device
  • Flat footed design provides surface stability
  • Beam length offers ample space for lifting and lowering
  • Lifting hoist/trolley available separately

Check Out Vestil's Other Gantry Crane Styles:
Adj. Height Steel Gantry Cranes w/ 4-Position Locking Casters | Adj. Height Steel Gantry Cranes w/ V-Groove Casters | Adj. Height Steel Gantry Cranes w/ Total Locking Casters | Adj. Height Steel Gantry Cranes w/ Pneumatic Casters | Adj. Height Knockdown Steel Gantry Cranes w/ 4-Position Locking Casters | Adj. Height Knockdown Steel Gantry Cranes w/ V-Groove Casters | Adj. Height Knockdown Steel Gantry Cranes w/ Total Locking Casters | Adj. Height Aluminum Gantry Cranes w/ 4-Position Locking Casters | Adj. Height Aluminum Gantry Cranes w/ V-Groove Casters | Adj. Height Aluminum Gantry Cranes w/ Total Locking Casters | Adj. Height Aluminum Gantry Cranes w/ Pneumatic Casters | Fixed Height Steel Gantry Cranes w/ 4-Position Locking Casters | Fixed Height Steel Gantry Cranes w/ V-Groove Casters | Fixed Height Steel Gantry Cranes w/ Total Locking Casters | Fixed Height Steel Gantry Cranes w/ Pneumatic Casters | Fixed Height Knockdown Steel Gantry Cranes w/ 4-Position Locking Casters | Fixed Height Knockdown Steel Gantry Cranes w/ V-Groove Casters | Fixed Height Knockdown Steel Gantry Cranes w/ Total Locking Casters | Fixed Height Aluminum Gantry Cranes w/ 4-Position Locking Casters | Fixed Height Aluminum Gantry Cranes w/ Adj. Leveling Option


Model # Description Attributes Net Wt.
(lbs)

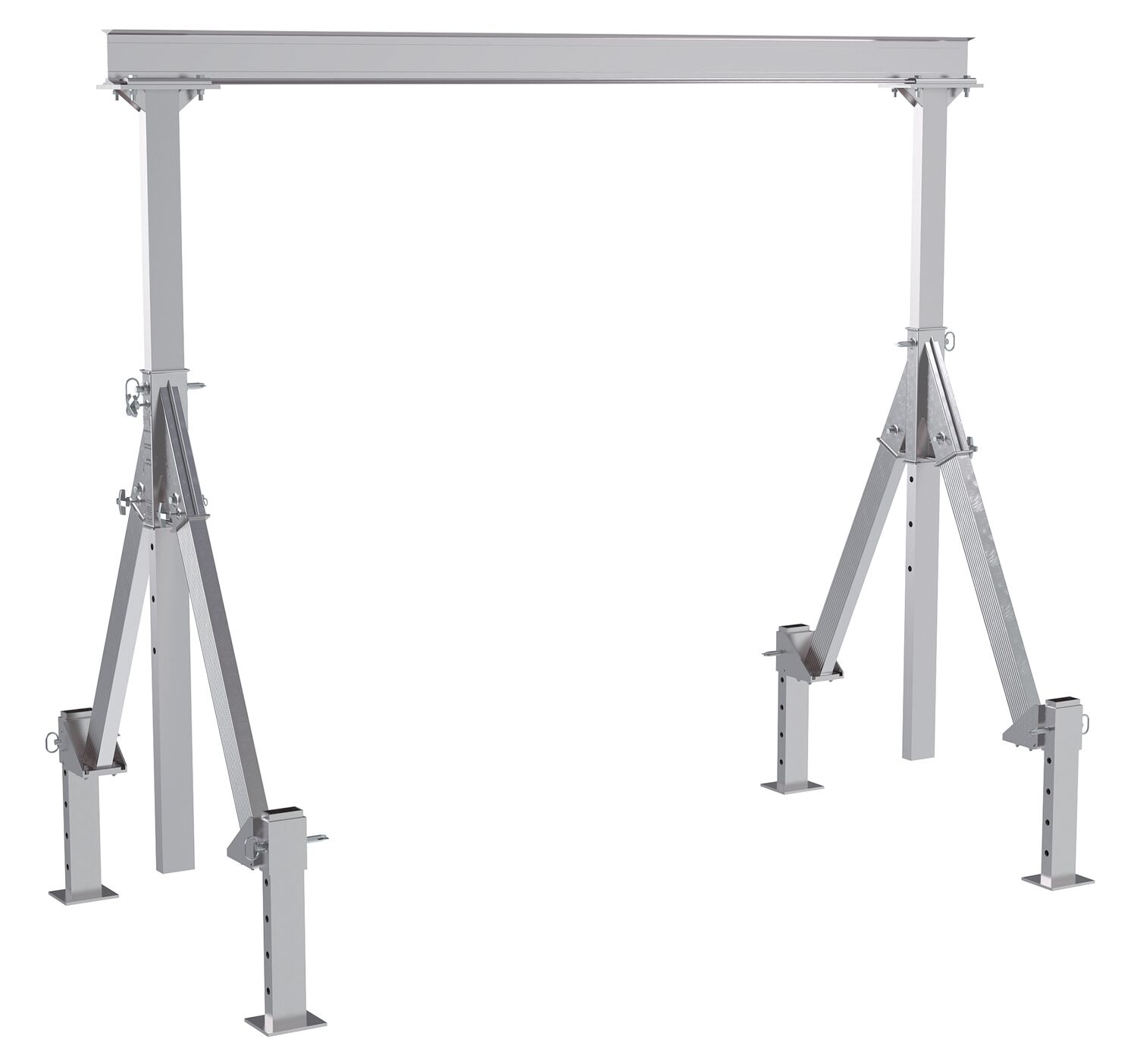

AHA-2-10-10-ALO AHA-2-10-10-ALOAluminum Adjustable Height Gantry Crane With Adjustable Leveling Option 10 Ft. Wide X 10 Ft. Max Usable Height 2,000 Lb. Capacity SilverUniform Capacity (lb.): 2,000
Adjustable Clearance Range (in.): 92 to 130		264

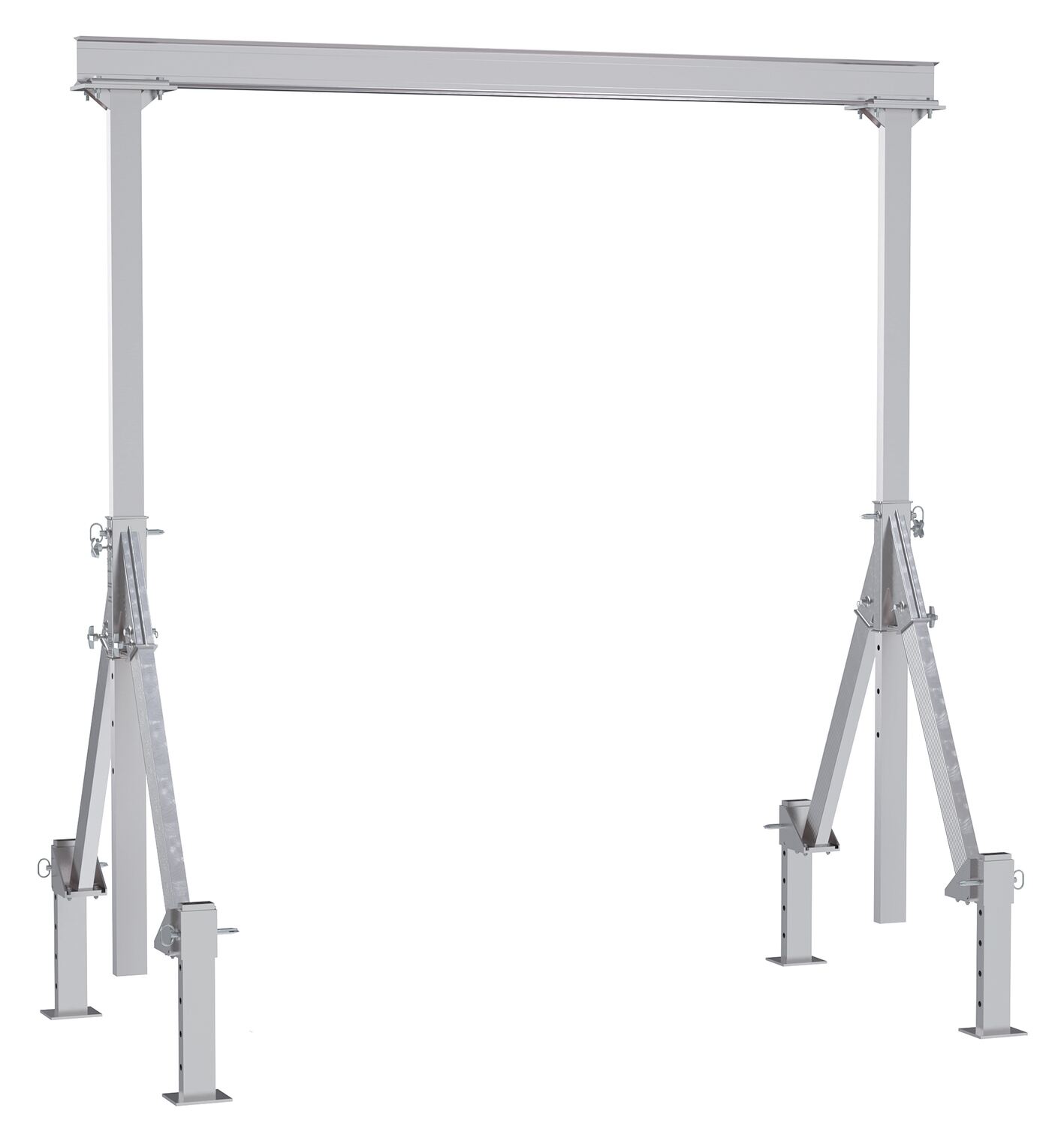

AHA-2-10-12-ALO AHA-2-10-12-ALOAluminum Adjustable Height Gantry Crane With Adjustable Leveling Option 10 Ft. Wide X 12 Ft. Max Usable Height 2,000 Lb. Capacity SilverUniform Capacity (lb.): 2,000
Adjustable Clearance Range (in.): 122 to 144		273

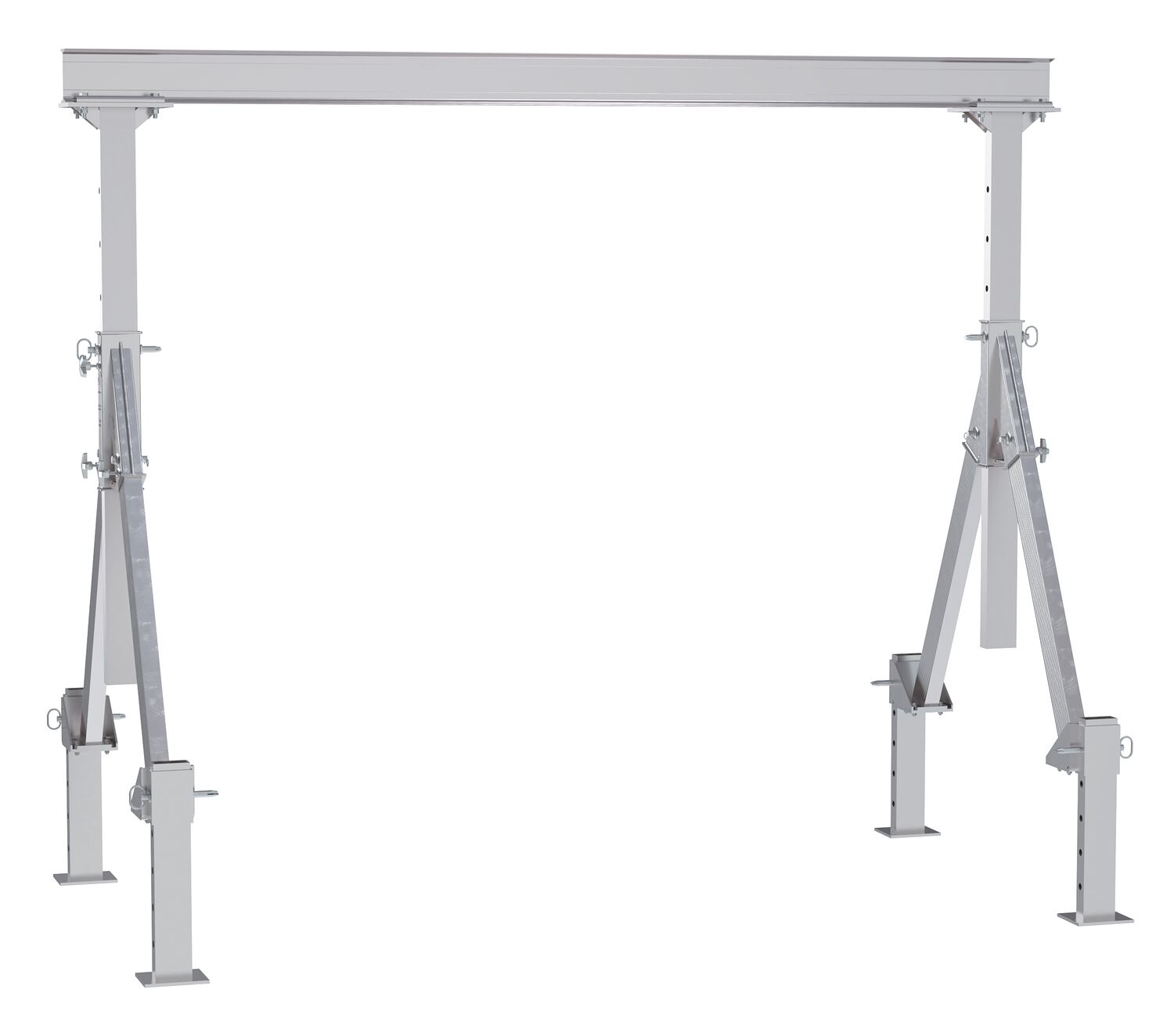

AHA-2-10-8-ALO AHA-2-10-8-ALOAluminum Adjustable Height Gantry Crane With Adjustable Leveling Option 10 Ft. Wide X 8 Ft. Max Usable Height 2,000 Lb. Capacity SilverUniform Capacity (lb.): 2,000
Adjustable Clearance Range (in.): 68 to 106		243

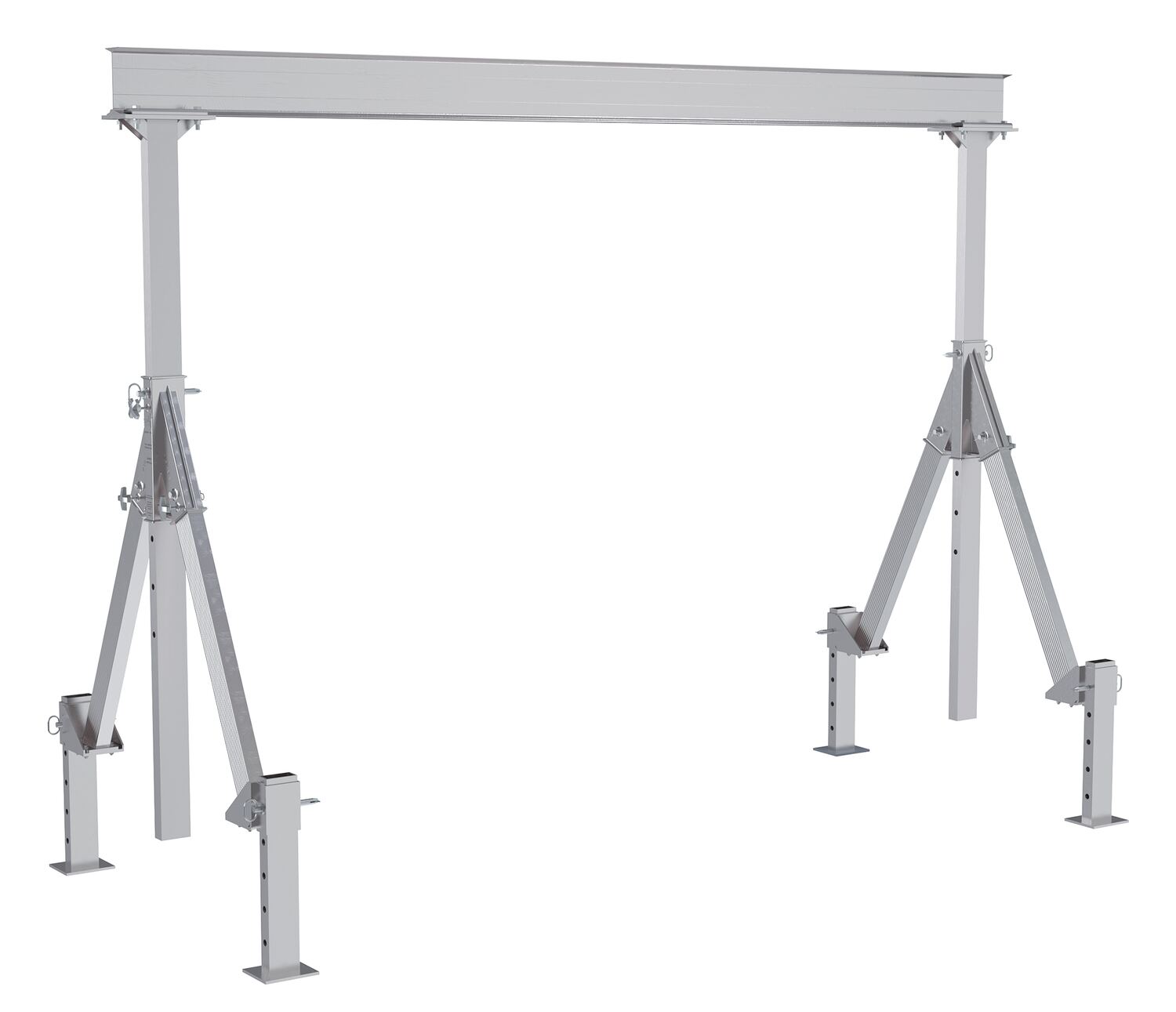

AHA-2-12-10-ALO AHA-2-12-10-ALOAluminum Adjustable Height Gantry Crane With Adjustable Leveling Option 12 Ft. Wide X 10 Ft. Max Usable Height 2,000 Lb. Capacity SilverUniform Capacity (lb.): 2,000
Adjustable Clearance Range (in.): 92 to 130		286
AHA-2-12-12-ALO AHA-2-12-12-ALOAluminum Adjustable Height Gantry Crane With Adjustable Leveling Option 12 Ft. Wide X 12 Ft. Max Usable Height 2,000 Lb. Capacity SilverUniform Capacity (lb.): 2,000
Adjustable Clearance Range (in.): 114 to 152		298

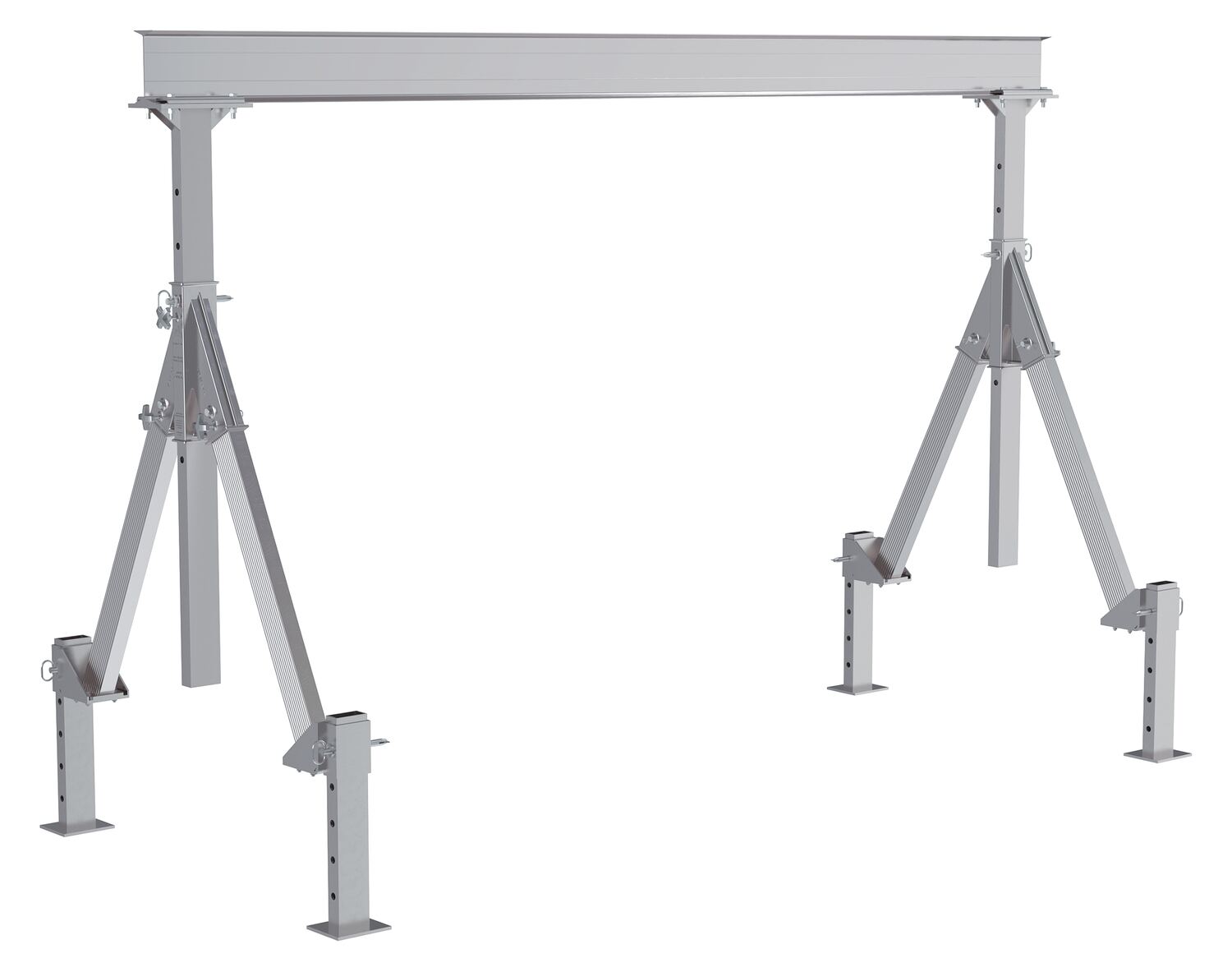

AHA-2-12-8-ALO AHA-2-12-8-ALOAluminum Adjustable Height Gantry Crane With Adjustable Leveling Option 12 Ft. Wide X 8 Ft. Max Usable Height 2,000 Lb. Capacity SilverUniform Capacity (lb.): 2,000
Adjustable Clearance Range (in.): 68 to 106		278

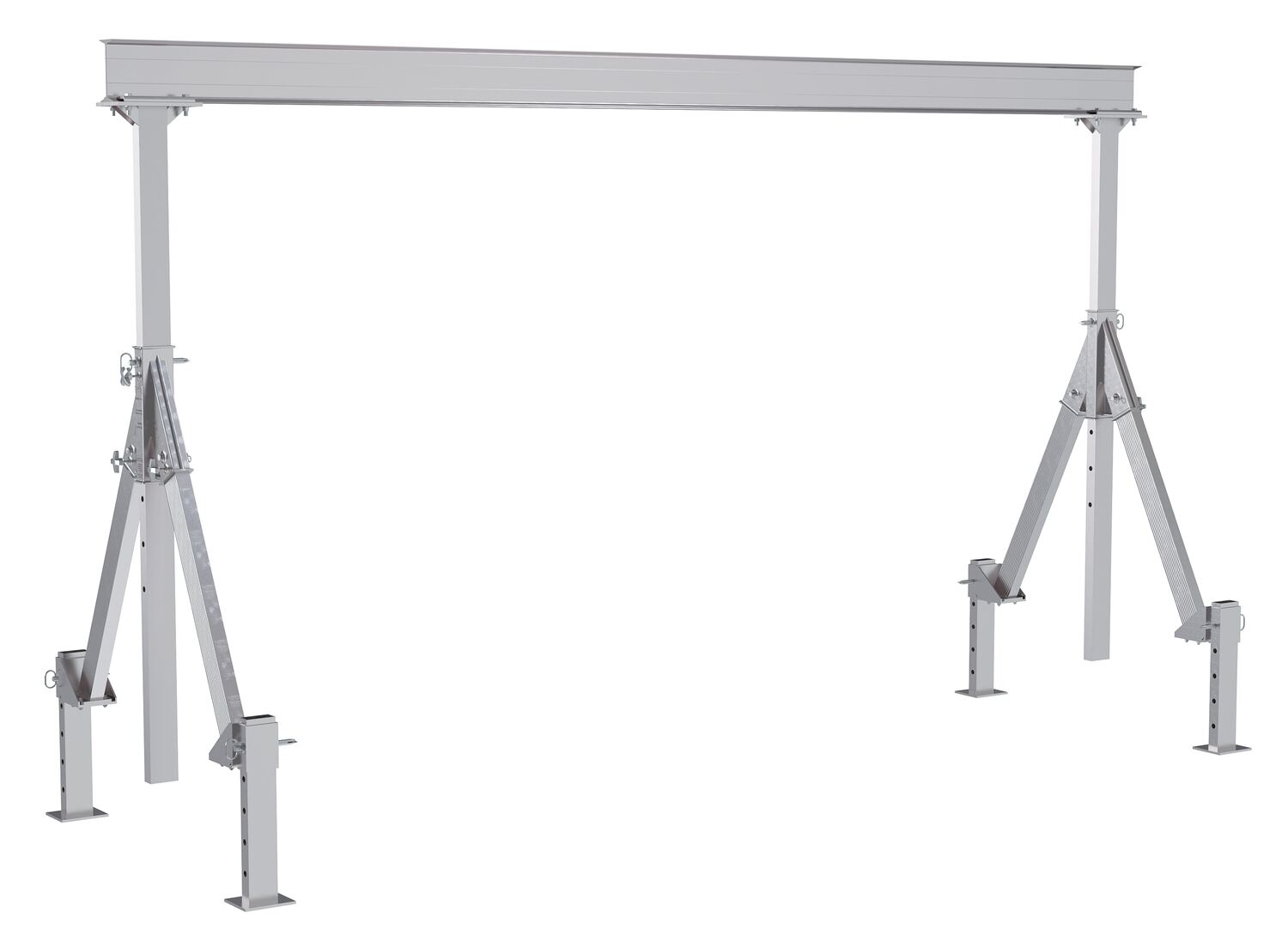

AHA-2-15-10-ALO AHA-2-15-10-ALOAluminum Adjustable Height Gantry Crane With Adjustable Leveling Option 15 Ft. Wide X 10 Ft. Max Usable Height 2,000 Lb. Capacity SilverUniform Capacity (lb.): 2,000
Adjustable Clearance Range (in.): 92 to 130		376
AHA-2-15-12-ALO AHA-2-15-12-ALOAluminum Adjustable Height Gantry Crane With Adjustable Leveling Option 15 Ft. Wide X 12 Ft. Max Usable Height 2,000 Lb. Capacity SilverUniform Capacity (lb.): 2,000
Adjustment Clearance Range (in.): 114 to 152		292

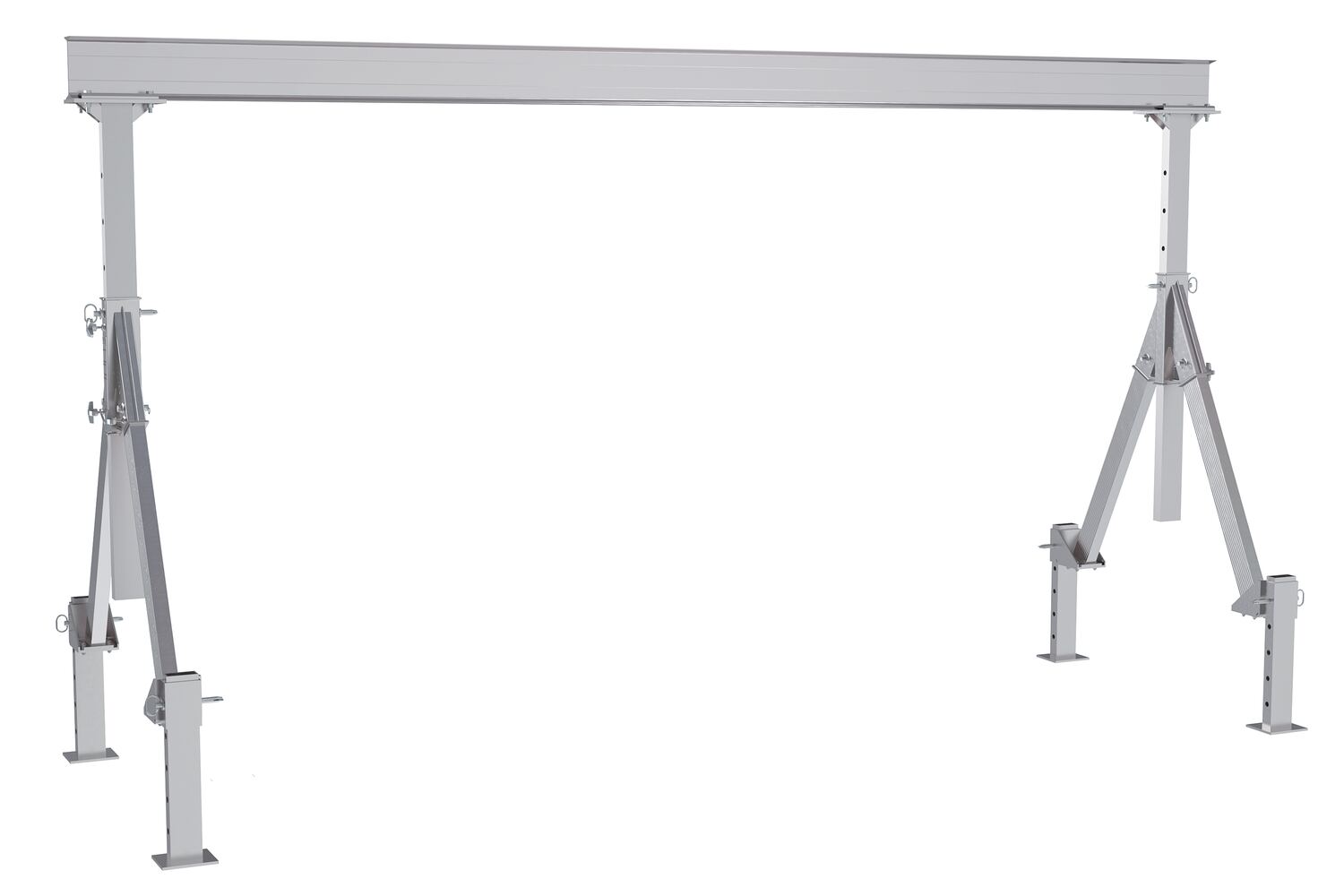

AHA-2-15-8-ALO AHA-2-15-8-ALOAluminum Adjustable Height Gantry Crane With Adjustable Leveling Option 15 Ft. Wide X 8 Ft. Max Usable Height 2,000 Lb. Capacity SilverUniform Capacity (lb.): 2,000
Adjustable Clearance Range (in.): 68 to 106		332

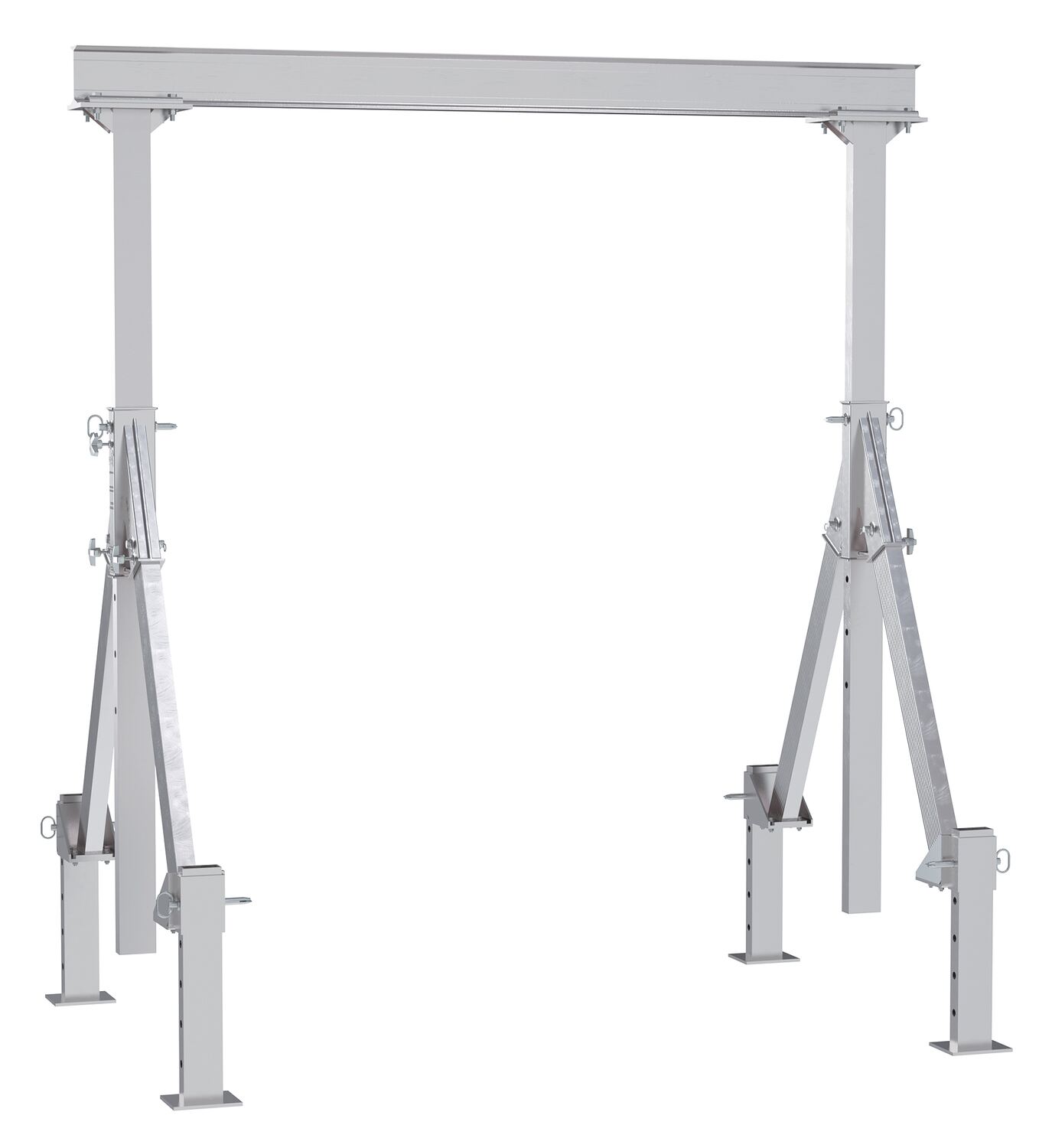

AHA-2-8-10-ALO AHA-2-8-10-ALOAluminum Adjustable Height Gantry Crane With Adjustable Leveling Option 8 Ft. Wide X 10 Ft. Max Usable Height 2,000 Lb. Capacity SilverUniform Capacity (lb.): 2,000
Adjustable Clearance Range (in.): 92 to 130		251

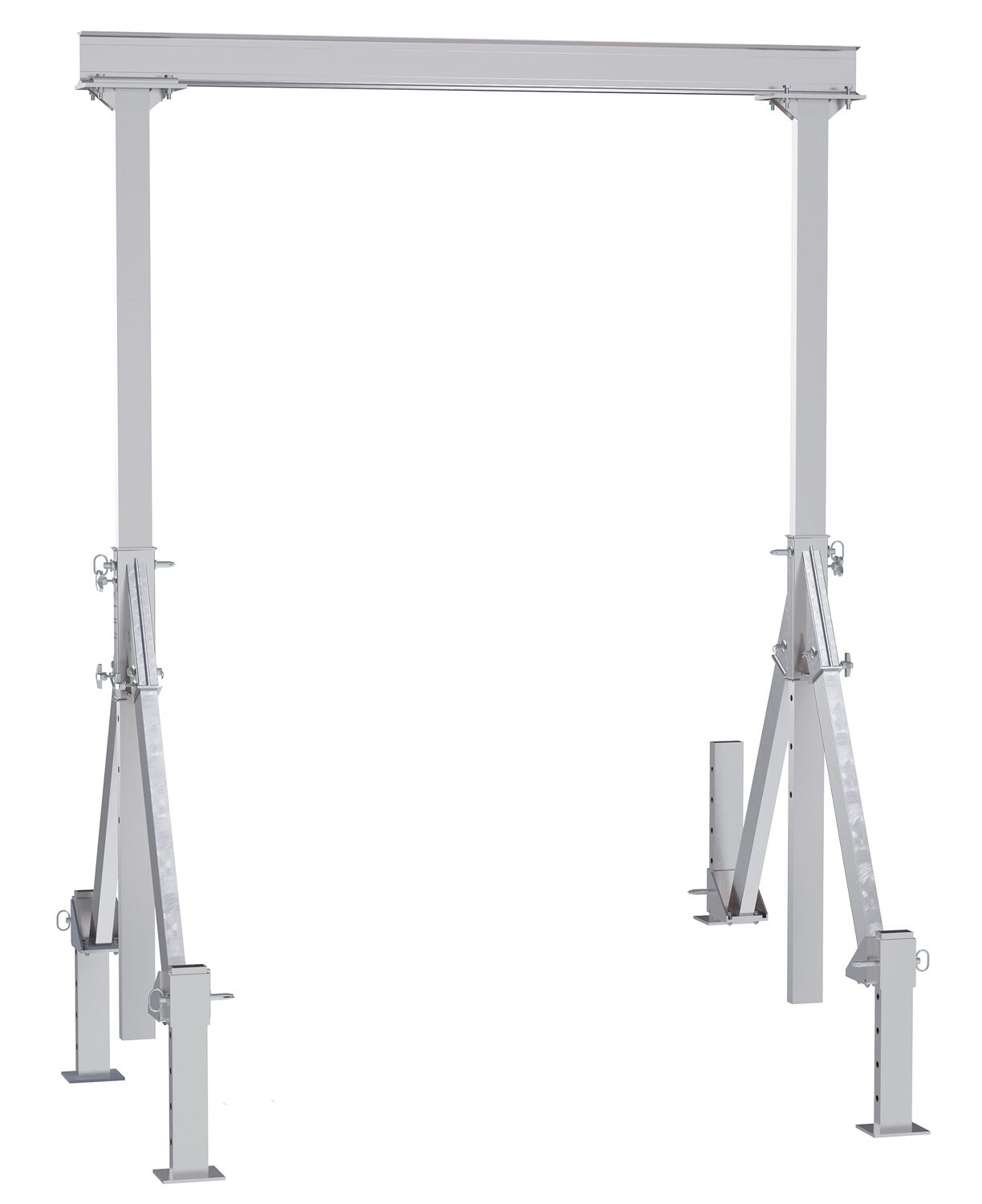

AHA-2-8-12-ALO AHA-2-8-12-ALOAluminum Adjustable Height Gantry Crane With Adjustable Leveling Option 8 Ft. Wide X 12 Ft. Max Usable Height 2,000 Lb. Capacity SilverUniform Capacity (lb.): 2,000
Adjustable Clearance Range (in.): 114 to 152		258

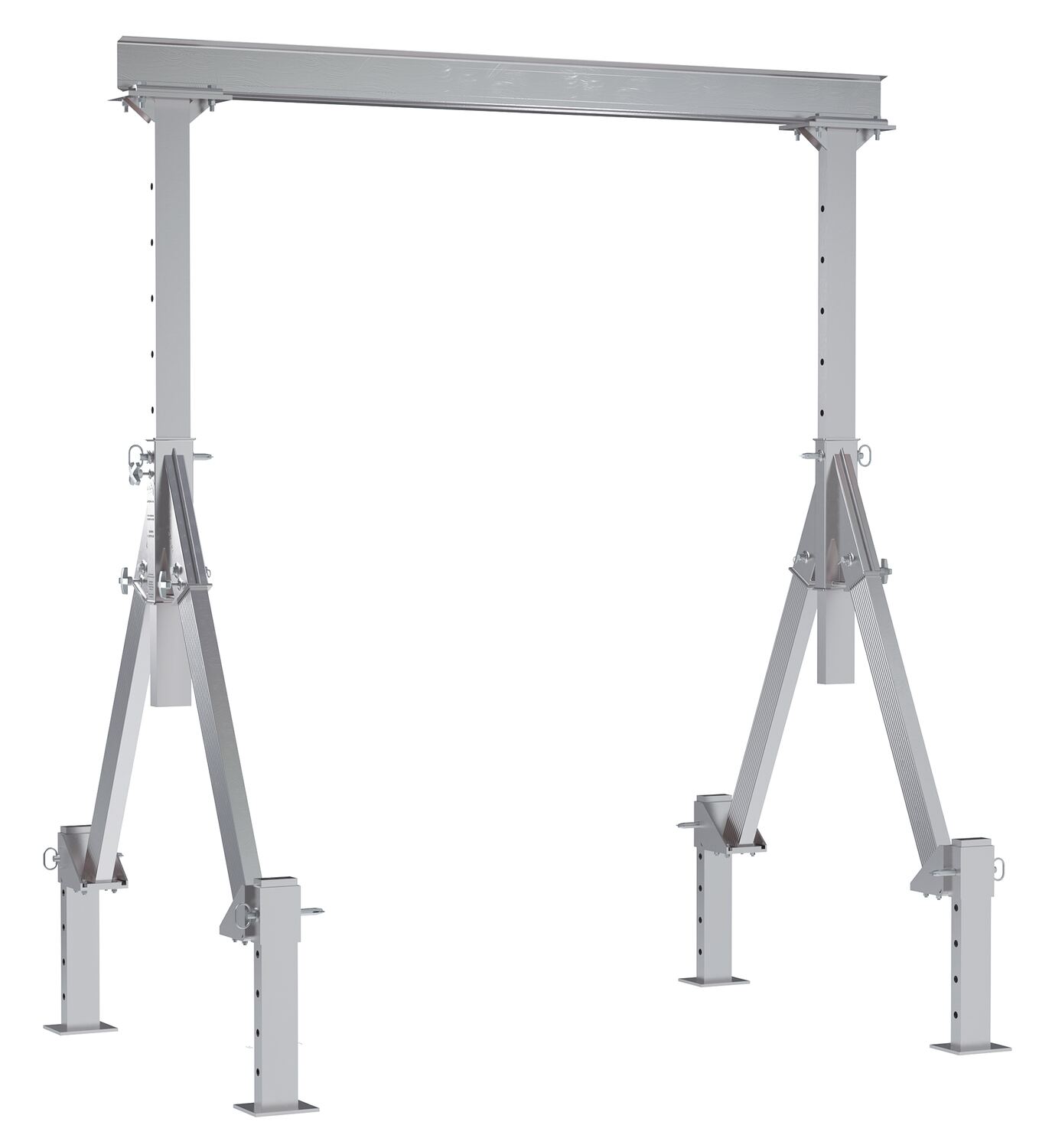

AHA-2-8-8-ALO AHA-2-8-8-ALOAluminum Adjustable Height Gantry Crane With Adjustable Leveling Option 8 Ft. Wide X 8 Ft. Max Usable Height 2,000 Lb. Capacity SilverUniform Capacity (lb.): 2,000
Adjustable Clearance Range (in.): 68 to 106		246
AHA-4-10-10-ALO AHA-4-10-10-ALOAluminum Adjustable Height Gantry Crane With Adjustable Leveling Option 10 Ft. Wide x 10 Ft. Max Usable Height 4,000 Lb. Capacity SilverUniform Capacity (lb.): 4,000
Adjustable Clearance Range (in.): 92-1/8 to 130-1/8		319

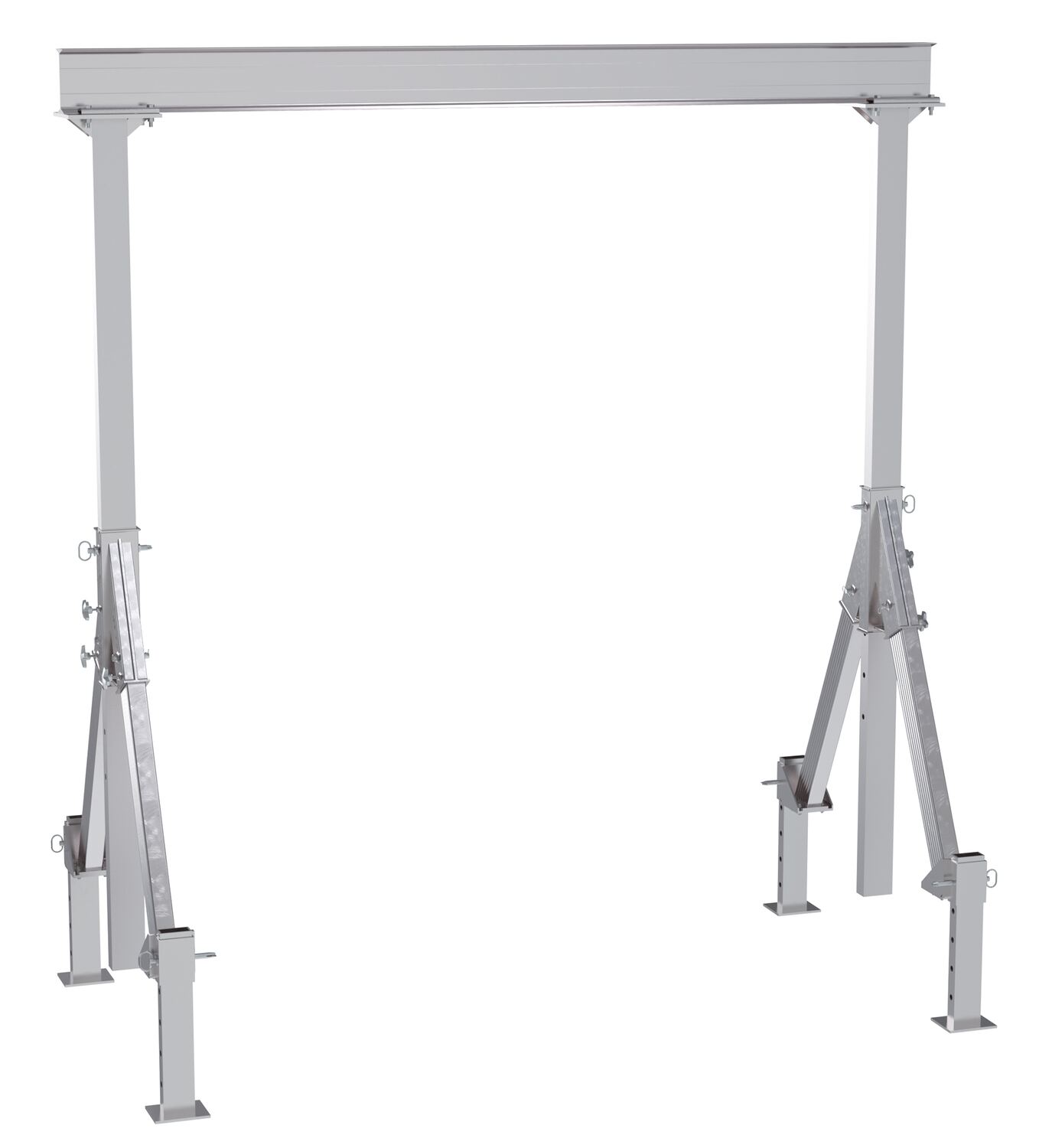

AHA-4-10-12-ALO AHA-4-10-12-ALOAluminum Adjustable Height Gantry Crane With Adjustable Leveling Option 10 Ft. Wide x 12 Ft. Max Usable Height 4,000 Lb. Capacity SilverUniform Capacity (lb.): 4,000
Adjustable Clearance Range (in.): 114-1/8 to 152-1/8		361

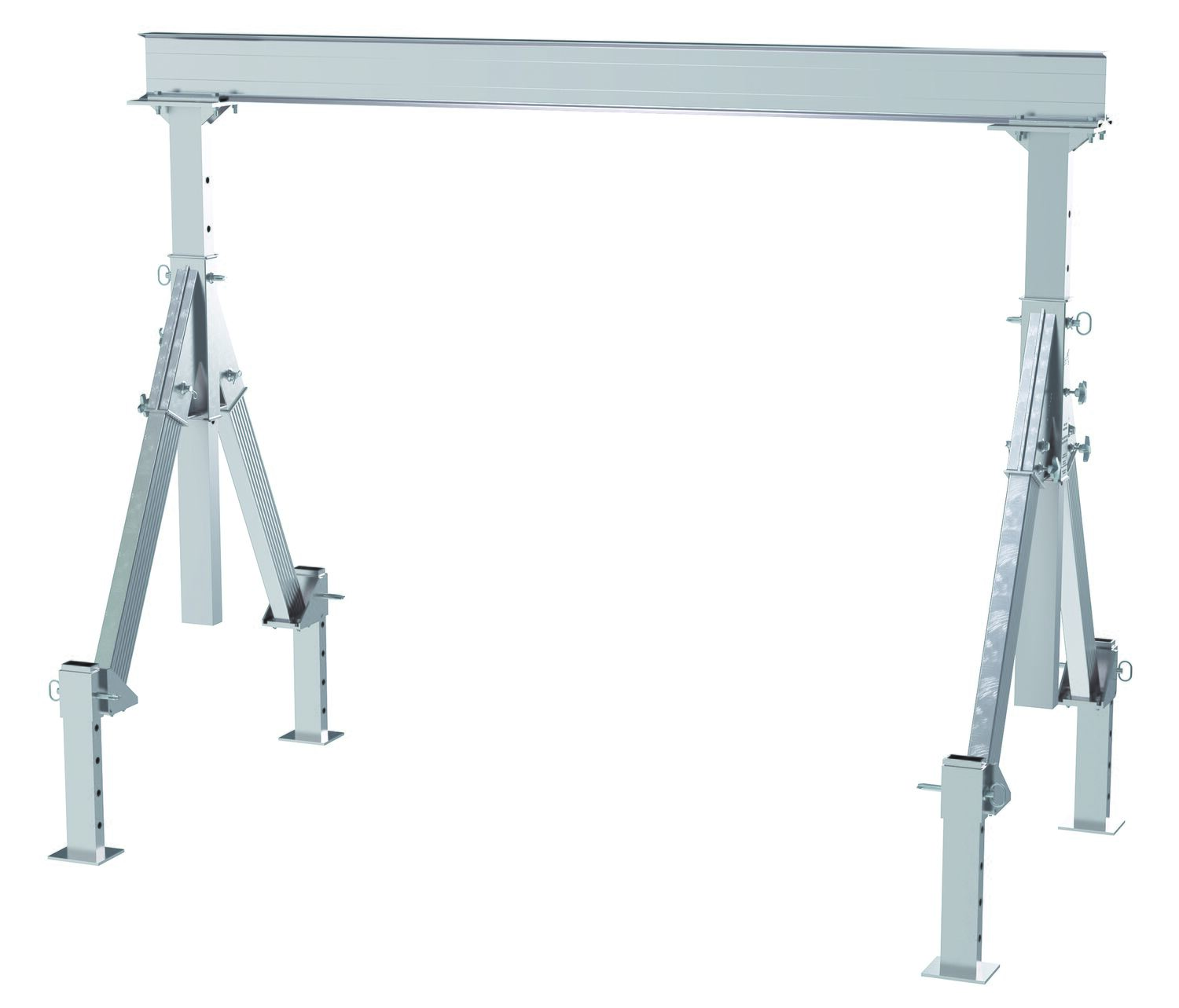

AHA-4-10-8-ALO AHA-4-10-8-ALOAluminum Adjustable Height Gantry Crane With Adjustable Leveling Option 10 Ft. Wide x 8 Ft. Max Usable Height 4,000 Lb. Capacity SilverUniform Capacity (lb.): 4,000
Adjustment Clearance Range (in.): 68-1/8 to 106-1/8		310
AHA-4-12-10-ALO AHA-4-12-10-ALOAluminum Adjustable Height Gantry Crane With Adjustable Leveling Option 12 Ft. Wide x 10 Ft. Max Usable Height 4,000 Lb. Capacity SilverUniform Capacity (lb.): 4,000
Adjustable Clearance Range (in.): 92-1/8 to 130-1/8		337

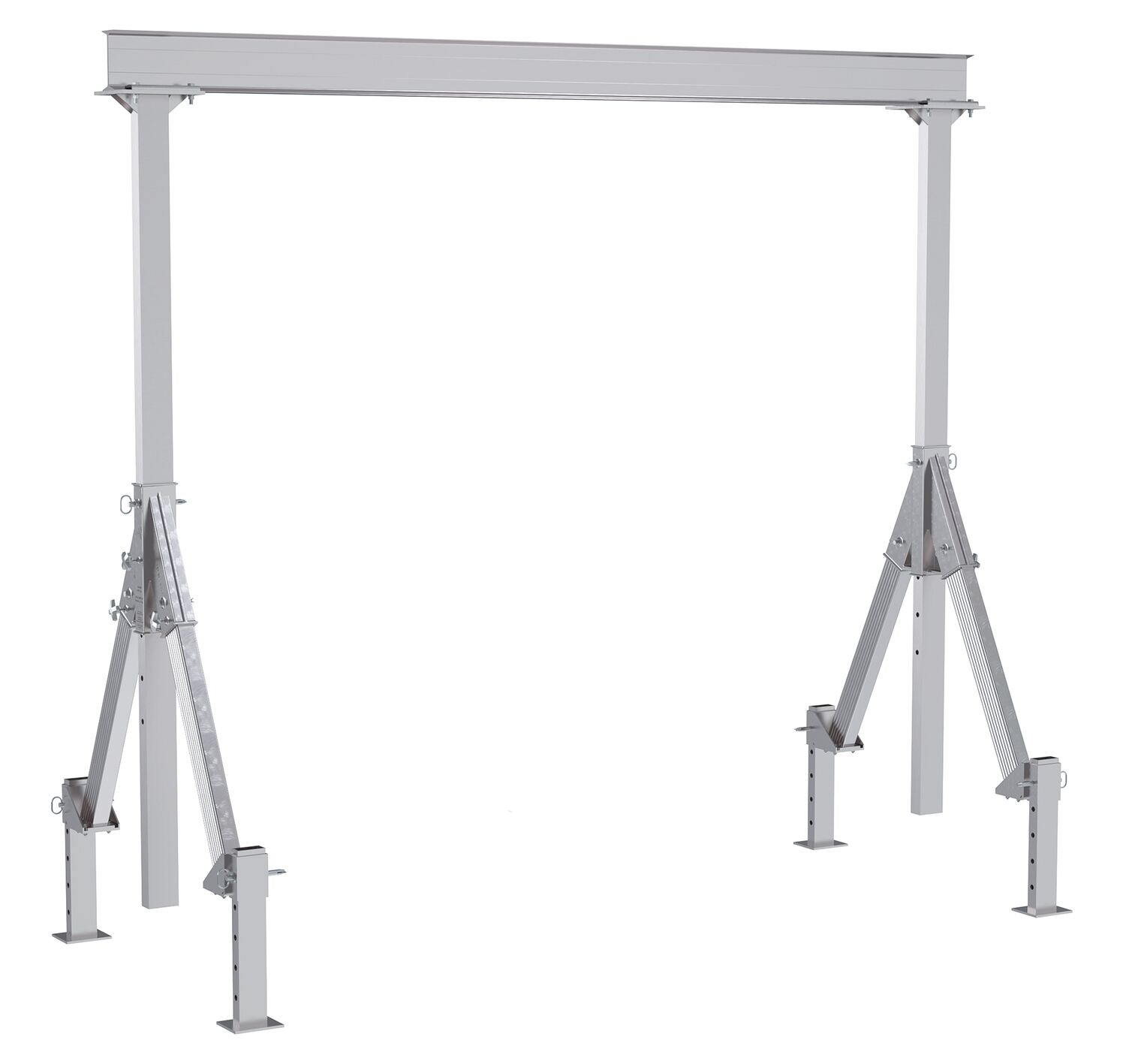

AHA-4-12-12-ALO AHA-4-12-12-ALOAluminum Adjustable Height Gantry Crane With Adjustable Leveling Option 12 Ft. Wide x 12 Ft. Max Usable Height 4,000 Lb. Capacity SilverUniform Capacity (lb.): 4,000
Adjustable Clearance Range (in.): 114-1/8 to 152-1/8		362

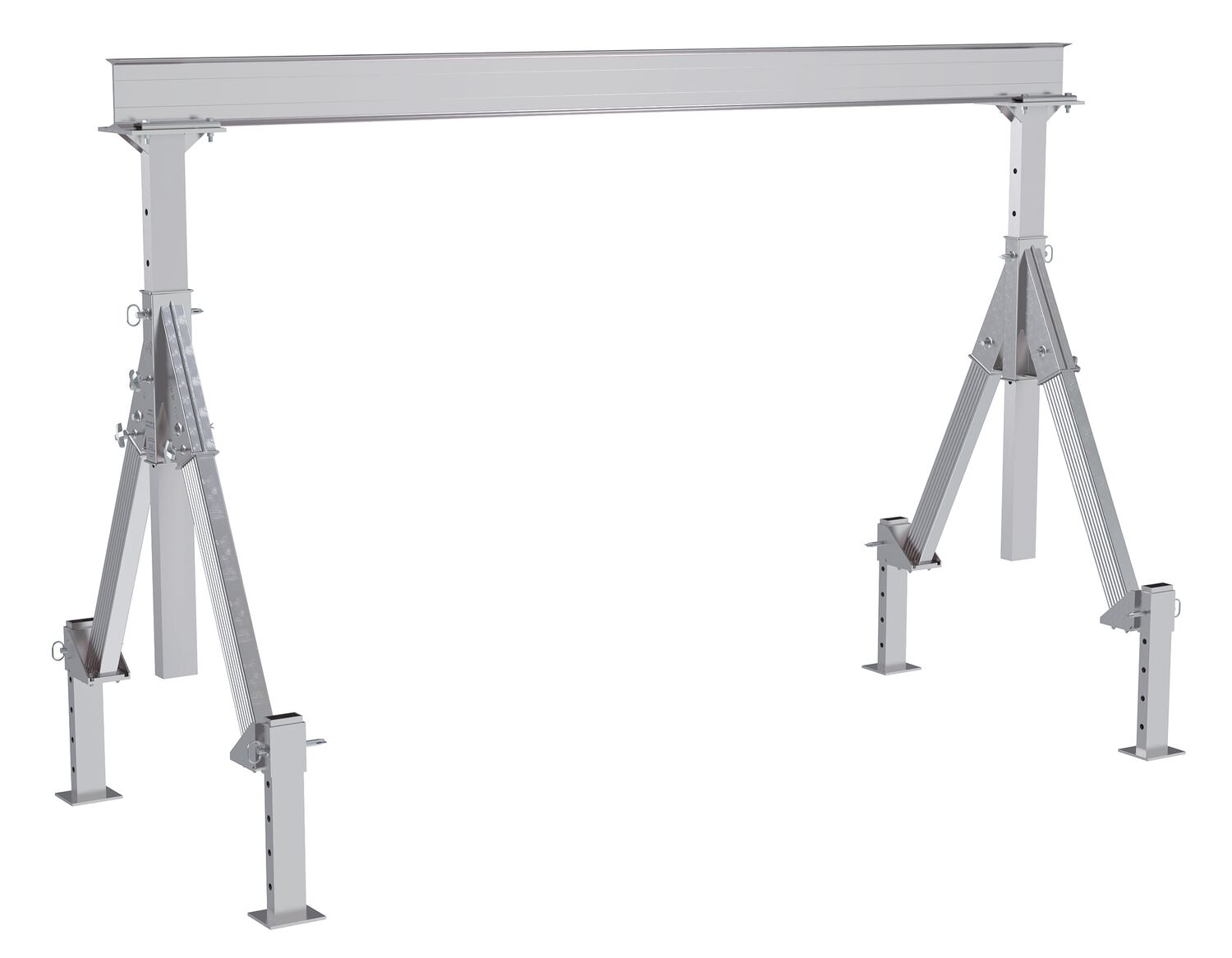

AHA-4-12-8-ALO AHA-4-12-8-ALOAluminum Adjustable Height Gantry Crane With Adjustable Leveling Option 12 Ft. Wide x 8 Ft. Max Usable Height 4,000 Lb. Capacity SilverUniform Capacity (lb.): 4,000
Adjustable Clearance Range (in.): 68-1/8 to 106-1/8		314
AHA-4-15-10-ALO AHA-4-15-10-ALOAluminum Adjustable Height Gantry Crane With Adjustable Leveling Option 15 Ft. Wide X 10 Ft. Max Usable Height 4,000 Lb. Capacity SilverUniform Capacity (lb.): 4,000
Adjustable Clearance Range (in.): 92-1/8 to 130-1/8		376
AHA-4-15-12-ALO AHA-4-15-12-ALOAluminum Adjustable Height Gantry Crane With Adjustable Leveling Option 15 Ft. Wide X 12 Ft. Max Usable Height 4,000 Lb. Capacity SilverUniform Capacity (lb.): 4,000
Adjustable Clearance Range (in.): 114-1/8 to 152-1/8		394
AHA-4-15-8-ALO AHA-4-15-8-ALOAluminum Adjustable Height Gantry Crane With Adjustable Leveling Option 15 Ft. Wide X 8 Ft. Max Usable Height 4,000 Lb. Capacity SilverUniform Capacity (lb.): 4,000
Adjustable Clearance Range (in.): 68-1/8 to 106-1/8		354
AHA-4-8-10-ALO AHA-4-8-10-ALOAluminum Adjustable Height Gantry Crane With Adjustable Leveling Option 8 Ft. Wide x 10 Ft. Max Usable Height 4,000 Lb. Capacity SilverUniform Capacity (lb.): 4,000
Adjustable Clearance Range (in.): 92-1/8 to 130-1/8		304
AHA-4-8-12-ALO AHA-4-8-12-ALOAluminum Adjustable Height Gantry Crane With Adjustable Leveling Option 8 Ft. Wide x 12 Ft. Max Usable Height 4,000 Lb. Capacity SilverUniform Capacity (lb.): 4,000
Adjustable Clearance Range (in.): 114-1/8 to 152-1/8		313

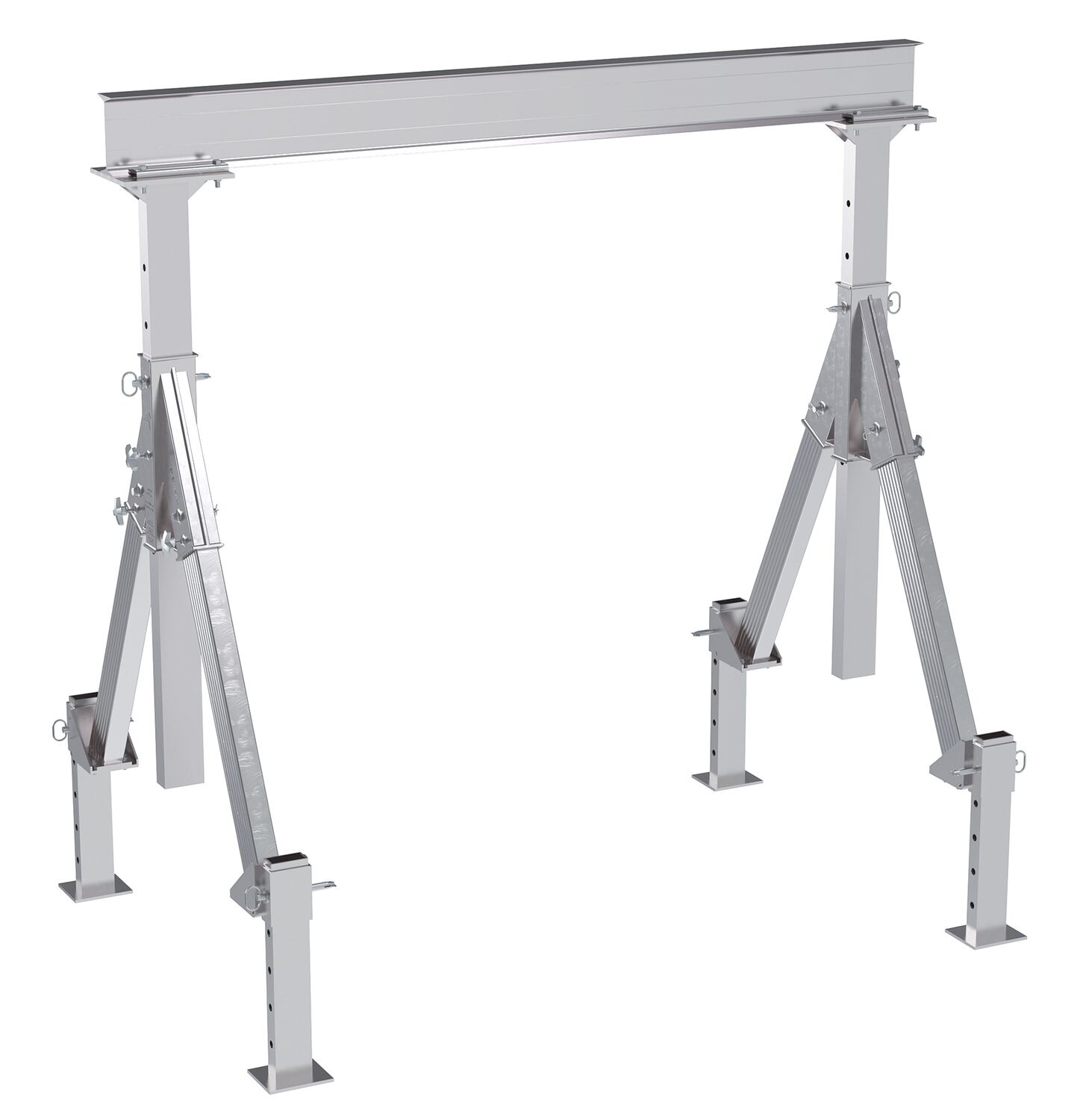

AHA-4-8-8-ALO AHA-4-8-8-ALOAluminum Adjustable Height Gantry Crane With Adjustable Leveling Option 8 Ft. Wide x 8 Ft. Max Usable Height 4,000 Lb. Capacity SilverUniform Capacity (lb.): 4,000
Adjustable Clearance Range (in.): 68-1/8 to 106-1/8		288
