ASP-48-3-HR

New ASP-48-3-HR Image(s) Coming Soon
Printer Friendly
Out of Stock - Please Contact Sales
ASP-48-3-HR
ASP-48-3-HR

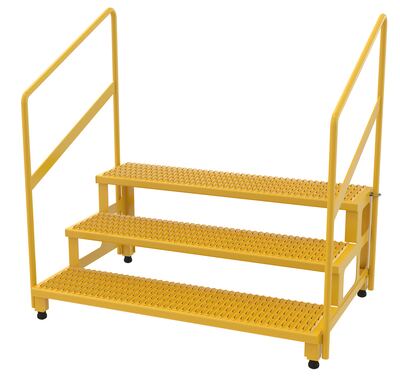

Steel Adjustable Step Stand 48 Inches Wide 3-Step with Handrails 500 Lb Capacity Yellow

The adjustable step-mate stand can be used as either a comfortable worker platform or a semi-permanent step. Step angle is maintained at a stable 30 degrees. Built of powder coated welded steel with schedule 40 steel handrails. Do not use the stand if it cannot be leveled properly or remains unstable despite adjusting the legs appropriately.

  • Independently adjustable height legs
  • Handrails included for user stability
  • Each leg fitted with rubber tip for better grip & traction
  • Serrated step surface provides excellent traction
Assembled Wt.(lbs.): 149 Assembled Size: 51.125"W x 33.875"L x 52"H

Total Ship Wt.(lbs.): 169 (only 1 package) Package 1 Size: 40"W x 48"D x 38"H Color: Yellow Non-Returnable

Usable Width (in.): 49 Number of Steps: 3 Uniform Capacity (lb.): 500
Bottom Step Height Minimum (in.): 6 Bottom Step Height Maximum (in.): 8-1/4 Middle Step Height Minimum (in.): 13
Middle Step Height Maximum (in.): 15-1/4 Top Step Height Minimum (in.): 20 Top Step Height Maximum (in.): 22-1/4
Step Material: Serrated Steel Step Depth (in.): 11-3/4 Step Angle (degrees): 30
Leg Feature: Anti-Slip Tips Adjustable Legs (Y/N): Yes Handrail Construction: Steel Tubing
Includes: 2 Bolt-On Handrails

Quickship Item?


NOT A Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

90 Days Limited Warranty

Details For Model: ASP-48-3-HR
Out of Stock - Please Contact Sales
ASP-48-3-HR

Steel Adjustable Step Stand 48 Inches Wide 3-Step with Handrails 500 Lb Capacity Yellow

The adjustable step-mate stand can be used as either a comfortable worker platform or a semi-permanent step. Step angle is maintained at a stable 30 degrees. Built of powder coated welded steel with schedule 40 steel handrails. Do not use the stand if it cannot be leveled properly or remains unstable despite adjusting the legs appropriately.

  • Independently adjustable height legs
  • Handrails included for user stability
  • Each leg fitted with rubber tip for better grip & traction
  • Serrated step surface provides excellent traction
Dimensions: 51.125"W x 33.875"L x 52"H Sell UOM: -- Color: Yellow
Material: -- UPC: -- GTIN: --
Warranty: -- Shipping Weight: 169 Quickship Item? --
Can It Ship UPS? -- Option? -- Origin: --
Assembly: -- Packaging: -- Drawing Required? --
Usable Width (in.): 49 Number of Steps: 3 Uniform Capacity (lb.): 500
Bottom Step Height Minimum (in.): 6 Bottom Step Height Maximum (in.): 8-1/4 Middle Step Height Minimum (in.): 13
Middle Step Height Maximum (in.): 15-1/4 Top Step Height Minimum (in.): 20 Top Step Height Maximum (in.): 22-1/4
Step Material: Serrated Steel Step Depth (in.): 11-3/4 Step Angle (degrees): 30
Leg Feature: Anti-Slip Tips Adjustable Legs (Y/N): Yes Handrail Construction: Steel Tubing
Includes: 2 Bolt-On Handrails
