EPC-40

Printer Friendly
Available
EPC-40
EPC-40 EPC-40 EPC-40 EPC-40 EPC-40

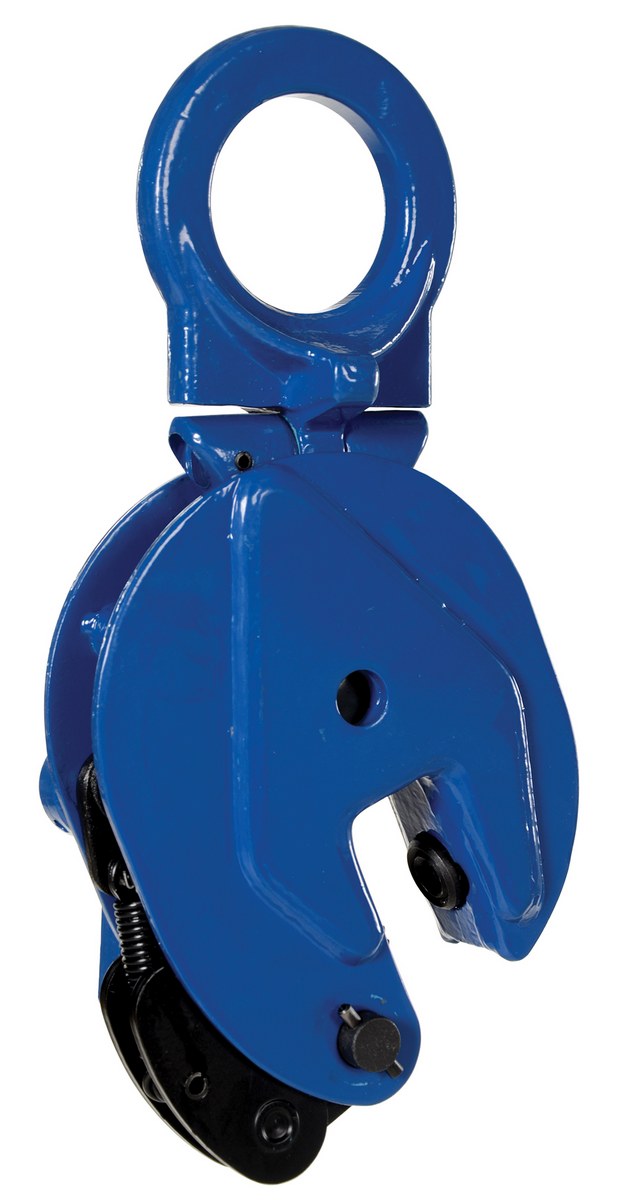

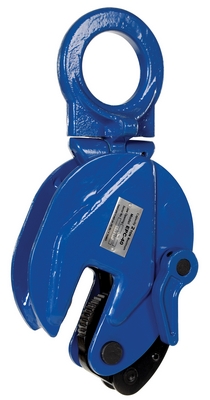

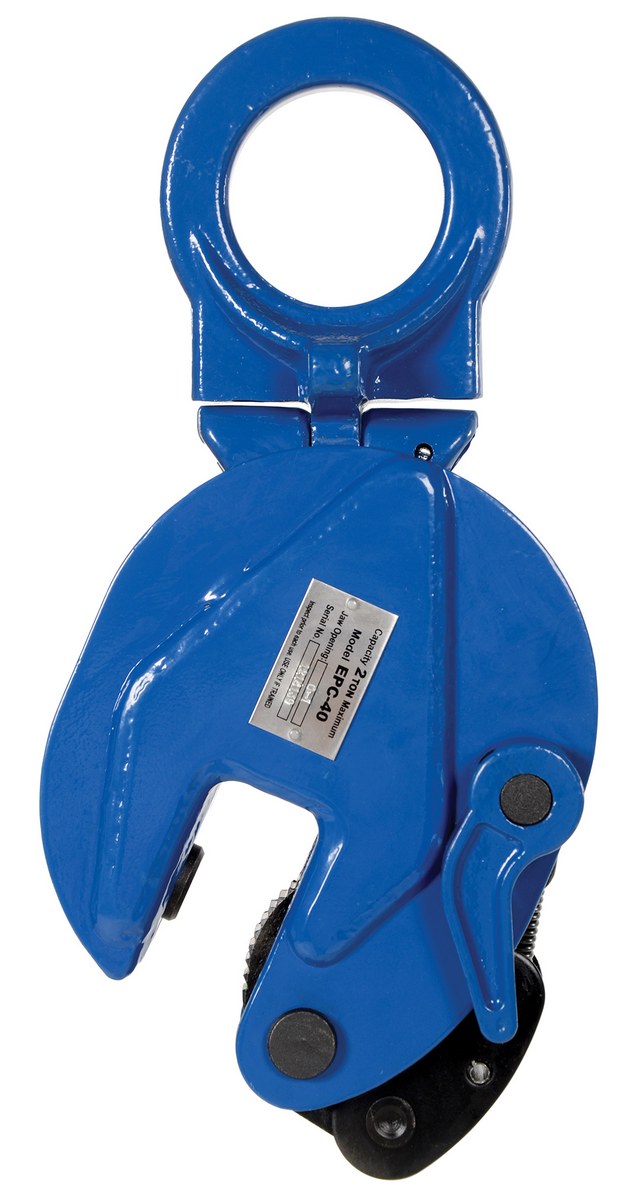

Steel Vertical Plate Clamp 4,000 Lb. Capacity Blue

The vertical plate clamp has a pivoting bale for easier and more versatile operation. Features include an automatic serrated hardened steel cams and pads and a drop-forged steel case for maximum strength. Warning: do not exceed the working load limit. Serious bodily injury or property damage may result. Lift only one clean and oil free plate at a time. Not designed to use on stainless steel or aluminum plates. For use with materials with a surface hardness of 30 RC (300 HB).

  • Pivoting bale provides more versatile operation
  • Drop-forged steel case provides maximum strength
  • Unique design lifts one clean and oil free plate at a time
  • Automatic serrated hardened steel cams and pads lock plate in place

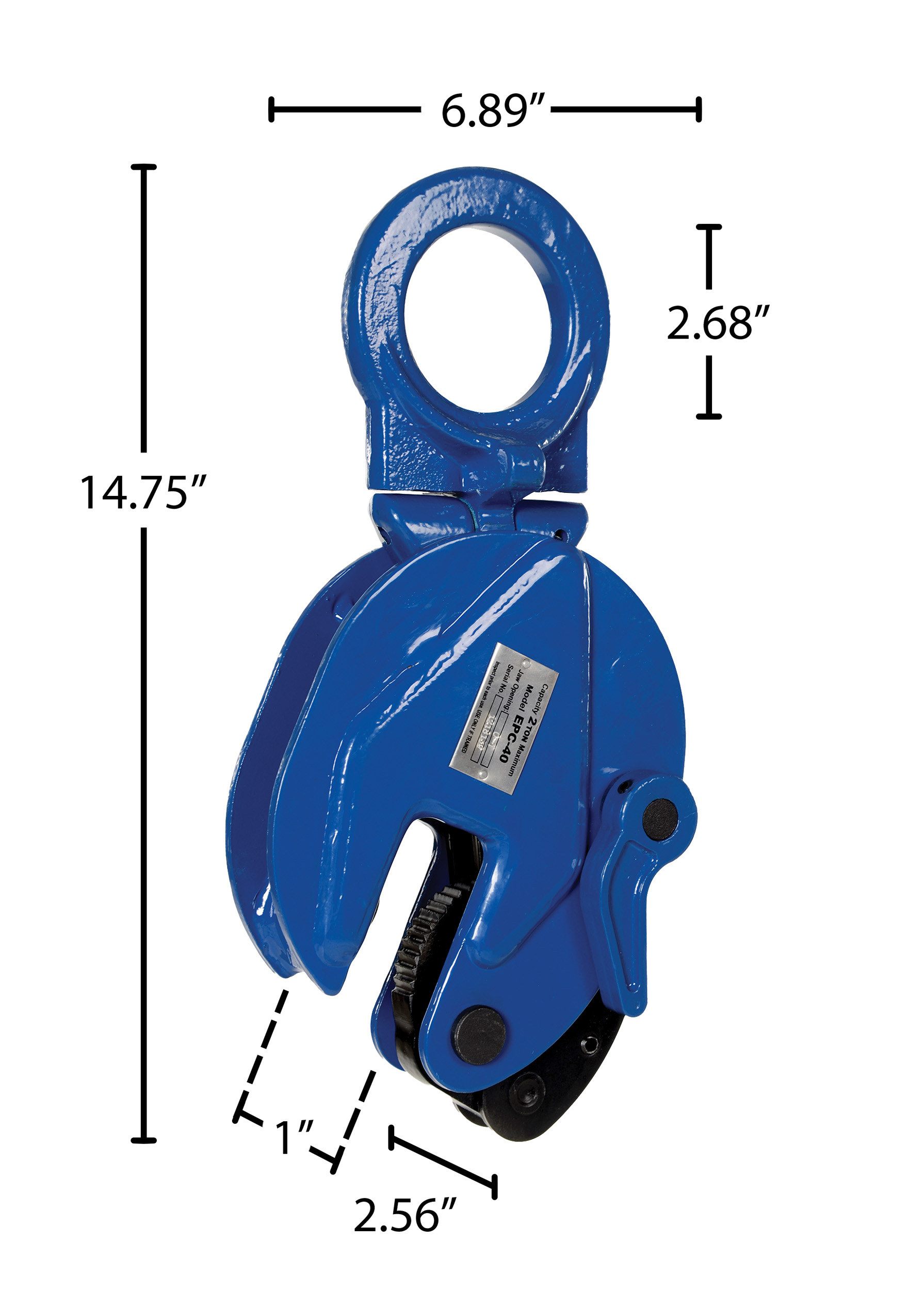

Assembled Wt.(lbs.): 17 Assembled Size: 2.56"W x 14.75"L x 6.89"H

Total Ship Wt.(lbs.): 17 (only 1 package) Package 1 Size: 8"W x 12"D x 5"H Color: Blue

Min Uniform Plate Weight (lb.): 800 Uniform Working Load Limit (lb.): 4,000 Throat Depth (in.): 2.9
Bale Opening (in.): 2-3/8 Minimum Plate Thickness (in.): 0 Maximum Plate Thickness (in.): 1

Quickship Item?

Quickship Item

Can It Ship UPS/FedEx?

Parcel - Can Go UPS

Image Gallery

PDF Documents

90 Days Limited Warranty

Details For Model: EPC-40
Available
EPC-40

Steel Vertical Plate Clamp 4,000 Lb. Capacity Blue

The vertical plate clamp has a pivoting bale for easier and more versatile operation. Features include an automatic serrated hardened steel cams and pads and a drop-forged steel case for maximum strength. Warning: do not exceed the working load limit. Serious bodily injury or property damage may result. Lift only one clean and oil free plate at a time. Not designed to use on stainless steel or aluminum plates. For use with materials with a surface hardness of 30 RC (300 HB).

  • Pivoting bale provides more versatile operation
  • Drop-forged steel case provides maximum strength
  • Unique design lifts one clean and oil free plate at a time
  • Automatic serrated hardened steel cams and pads lock plate in place
Dimensions: 2.56"W x 14.75"L x 6.89"H Sell UOM: -- Color: Blue
Material: -- UPC: -- GTIN: --
Warranty: -- Shipping Weight: 17 Quickship Item? --
Can It Ship UPS? -- Option? -- Origin: --
Assembly: -- Packaging: -- Drawing Required? --
Min Uniform Plate Weight (lb.): 800 Uniform Working Load Limit (lb.): 4,000 Throat Depth (in.): 2.9
Bale Opening (in.): 2-3/8 Minimum Plate Thickness (in.): 0 Maximum Plate Thickness (in.): 1
