LPC-60

Printer Friendly
Available
LPC-60
LPC-60 LPC-60 LPC-60

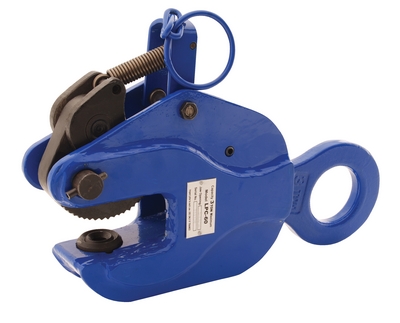

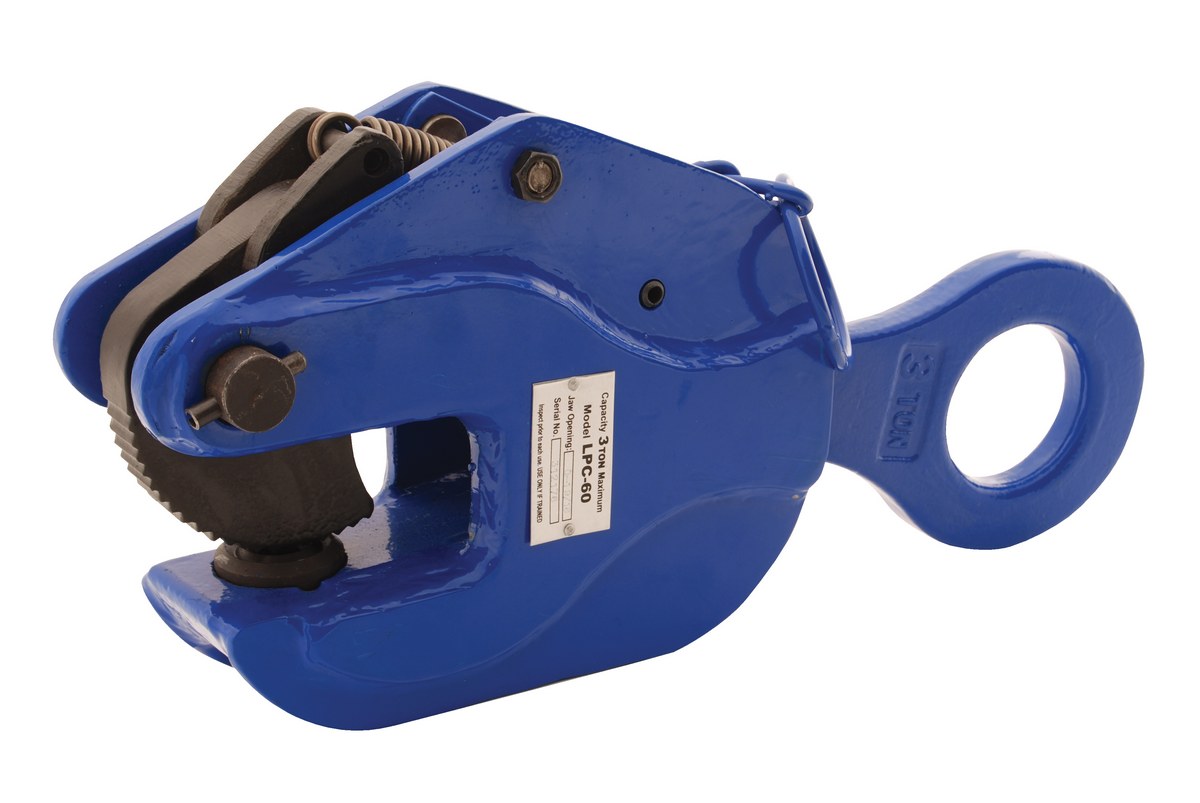

Steel Vertical Positive Locking Plate Clamp 15 In. x 4 In. x 8 In. 6000 Lb. Capacity Blue

The vertical positive locking plate clamp grips a sheet until release ring is pulled. Serrated gripper is hardened tool steel. Forged head and gear. Lift only one (1) clean, oil free plate at a time. Safety factor is 2 to 1. Not designed to use on stainless steel or aluminum plates. For use with materials with a surface hardness to 30 RC (300 HB).

  • Heavy-duty steel construction offers long lasting reliable use
  • Unique design lifts plate material in a vertical position
  • Locking mechanism offers maximum safety
  • Meets ASME B30.20 specifications

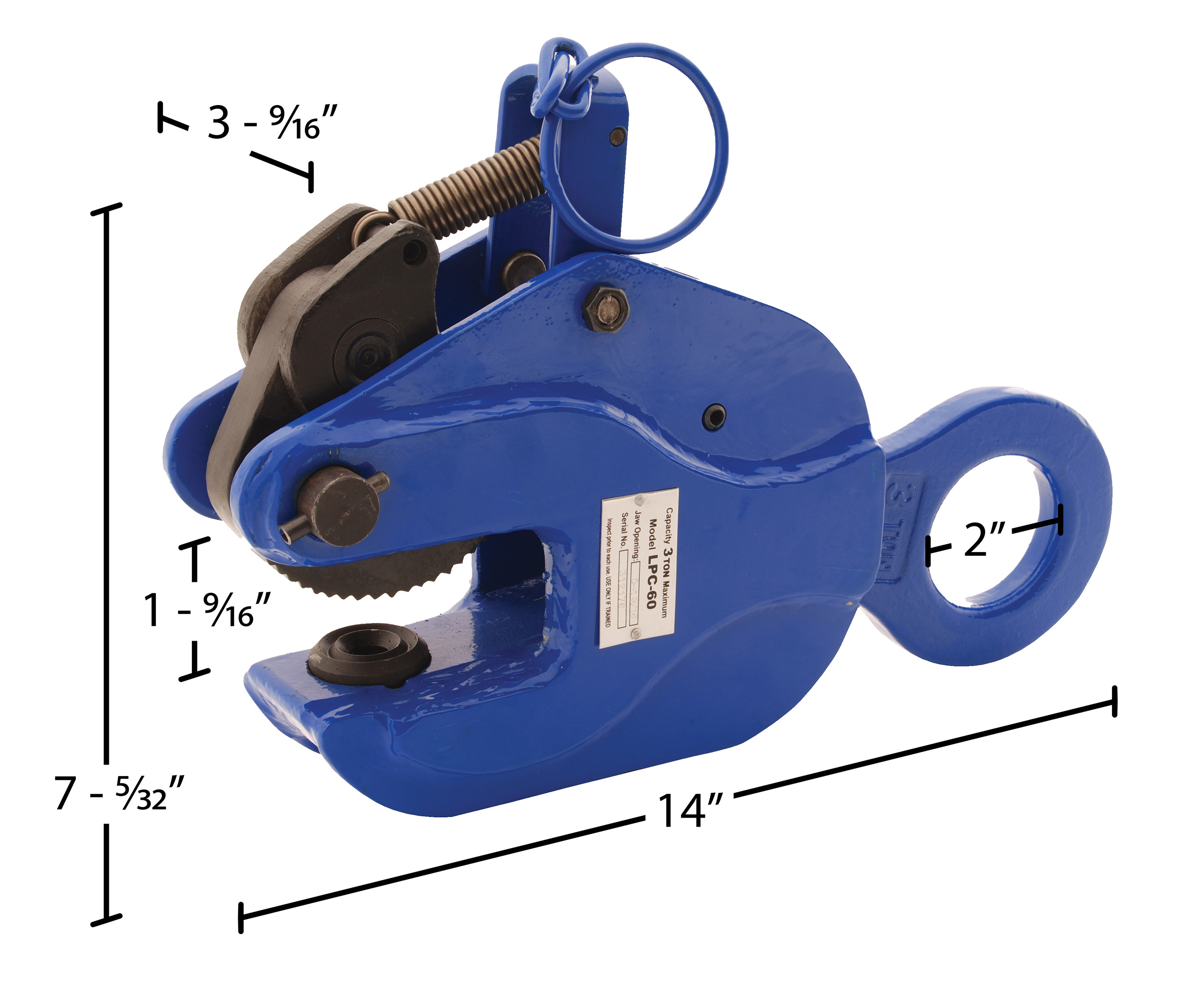

Assembled Wt.(lbs.): 20 Assembled Size: 4"W x 15"L x 8"H

Total Ship Wt.(lbs.): 21 (only 1 package) Package 1 Size: 11"W x 11"D x 8"H Color: Blue

Uniform Working Load Limit (lb.): 6,000 Min Uniform Plate Weight (lb.): 1,200 Minimum Plate Thickness (in.): zero
Maximum Plate Thickness (in.): 1.5625 Throat Depth (in.): 3.34 Bale Opening (in.): 1.9

Quickship Item?

Quickship Item

Can It Ship UPS/FedEx?

Parcel - Can Go UPS

Image Gallery

PDF Documents

90 Days Limited Warranty

Details For Model: LPC-60
Available
LPC-60

Steel Vertical Positive Locking Plate Clamp 15 In. x 4 In. x 8 In. 6000 Lb. Capacity Blue

The vertical positive locking plate clamp grips a sheet until release ring is pulled. Serrated gripper is hardened tool steel. Forged head and gear. Lift only one (1) clean, oil free plate at a time. Safety factor is 2 to 1. Not designed to use on stainless steel or aluminum plates. For use with materials with a surface hardness to 30 RC (300 HB).

  • Heavy-duty steel construction offers long lasting reliable use
  • Unique design lifts plate material in a vertical position
  • Locking mechanism offers maximum safety
  • Meets ASME B30.20 specifications
Dimensions: 4"W x 15"L x 8"H Sell UOM: -- Color: Blue
Material: -- UPC: -- GTIN: --
Warranty: -- Shipping Weight: 21 Quickship Item? --
Can It Ship UPS? -- Option? -- Origin: --
Assembly: -- Packaging: -- Drawing Required? --
Uniform Working Load Limit (lb.): 6,000 Min Uniform Plate Weight (lb.): 1,200 Minimum Plate Thickness (in.): zero
Maximum Plate Thickness (in.): 1.5625 Throat Depth (in.): 3.34 Bale Opening (in.): 1.9
